Project Overview
This case demonstrates how TFC Technology's M3/M4 Series Automated Connector System addresses critical testing challenges for Automotive Domain Control Units (DCUs), providing a comprehensive solution for intelligent vehicle brain and nerve center validation. Our high-density interconnection platform enables reliable testing of next-generation centralized E/E architectures.
Industry Challenges
● Signal Complexity: Multiple signal types with high channel counts creating complex interconnection layouts
● Customization Issues: Proprietary connectors and cables hindering modular management and future upgrades
● Performance Demands: Microsecond-level response requirements with real-time system support needs
● Testing Efficiency: Manual connection processes limiting throughput and increasing operational costs
Our Solution
M3/M4 Series Automated Connector Implementation
● Dual-System Architecture: M3/M4 series automatic connectors with interface transition from DCU panel to ITA

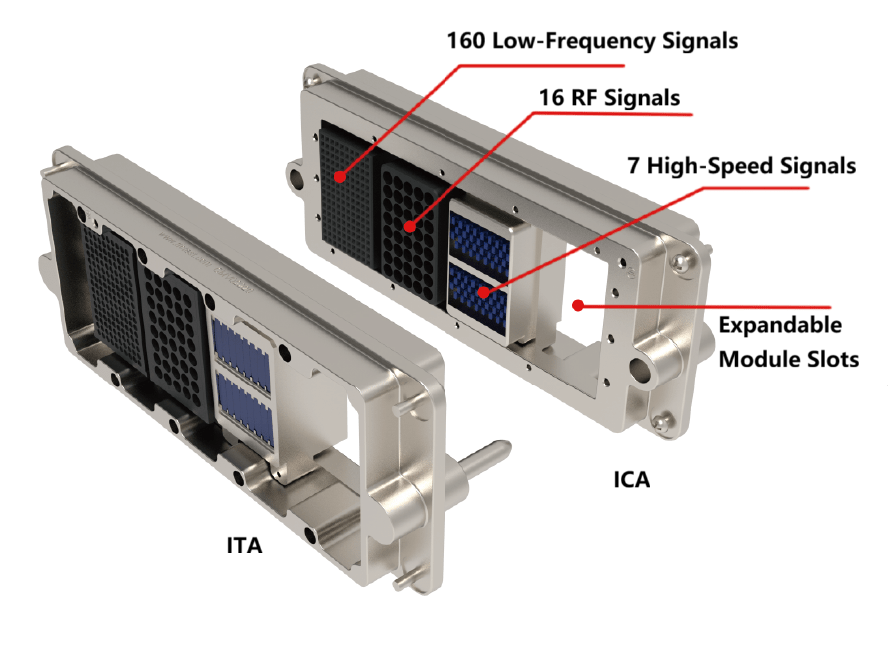

● Integrated Signal Handling: 160 low-speed/low-frequency signals, 16 RF signals, and 7 high-speed differential signals
● Comprehensive Signal Conditioning: Built-in capabilities for signal conditioning, impedance matching, level conversion, and signal routing
● Automated Operation: Robotic docking system enabling high-volume automated testing
Technical Advantages
● Multi-Signal Integration: Unified interface supporting mixed signals including power, coaxial, and high-speed differential
● High Bandwidth Capacity: Simultaneous debugging of multiple signal types through consolidated panel interface
● Precision Guidance: Advanced alignment system preventing misinsertion and ensuring testing accuracy
● Exceptional Durability: 100,000+ mating cycles significantly reducing maintenance requirements
● Modular Architecture: Quick-replacement modules facilitating easy maintenance and future upgrades
Application Results
The M3/M4 Automated Connector System delivers transformative benefits for automotive electronics testing:
● Streamlined Architecture: Simplified interconnection replacing complex custom wiring
● Enhanced Accuracy: Precision alignment ensuring reliable signal transmission
● Future-Proof Design: Modular system supporting evolving testing requirements
● Automation Ready: Seamless integration with robotic test equipment
Technical Specifications
● Connector Series: M3/M4 Automated Connector System
● Signal Capacity: 160 low-speed + 16 RF + 7 high-speed differential channels
● Mating Cycles: 100,000+
● Operation: Automated docking with precision guidance
● Modularity: Field-replaceable modules
● Applications: Functional, network, EMC, diagnostic, and security testing
Testing Coverage
▶ Functional Performance Validation
▶ Network Communication Testing
▶ Electromagnetic Compatibility (EMC)
▶ Diagnostic and Programming Verification
▶ Equipment Security Certification
