Project Overview
This case demonstrates how TFC Technology's CMM Modular Connector System enables fully automated, safe charging for industrial drones in harsh environments. Designed for Industry 4.0 and smart manufacturing applications, our solution addresses critical challenges in drone endurance, charging safety, and operational efficiency for inspection, security, and rescue missions.
Industry Challenges
● Limited Endurance: Frequent charging requirements disrupting operational continuity
● Environmental Harshness: Exposure to high temperature, humidity, and dust in industrial settings
● Contact Reliability: Poor connection interfaces leading to safety incidents including ● overcharging and short circuits
● Labor Costs: Manual charging processes increasing operational expenses
Our Solution
CMM Modular Connector System for Automated Drone Charging

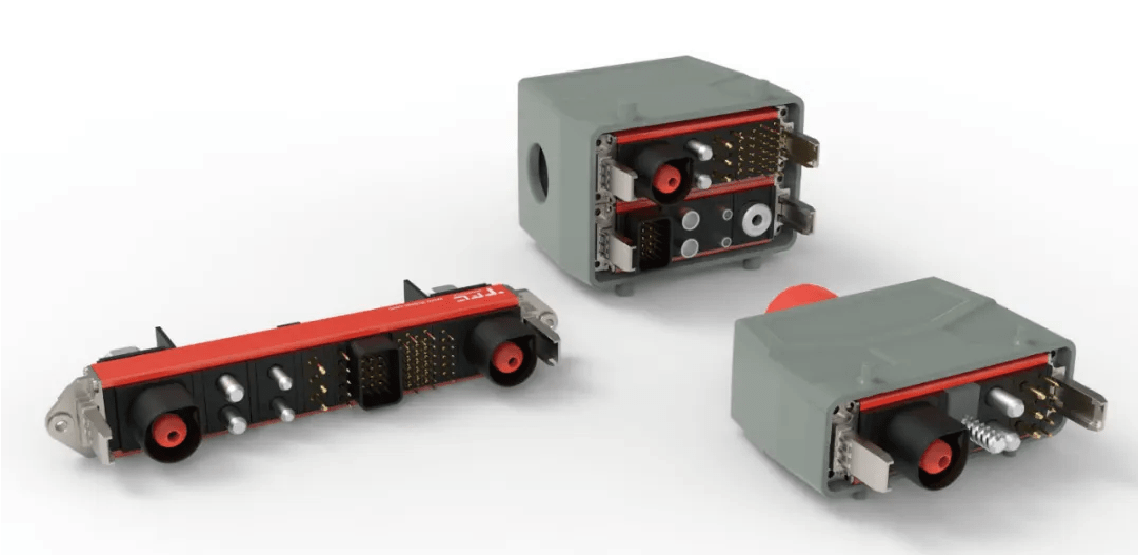

● Compact Docking Interface: CMM connector with receiver installed on drone underside and dock unit deployed in station
● Multi-Signal Integration: Simultaneous power transmission and data communication in single compact interface
● Automated Operation: Fully autonomous docking, charging, and disengagement sequence
● Environmental Hardening: IP67-rated construction for industrial deployment
Technical Advantages
● Space-Optimized Design: Compact footprint (width <35mm, length 18-180mm) reducing weight and power consumption
● Modular Flexibility: Configurable architecture supporting multiple drone models and customization requirements
● Dual-Mode Operation: Support for both automatic and manual docking with fast-charge capability
● Large Tolerance Compensation: 4mm alignment tolerance with automatic calibration, resistant to wind and environmental interference
● Multi-Signal Capability: Integrated power, signal, coaxial, and fiber optic contacts in unified framework
● Industrial Protection: IP67 rating ensuring reliable operation in demanding conditions
Application Scenarios

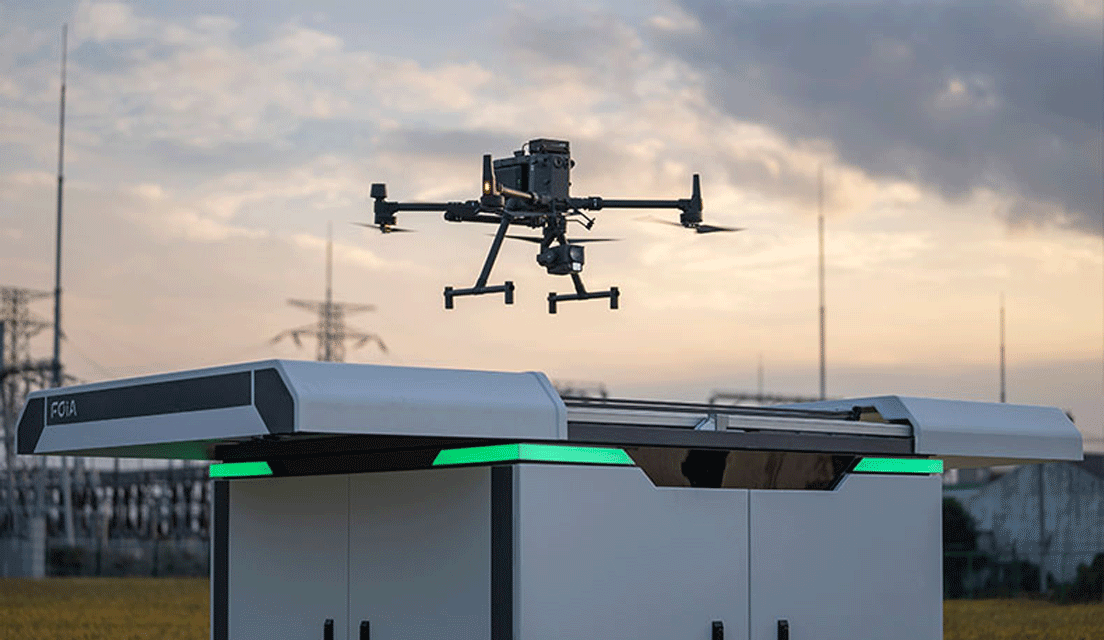

● Industrial Inspection: Automated charging for pipeline, power line, and infrastructure monitoring drones
● Security & Surveillance: Uninterrupted operation for perimeter security and emergency response UAVs
● Agricultural Monitoring: Continuous operation for crop monitoring and precision agriculture applications
● Search & Rescue: Reliable charging solutions for emergency service drones in challenging environments
Technical Specifications
● Connector Type: CMM Modular Connector Series
● Protection Rating: IP67 (Dust proof and waterproof)
● Operating Temperature: -40°C to +85°C
● Mating Cycles: 10,000+
● Alignment Tolerance: ±4mm automatic compensation
● Signal Integration: Power, data, coaxial, fiber optic
