Project Overview

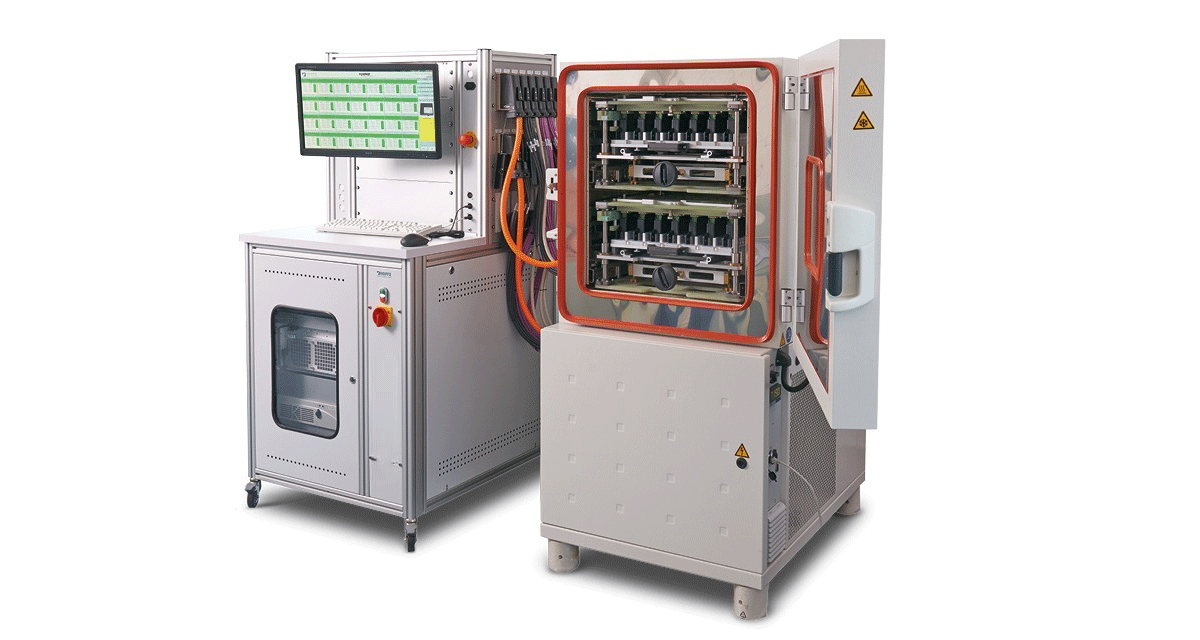

This case demonstrates how TFC Technology's rectangular handheld connector series revolutionized signal interface conversion in aerospace vehicle development, replacing traditional customized aviation plugs with standardized high-density connectors for control system testing and signal conversion applications.
Challenge
● Signal Complexity: Multiple bus protocols including RS232/422/485, 1553B, CAN, FC, plus analog and discrete signals requiring interconnection
● Interface Proliferation: Diverse connector types and custom cables leading to complex wiring layouts and maintenance difficulties
● Miniaturization Demands: Aerospace equipment trending toward compact designs with limited space for connector access
● Configuration Rigidity: Fixed pin assignments in traditional connectors hindering equipment upgrades and modifications
Our Solution
High-Density Handheld Connector Implementation

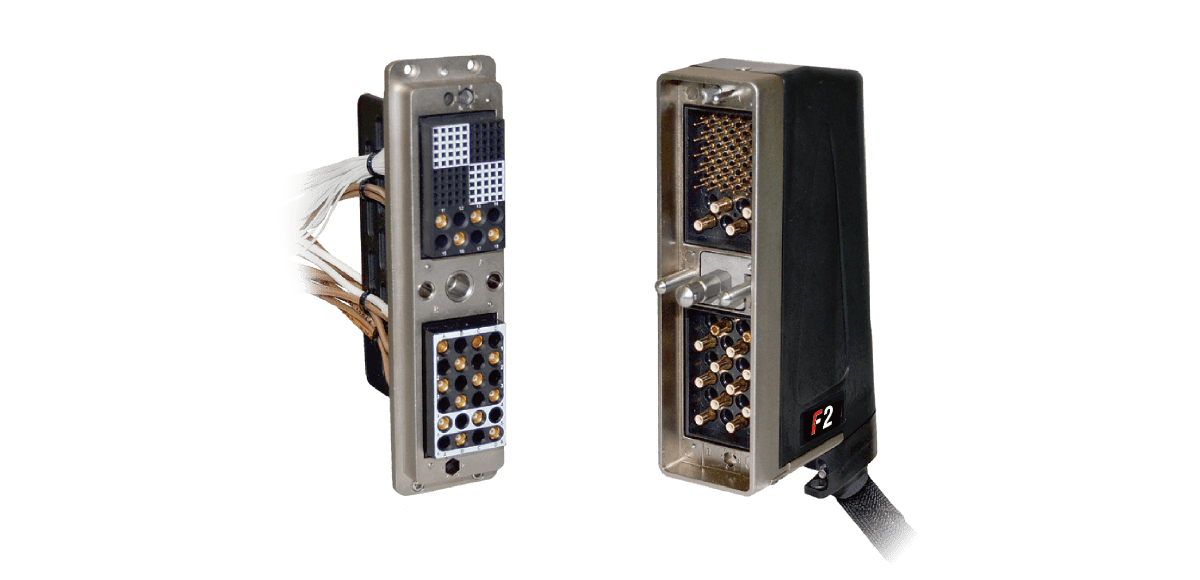

● Rectangular Handheld Series deployment replacing conventional aviation connectors
● Integrated Signal Conditioning: Built-in capabilities for signal conditioning, impedance matching, level conversion, and signal routing
● Modular Architecture: Flexible pin configuration supporting multiple signal types in compact form factor
● Quick-Reconfiguration Design: Removable rear housing enabling wire reassignment and pin definition changes
Technical Advantages
● Space-Optimized Design: Compact rectangular structure allowing side-by-side installation, maximizing space utilization in miniaturized equipment
● Multi-Signal Integration: Simultaneous transmission of mixed signals including standard/coaxial, power/coaxial combinations
● Field-Reconfigurable: Quick-disconnect rear assembly facilitates wire redefinition and connector reuse during equipment upgrades
● Standardized Interface: Unified connector platform eliminating custom cable requirements and reducing lead times
Application Results
The handheld connector solution delivered transformative benefits:
● Layout Simplification: 60% reduction in connection complexity compared to traditional aviation plug systems
● Maintenance Efficiency: 45% faster reconfiguration for system modifications and upgrades
● Design Flexibility: Pin definitions modifiable without replacing entire connector assemblies
● Cost Optimization: Reusable connector framework reducing recurring customization expenses
