Overview
As modern aerospace technology continues to evolve, aircraft engine controllers are becoming increasingly sophisticated. These controllers are responsible for critical functions such as fuel flow regulation, air mass flow control, engine monitoring, and safety management.
To ensure safe and reliable operation, every aircraft engine controller must undergo rigorous validation and functional testing before deployment.
For aerospace manufacturers, the challenge lies in building a flexible Aircraft Engine Controller Testing platform capable of supporting multiple controller models while maintaining high testing accuracy and reducing overall testing costs.
This is where a robust PXI Test System and Mass Interconnect System become essential.
Challenges in Aircraft Engine Controller Testing
A leading aerospace customer faced several challenges when developing an Aircraft Engine Controller Testing platform:
1. Microsecond-Level Response Requirements
Aircraft engine controllers require extremely fast response times.
The Automated Test Equipment must accurately simulate real-world operating conditions while providing deterministic timing and real-time feedback.
2. Large Number of High-Precision Signals
Modern engine controllers process:
Analog signals
Digital I/O
Resistance signals
Sensor simulation signals
Communication bus signals
Managing these signals within a PXI Test System requires a highly organized and scalable architecture.
3. Multiple Controller Variants
Different aircraft programs often use different controller designs.
Traditional test benches require extensive rewiring and engineering effort whenever a new controller model is introduced.
This significantly increases maintenance costs and testing downtime.
Solution: V50 Mass Interconnect Platform for ATE Test Equipment Interface
To address these challenges, Tengfang Zhongke developed a universal ATE Test Equipment Interface based on the V50 Mass Interconnect System.
PXI Test System Architecture
The instrument side utilizes:
Two NI PXIe 18-slot chassis
Data Acquisition (DAQ) modules
Waveform Generators
Switching Modules
Digital Multimeters
Resistance Simulation Modules
The system adopts a Host-PC and Real-Time Controller architecture.
The real-time controller communicates through MXI technology, ensuring deterministic performance for Aircraft Engine Controller Testing.
Universal Mass Interconnect System

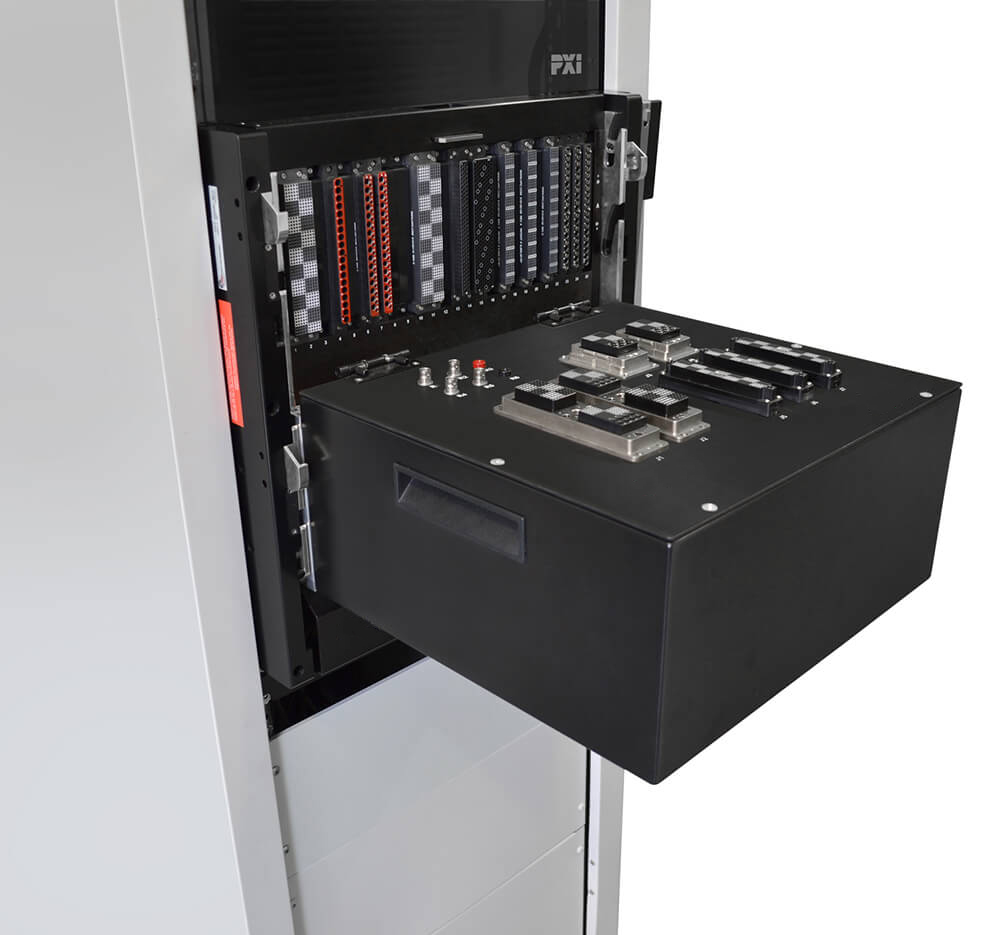

The V50 Mass Interconnect System acts as the central ATE Test Equipment Interface.
All PXI Test System resources are routed through a standardized interface platform.
Different aircraft engine controllers can be tested simply by replacing dedicated adapter modules rather than redesigning the entire testing setup.
Key Advantages of the V50 Mass Interconnect System
Universal Testing Platform
The V50 provides up to 50 modular positions, allowing all PXI Test System resources to be integrated into a single Mass Interconnect System.
Benefits include:
Standardized architecture
Simplified maintenance
Faster deployment
Reduced engineering effort
Rapid Adaptation to New Programs
For new Aircraft Engine Controller Testing requirements, engineers only need to develop a dedicated adapter.
The core Automated Test Equipment and PXI Test System remain unchanged.
This dramatically shortens project implementation cycles.
Long Service Life
The V50 Mass Interconnect System is designed for high-cycle aerospace applications.
Features include:
More than 20,000 mating cycles
Stable signal transmission
High mechanical reliability
Low maintenance requirements
Reduced Total Cost of Ownership
By standardizing the ATE Test Equipment Interface, aerospace manufacturers can:
Reduce fixture redesign costs
Minimize downtime
Improve test efficiency
Increase equipment utilization
Results
After deployment, the customer achieved:
✔ Faster Aircraft Engine Controller Testing setup
✔ Reduced engineering modification time
✔ Improved PXI Test System utilization
✔ Simplified maintenance procedures
✔ Enhanced testing reliability and repeatability
✔ Lower lifecycle costs for Automated Test Equipment
The V50 Mass Interconnect System has become the foundation of a scalable aerospace testing platform capable of supporting future controller programs.
Why Choose Tengfang Zhongke?
Tengfang Zhongke specializes in:
Mass Interconnect System Solutions
PXI Test System Connectivity
Automated Test Equipment Interface Design
Aerospace Testing Applications
High-Density Modular Interconnect Platforms
Our solutions help aerospace manufacturers build flexible, scalable, and future-ready Aircraft Engine Controller Testing platforms.
Looking for a Reliable Aircraft Engine Controller Testing Solution?
Whether you are developing a new PXI Test System or upgrading an existing Automated Test Equipment platform, Tengfang Zhongke can help you implement a high-performance Mass Interconnect System tailored to your requirements.
Contact our engineering team today to discuss your aerospace testing project.
