Product Overview
The JSCM202 Dual-Axis Inclination Sensor is a precision sensor product that enables accurate and reliable measurement of tilt angles against the horizontal plane. It uses advanced MEMS accelerometer technology to detect and convert the static gravitational field at the sensor position into inclination readings. The output can be real-time data that is set up by means of configurable communication standards like 0-5V analog voltage, RS232, RS422, RS485, or CAN. Therefore, constructed to be strong and easy to work with, this unit is a perfect industrial gear and platform attitude measurement tool that merges high-quality performance with toughness under severe working conditions.

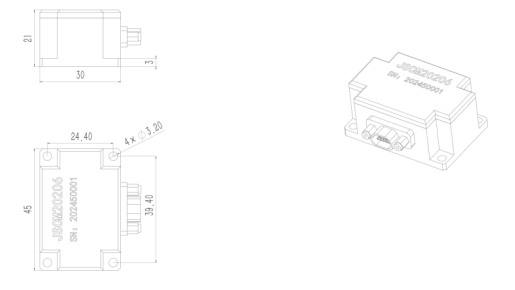

Product Dimensions
Technical Advantages
● High Accuracy & Stability: This product leverages a silicon piezoresistive MEMS accelerometer to deliver very precise measurement, which can be user-selected within a range of ±10° to ±90°. Due to its very high sensitivity of 1000±1mV/g, it is capable of finding the tiniest changes of its angle, thus providing the same level output of high quality. Additionally, its architectural setup enables the reduction of errors resulting from external factors.
● Durable Design Meets Harsh Usage: A structurally strong aluminum alloy case encloses the sensor, which makes it extremely resistant to both shocks and vibrations, enabling it to handle an impact as high as 2000g. The thus makes the device perfectly compatible with tough industrial environments such as construction machinery and moving vehicles.
● Innovative Measurement Method & Integration Made Easy: With the non-contact measurement technology, there are no mechanical components experiencing wear, thus the performance stability and reliability over a long period are guaranteed. Besides, it has a small form factor and multiple output signals for easy installation and integration into existing systems.
● Outstanding Climatic Handling Ability: It is built to work without fail even under very harsh environmental conditions and has very low susceptibility to external electromagnetic interferences, thus it can always count on its constant performance even in complicated industrial surroundings.
Core Applications
Attitude measurement and control are not only key components but also the leading reason for the extensive and varied application of JSCM202 in different industries and areas:
● Industrial Machinery & Automation: Here, platform tilt angle measurement is used for different things like leveling, locating, and positioning the robotic arm, and automatically guided vehicles (AGVs).
● Construction & Heavy Equipment: Safety and stability during the working of cranes, aerial work platforms (AWPs), and excavators are secured through real-time monitoring of the incline.
● Transportation & Vehicle Systems: Besides these sectors, it also embraces the sensing and control of the attitude of agricultural, forestry machinery, and fleet vehicles.
●Energy Sector: It can be compared to a middleman whose job is to check the proper orientation of solar panels in solar tracking systems and detect the instruments at wind power plants.
Perfessional Services
Customized inclination sensor solutions are available from us that precisely meet your application requirements. We provide output configuration flexibility, mechanical adaptations, as well as technical support to help you get the best results from integration and performance.
Performance Specifications
Unless otherwise specified, all testing was conducted under the following conditions: 12 VDC, 25°C, 50% R.H., and 1 standard atmosphere.
| No. | Parameter | JSCM202-10 | JSCM202-30 | JSCM202-60 | JSCM202-80 | Unit |
| 1 | Measuring Range | ±10 | ±30 | ±60 | ±90 | ° |
| 2 | Sensitivity (Voltage Output) | 1000±1 | mV/g | |||
| 3 | Bandwidth | 20 | Hz | |||
| 4 | Accuracy | 0.03 | 0.05 | 0.06 | 0.08 | ° |
| 5 | Resolution | 0.01 | 0.01 | 0.02 | 0.03 | ° |
| 6 | Zero Temperature Coefficient | 0.006 | °/℃ | |||
| 7 | Sensitivity Temperature Coefficient | 100 | ppm/℃ | |||
| 8 | Current Consumption | 30mA (Typ.) / 50mA (Max.) | ||||
| 9 | Start-up Time | 1 | s | |||
| 10 | Excitation Voltage | Typical: +12VDC; Range: +10VDC ~ +30VDC | V | |||
| 11 | Output Options | 0-5V Voltage Output : RS232/RS422/RS485/CAN | ||||
| 12 | Housing Material | Aluminum Alloy | ||||
| 13 | Shock Resistance | 2000g, Any Axis | ||||
| 14 | Mounting | M3 Screw Mounting | ||||
| 15 | Isolation | No Case Isolation | ||||
| 16 | Weight | 60 | g | |||
| 17 | Temperature Range | Operating: -40℃ ~ +85℃ | ℃ | |||
FAQ
1. Q: What's the main advantage of MEMS technology for tilt measurement?
A:MEMS enables non-contact measurement that results in no mechanical wear and, therefore, long-term reliability. Apart from that, it has high accuracy, a small size, and very good shock, vibration, and electromagnetic interference resistance.
2. Q: Which output type should you choose for your application?
A:If you want to connect the sensor to a PLC, then you can use the 0-5V analog output, which is a pretty much plug-and-play solution. On the other hand, if you have to deal with a noisy environment or you are going to design a multi-sensor network, then going for RS-485/CAN would be the right decision. Finally, if you are planning to have a direct cable connection with the computer, RS232 can be the way to go.
3. Q: How to select the right measuring range (±10° to ±90°)?
A:Leveling in a very precise manner can be done only at ±10°;±30°-±60° are good ranges for general equipment monitoring;If you want to measure the tilt of your vehicle or construction machines, then go for ±90°.
4. Q: What does the 2000g shock resistance mean for real-world use?
A:With this level of shock resistance, the sensor can still work accurately after being subjected to shocks and strong vibrations, which is typical in industrial environments such as the operation of construction machinery, vehicle monitoring, and heavy equipment.
5. Q: Why is case isolation important?
A:The insulated casing guarantees that there will be no ground loops, which, in turn, result in interference-free, stable readings
