JSPR-A0 High-Precision Silicon Resonant Pressure Sensor
Product Overview
The JSPRA0 is a high-precision pressure sensor that meets the requirements of harsh industrial environments where high accuracy and long-term stability are essential. Thanks to the integrated silicon resonant sensor core, these features are possible. With an overall accuracy of only ±0.02% FS over a wide temperature range and an annual stability of up to ±100 ppm FS, it is a precision pressure measurement solution that you can rely on even in tough environments. Besides that, the onboard state-of-the-art signal processing unit offers a full temperature compensation feature, and user systems can easily connect to standard current, voltage, or digital outputs.

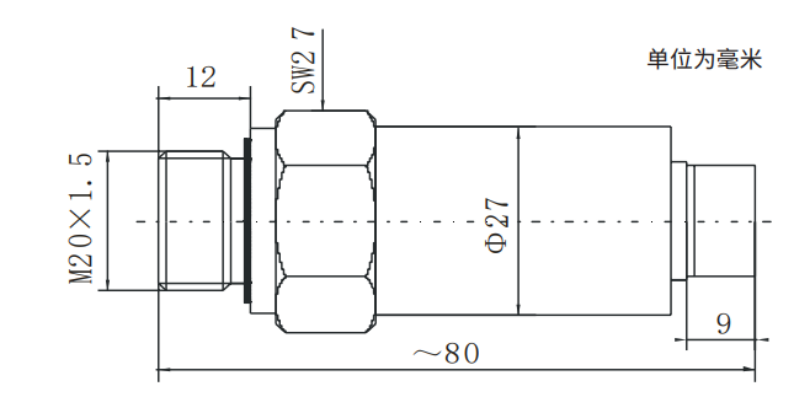

Product Dimensions
Technical Advantages
● High Accuracy: The sensor can reach an accuracy up to ±0.02% within the entire range of temperature compensation. This is exactly the level of accuracy required for high-precision pressure sensing in calibration systems and process control.
● Fast Dynamic Response: Sensor downtime in pressure change detection is <300 milliseconds after a pressure change.
● Excellent Long-Term Stability: A stability level of ±100 ppm FS/year implies that the sensor requires very few recalibrations, which leads to lower operating costs.
● Superior Overpressure Protection: The sensor is capable of handling a pressure of 1.5 times the full-scale pressure without any harm. This makes it very tough, especially in situations where such characteristics are crucial, for example, in outdoor applications.
● Silicon Resonant Sensor: Compared with the traditional piezoresistive sensors, silicon resonant sensors provide advantages like high-frequency response and low drift, thus are superior to piezoresistive sensors in these aspects.
Core Applications
● Calibration Equipment and Standards: Provides the exact accuracy required by calibration standards for laboratory and industrial calibration.
● Process Control Systems: Perfect for pressure monitoring with extreme accuracy in the pharmaceutical, semiconductor, and energy industries.
● HVAC and Energy Management: An effective instrument for handling measurement in heating, ventilation, and fluid control systems.
● Aerospace and Automotive Testing: During the R&D and validation stages, it allows generation highly detailed data.
Performance Specifications
All tests were run under the following conditions unless specified otherwise: 12 VDC, 25°C, 50% RH, 1 standard atmosphere.
| NO. | Technical Parameter | Specification |
| 1 | Range | Absolute Pressure: 0 to 0.2, 0.7, 1.4, 2.0, 3.5, 7.0, 10.0, 20.0 MPa |
| 2 | Overpressure | ≤ 1.5 x Full Scale Pressure |
| 3 | Pressure Type | Absolute Pressure |
| 4 | Accuracy | ±0.02% FS |
| 5 | Response Time | < 300 ms |
| 6 | Long-Term Stability | ≤ ±0.02% FS/Year (max.) |
| 7 | Protection Rating | IP65 |
| 8 | Compensated Temperature | -40°C ~ +85°C |
| 9 | Operating Temperature | -40°C ~ +85°C |
| 10 | Power Supply | +9 VDC ~ +28 VDC |
| 11 | Output Signal | RS485 / RS232 / CAN (Selectable) |
| 12 | Electrical Connection | Cable, Aviation Connector |
| 13 | Measuring Medium | Fluids compatible with 316L Stainless Steel & Hastelloy C276 |
FAQ
1. Q: What is the main factor of this sensor being able to achieve ±0.02% FS accuracy?
A:The main factor is that it features a silicon resonant sensing core that allows it to have a level of accuracy and excellent stability far beyond that of the traditional piezoresistive or capacitive technologies sensors.
2. Q: What does ±100 ppm FS/year stability mean practically?
A:Such an extraordinary long-term stability is far enough to be combined with the extension of calibration intervals (typically 24-36 months), thus leading to a reduction of maintenance costs and ensuring measurement reliability in critical processes.
3. Q: Where do you need such precision?
A:It can be considered necessary for the calibration standards, test benches, pharmaceutical manufacturing, and precision process control, where the slight pressure variations may still have a great impact on the product quality or system performance.
4. Q: What is the reason the digital outputs (RS485/RS232/CAN) are the preferred ones when it comes to this sensor?
A:The digital interfaces offer
communication that is noise-immune and also the direct network integration, which advantages the sensor's high accuracy preservation without signal degradation even at long distances.
