• Accuracy: < 0.1% F.S. • Excitation Voltage: 5 - 15 V DC • Full-Scale Deflection: < 0.3 mm • Selectable Range: 0.1 - 20 kN • Technology: Silicon Piezoresistive • Housing: Stainless Steel
- 304 stainless steel monolithic housing - Amplitude-frequency response up to 10,000 Hz - 10,000g shock resistance on any axis - Selectable measurement range: ±50g to ±500g - MEMS variable capacitance technology - Lightweight: 15g
Accuracy: ±0.02% span over the temperature range Response Time: 300 milliseconds or less Long-term Stability: ±100 ppm FS/year Measurement Range: 0-20 MPa (selectable) Sensing Technology: Silicon resonant sensor Overpressure Tolerance: 1.5 times the full-scale pressure

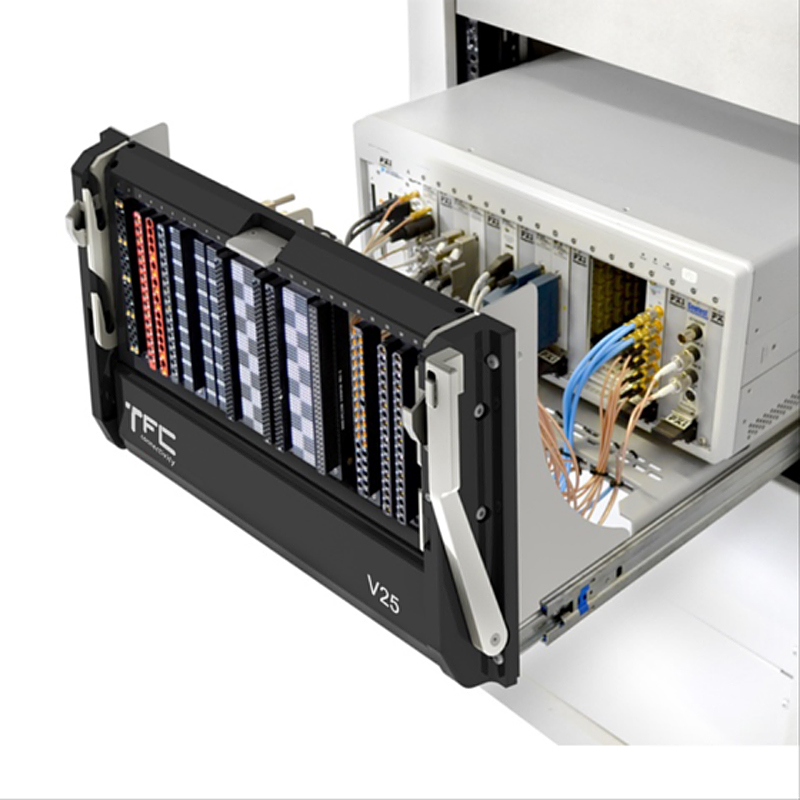

The V25 Series is a collection of interconnection solutions featuring 25 V-series modules that offer high reliability. The system can handle a maximum of 5,900 signal channels and is highly adaptable in terms of I/O type selection. Additionally, when custom cables are used, signal points can be terminated directly to instrument boards or cards.
The wire-spring high-density connector is a rectangular, high-density modular solution that combines signal, power, and coaxial contacts. To fulfill the exact requirements in tough surroundings—especially cases of prolonged exposure to vibration and high service life demands—this connector series features an EMI shielding outer housing. The camshaft inside the housing, capable of 180° rotation, also has anti-reversal and coding functions that ensure dependable mating and unmating over a long time.
The CMW industrial rectangular connector is a perfect fit for situations where the combination of electric signal, power supply, coaxial signal, and gas connection is needed. The component can be plugged and unplugged for up to 100,000 times and can be assembled in a few minutes without the need for any special tools. In particular, for those application scenarios which involve a great number of low power and signal modular connectors, CMW multi-type hybrid connectors are the right choice from the cost point of view.
Due to their unique design and fast crimping operation, the CMZ series Handheld connectors are the most economical and dependable I/O signal connectors which have a great performance in the present market. ZIF Connectors, 10,000 times of insertion and removal, 156 pins high-density, high cost performance.
LFH200 , along with its matching cable, is a high-density connector specially made for PXI modular test systems. The main application is to connect switching modules to the equipment under test (EUT), thus enabling high-speed signal transmission and high-density channel expansion.
A break-connect block socket with a 6mm pitch is featured with 20 contact points and 2mm banana jacks. The device has a rated current of 10A and a withstand voltage of 2000VAC, an excellent choice for testing fault input terminals in test systems; together with banana plugs, it can be installed in a wire break test box for use.
The J599MT (GYM) series optical fiber connectors, as panel-mounted circular connectors, can be used in optical communication scenarios in a harsh environment, for instance, aerospace. With high-density MT contacts as the core, they realize multi-channel transmission and have the structural stability of circular connectors. The blind insertion error-proofing design is one of the features of the connectors, and they are also heat-resistant and corrosion-resistant, thus, can provide reliable high-density optical connection support for the equipment.

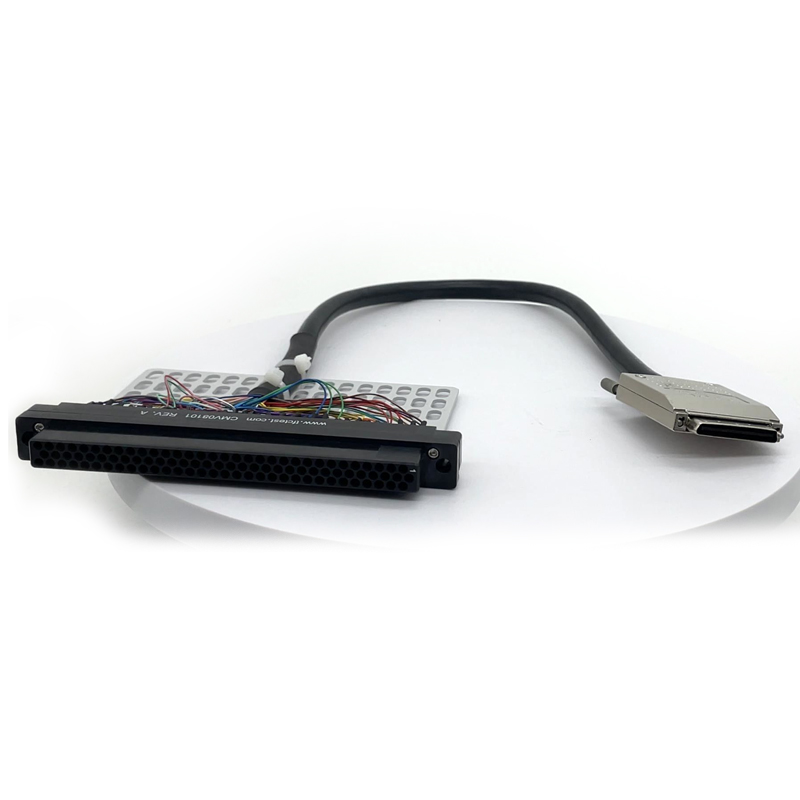

TFC offers excellent PXI-compatible cable assemblies which can be used for ICA/ Qua/ TRI/ coaxial modules. The wiring harness assembly can be customized to anyone's requirement. The options include 68-pin connectors such as VHDCI68 and SCSI68, as well as SMB connectors that are suitable for digital /RF mixed-signal test systems. Such a board card assembly has become the standard modular components at TFC. Cable assembly specifications: Operating voltage 30V, standard length 0.5m, contacts are gold-plated (copper/beryllium copper), low resistance (≤35mΩ/≤25mΩ), "mass interconnection" type.
CMZ series PCB version Low Insertion Force Connector, 156-pin high-density I/O connector, insertion and extraction life over 10,000 times, operating current ≤5A, voltage resistance 1200VAC.
