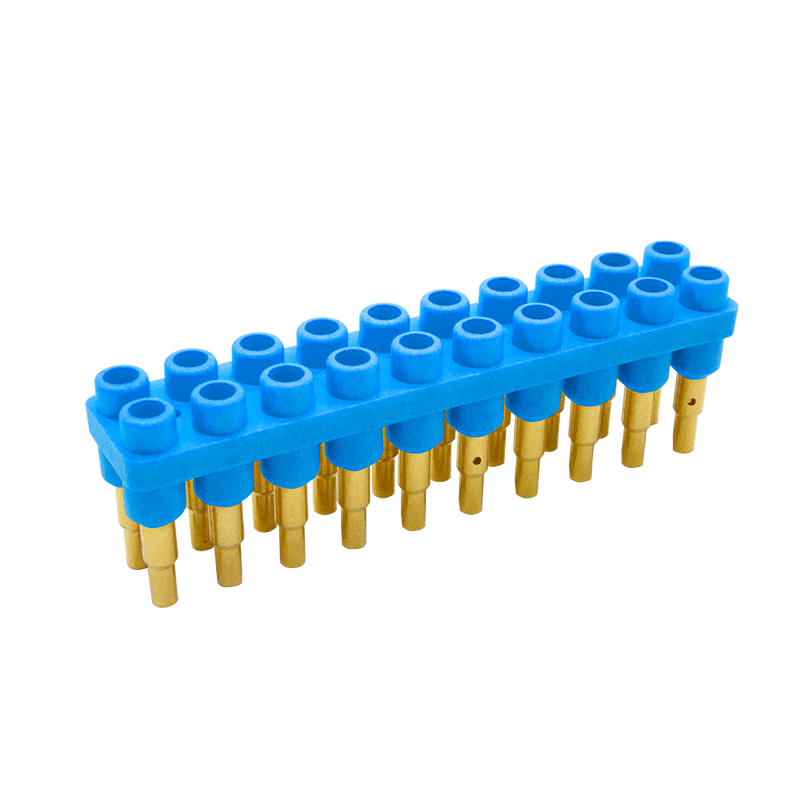

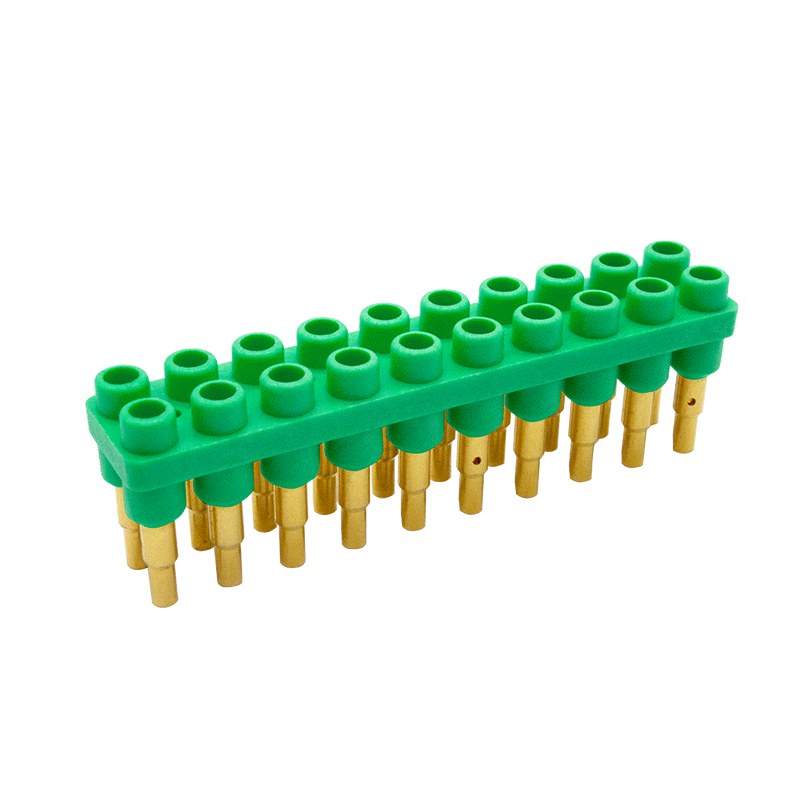

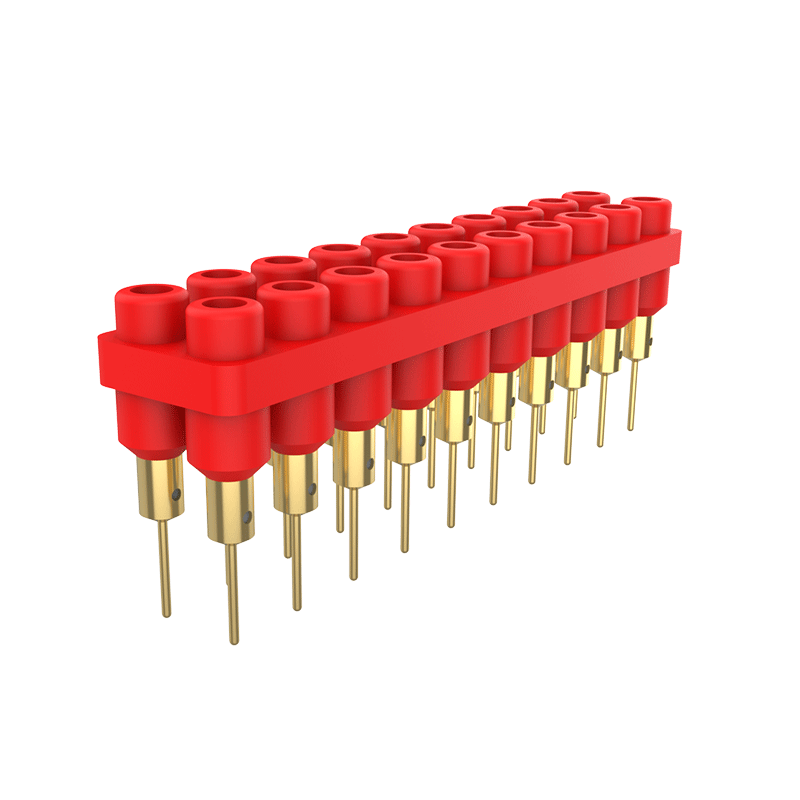

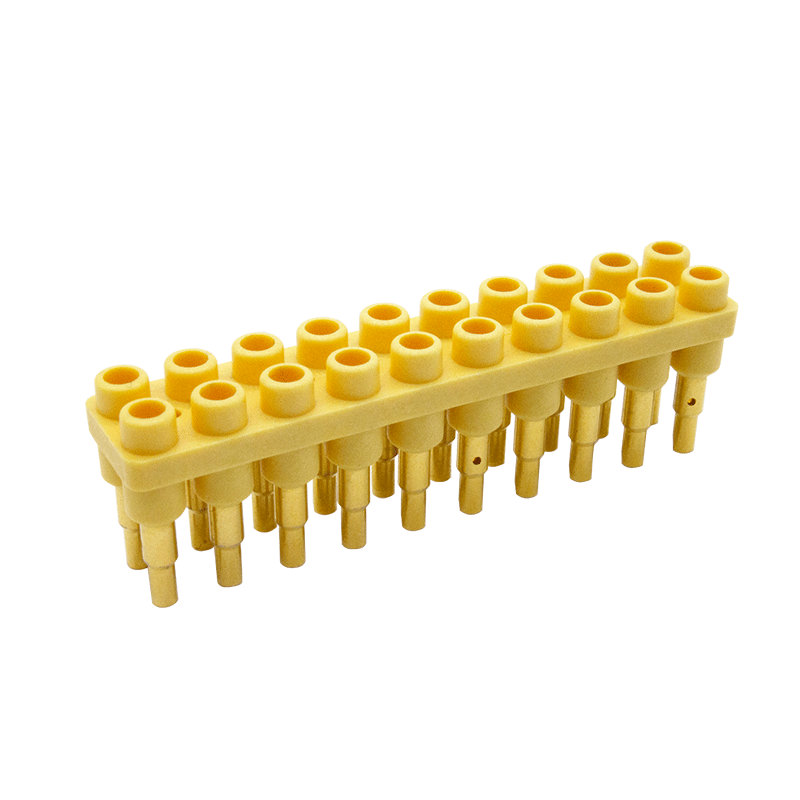

CMC170100-01/02/03/04/05 (Black/Red/Blue/Yellow/green)
20P disconnected block socket, 6mm pitch
Main Technical Index
Pin | Gold-plated copper, 3μ~5μ |
Appearance | One-piece injection molding |
Material | PA66 |
Rated Current | 10A |
Withstand Voltage | 2000VAC |
Insulation Resistance | 5000MΩ |
Operating Temperature | -40℃ ~ +85℃ |
Contact Resistance | ≤ 1.5mΩ |
Insertion and Extraction Force | ≤14N within the life cycle |
Lifespan | ≥10000 |
Flammability Rating | UL94-V0 |

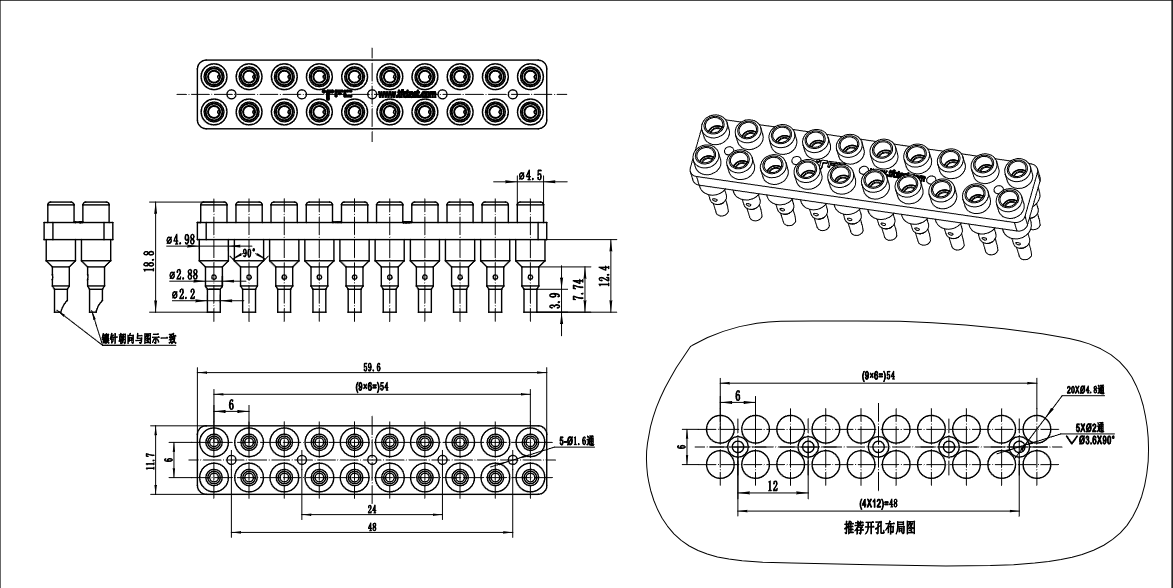

Banana socket 2D Drawing

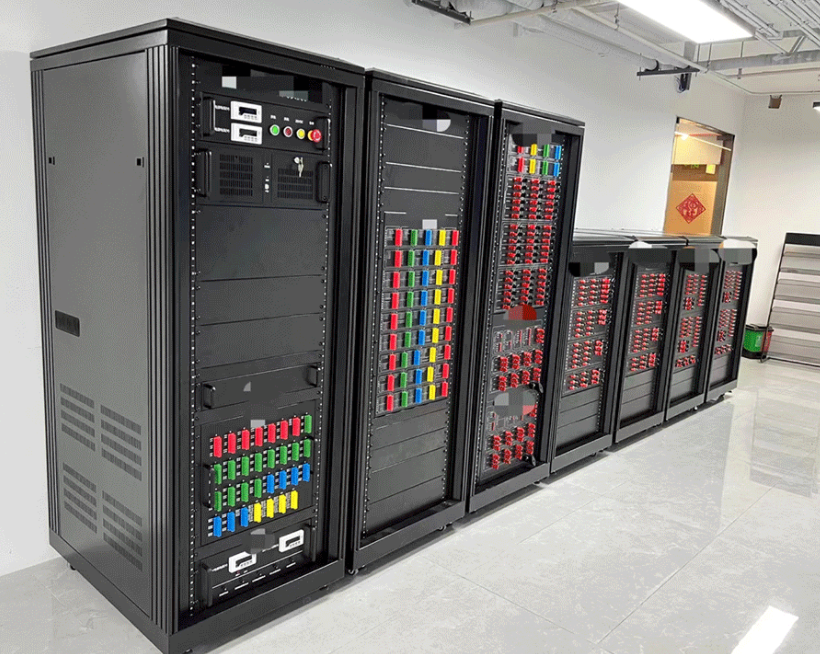

Advantages of banana socket applications
About Us
Founded in Changsha in 2015, TFC is a national high-tech enterprise that concentrates on one-stop interconnection solutions and lives up to the mission "Making connections simpler".
The company, which integrates R&D, production, and sales, enjoys a fully independent R&D system and a professional team. TFC, whose work is centered on interconnection technology innovation, is committed to producing high-density, high-speed, and anti-interference interconnection products, with complete R&D capabilities covering scheme design, prototype development, and technical verification; thus, it is always breaking the core technical bottlenecks to facilitate the user-customized solutions.
Besides, TFC is the manufacturer of core products like massive interconnection products, high-density connectors, PXI cable harnesses, etc., as well as providing customization of cable and interconnection solutions. The company is notable for its quality management system ISO9001 and also military qualifications.
As such, TFC's products can be extensively utilized in the fields of aerospace, national defense, automotive electronics, semiconductors, and others.
Product production

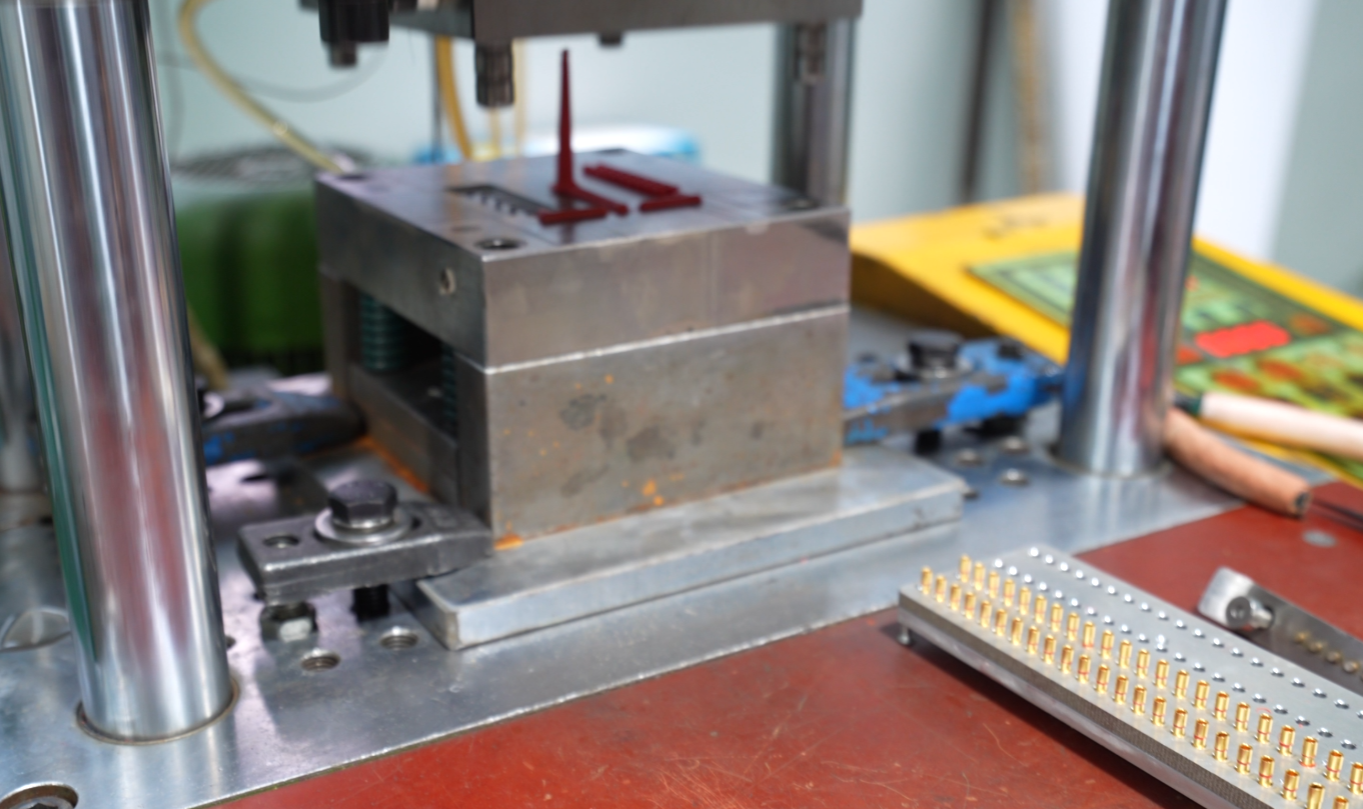

The production of TFC products is done independently and they make use of high-precision integrated molding technology.
The process is fully supported by a quality inspection system. In other words, we are in full control of all the key stages from manufacturing through molding to the final quality check.
Such thorough control at end-to-end stages ensures great quality and consistent reliability, which leads to dependable performance and delightful experiences.
FAQ
Question: How is the disconnection block connected?
Answer: The disconnection blocks come in two varieties: normal and PCB type. The normal type is wired by direct soldering, whereas the PCB type is directly soldered on the PCB.
Question: How many paths are there for the disconnection block? How many plugs come with it generally?
Answer: A disconnection block socket is made up of 20 points and is normally provided with 10 plugs, the number of paths being calculated as 10.
Question: How is the disconnection block seat fixed?
Answer: The 6mm pitch disconnection block seat is going to provide an appropriate opening pattern, and it is advised to fix it with M2x8 self-tapping screws.
Question: What are the socket dimensions of the disconnection block seat?
Answer: The socket is compatible with a disconnector plug, and the pin size is 2mm
