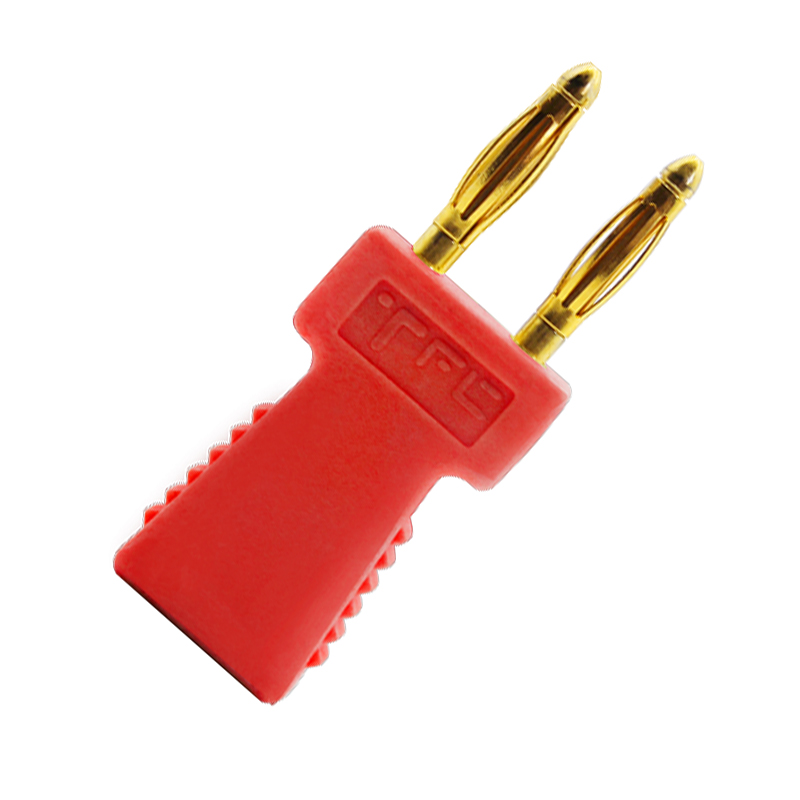

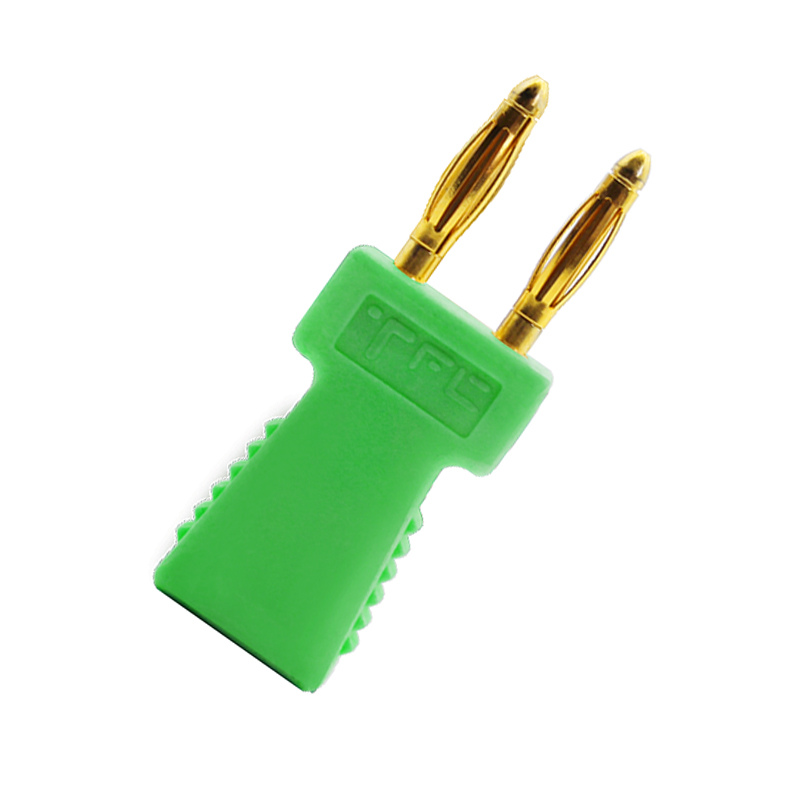

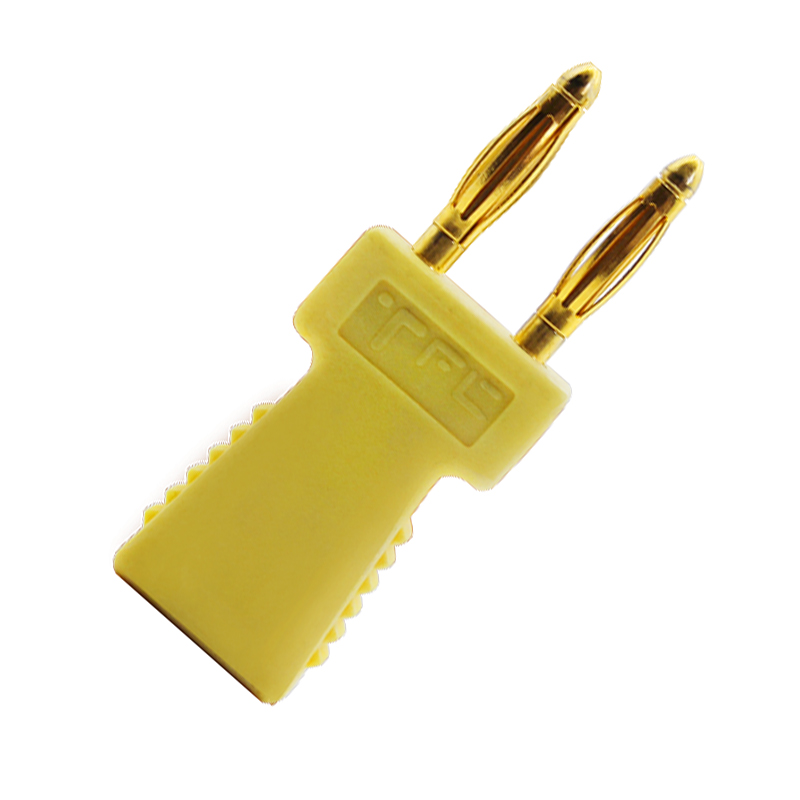

CMC170200 -01/02/03/04/05(Black/Red/Blue/Yellow/green)
exquisite design
Main Technical Index
Pin | Gold-plated copper, 3μ~5μ |
Appearance | One-piece injection molding |
Material | PA66 |
Rated Current | 10A |
Withstand Voltage | 2000VAC |
Insulation Resistance | 5000MΩ |
Operating Temperature | -40℃ ~ +85℃ |
Contact Resistance | ≤ 1.5mΩ |
Insertion and Extraction Force | ≤14N within the life cycle |
Lifespan | 10000 plug and unplug cycles |
Flammability Rating | UL94-V0 |

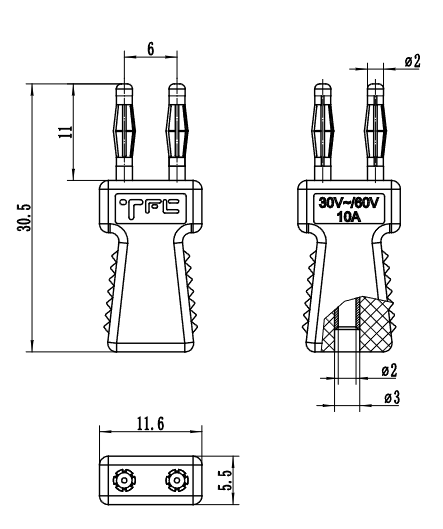

banana plug 2D Drawing
6mm broken connection block plug Advantage
In essence, a disconnect block is a signal repeater that can be manually re-plugged to achieve circuit connection and disconnection through physical plugging. Its foremost features are:
1, Test channel control: Through an Automatic Test Equipment (ATE) system, independent signal channels are provided for the Unit Under Test (UUT), which is capable of precise connection and disconnection of single or multiple signals.
2, Fault injection: The device generates fault conditions such as a disconnection of the circuit and a short circuit and used to check the anti-interference capability of the equipment (for instance, avionics systems redundancy testing).
3, Maintenance and diagnosis: By merely looking through the top test hole, engineers can directly see the line status without the need to disassemble the equipment and thus, the time for troubleshooting is considerably reduced.
4, High reliability: Thanks to the gold-plated drum spring contact design, it boasts a plug-in life of ≥10,000 cycles, a contact resistance of <4mΩ, and passes a 96-hour salt spray test (no corrosion in a neutral salt spray environment).
5, Extreme environment adaptability: The device is operable within a temperature range of -40℃ to 85℃, is able to endure an AC voltage of 2000V and has an insulation resistance of >5000MΩ, thus, it meets the requisites of the aerospace and marine industries, which are examples of harsh environments.
6, The 19-inch standard cabinet 4U panel can hold 14 sets of disconnect blocks that facilitate 280-channel signal connection disconnection management, with a volume 30% smaller than traditional solutios.
Test and measure connector Application
A 4U panel for 19-inch standard cabinets brings together 14 sets of disconnect blocks, thus allowing 280-channel signal connection/disconnection management. It requires less than 70% of the area compared to the conventional solutions, which makes it possible to save the cabinet space.
FAQ
Q1: Would it be easy to connect and disconnect a damaged plug?
A1: There is a unique anti-slip feature that has been implemented on the side of every plug.
Q2: Is the plug safe? What are the amperes and volts it can tolerate respectively?
A2: The plug uses a drum spring design for stability of the connection and it can carry a current of 10A and 2000VAC.
