• Accuracy: < 0.1% F.S. • Excitation Voltage: 5 - 15 V DC • Full-Scale Deflection: < 0.3 mm • Selectable Range: 0.1 - 20 kN • Technology: Silicon Piezoresistive • Housing: Stainless Steel
- 304 stainless steel monolithic housing - Amplitude-frequency response up to 10,000 Hz - 10,000g shock resistance on any axis - Selectable measurement range: ±50g to ±500g - MEMS variable capacitance technology - Lightweight: 15g
Accuracy: ±0.02% span over the temperature range Response Time: 300 milliseconds or less Long-term Stability: ±100 ppm FS/year Measurement Range: 0-20 MPa (selectable) Sensing Technology: Silicon resonant sensor Overpressure Tolerance: 1.5 times the full-scale pressure
• Accuracy: < 0.1% F.S. • Excitation Voltage: 5 - 15 V DC • Full-Scale Deflection: < 0.3 mm • Selectable Range: 0.1 - 20 kN • Technology: Silicon Piezoresistive • Housing: Stainless Steel
- 304 stainless steel monolithic housing - Amplitude-frequency response up to 10,000 Hz - 10,000g shock resistance on any axis - Selectable measurement range: ±50g to ±500g - MEMS variable capacitance technology - Lightweight: 15g
Accuracy: ±0.02% span over the temperature range Response Time: 300 milliseconds or less Long-term Stability: ±100 ppm FS/year Measurement Range: 0-20 MPa (selectable) Sensing Technology: Silicon resonant sensor Overpressure Tolerance: 1.5 times the full-scale pressure
• 304 stainless steel housing • Frequency response up to 10,000 Hz • Shock resistance: 10,000g • Wide, selectable measurement range: ±50g to ±500g •MEMS variable capacitance technology • Weight: 12g
● Measurable Media: Gases ● Overload Capacity: 150% FS ● Long-Term Stability: ±0.2% FS / Year ● Measuring Range: 0 kPa to 60 MPa (Selectable) ● Sensing Technology: Piezoresistive ● Pressure Type: Gauge

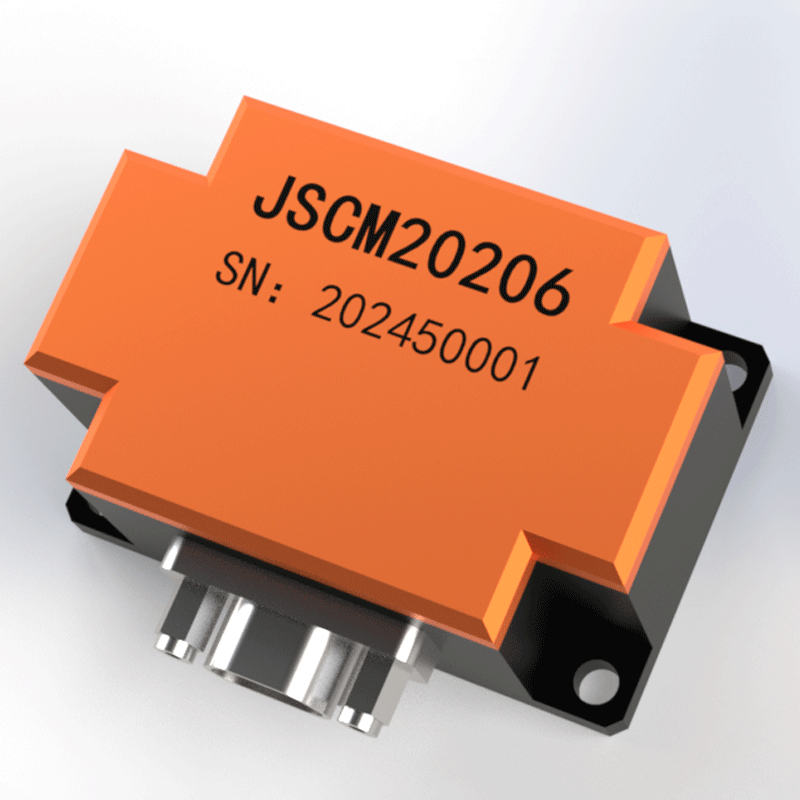

● Sensitivity: 1000±1 mV/g ● High Accuracy & Compact Size ● Shock Resistance: 2000 g ● Selectable Range: ±10° to ±90° ● Silicon Piezoresistive Technology ● Aluminum Alloy Housing

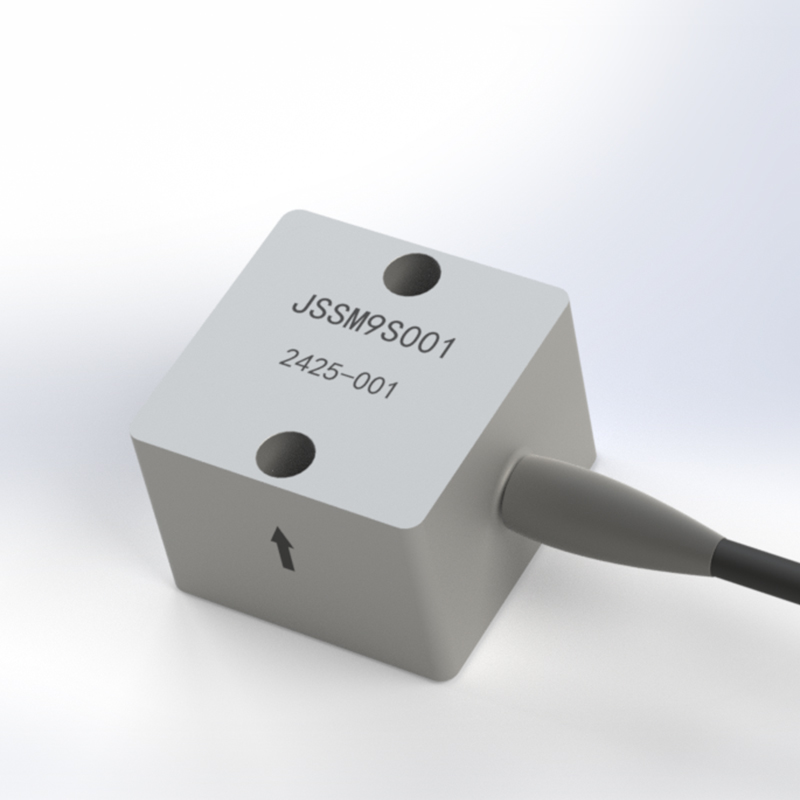

Core Technology: MEMS Variable Capacitance Housing Material: Monolithic TC4 Titanium Alloy Frequency Response: Up to 10 kHz Shock Survival: 20,000 g Measuring Range: Selectable from ±1,000 g to ±10,000 g Linearity: < ±2% Full Scale Output (FSO)

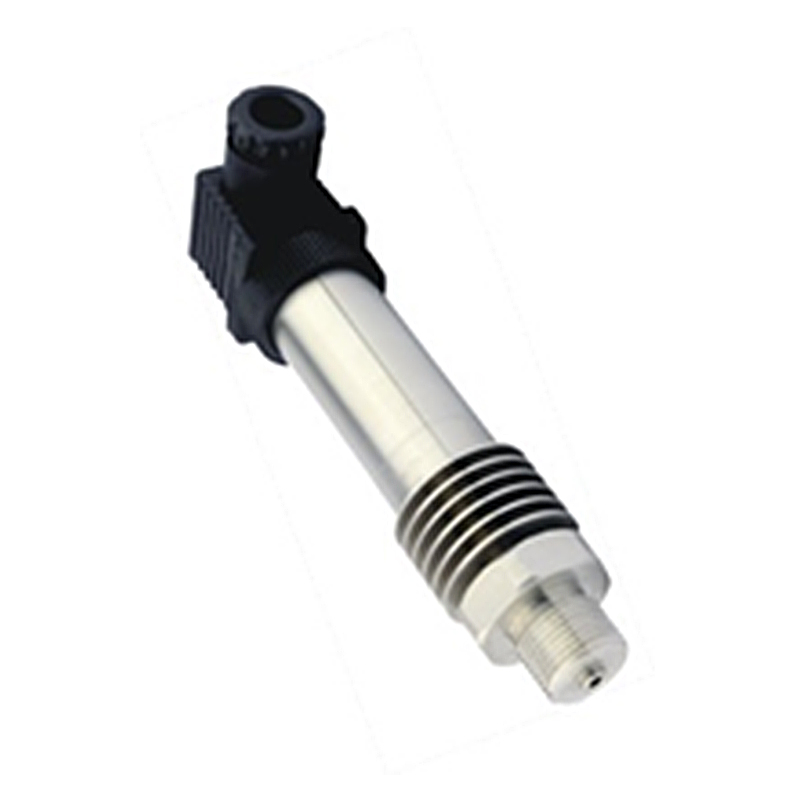

● Media Compatibility: Designed for use with stainless steel-compatible gases and liquids ● Overload Capacity: 150% of full-scale pressure rating ● Long-term Stability: ±0.5% FS/year ● Measuring Range: -100kPa to 100MPa (choose from) ● Sensing Technology: Piezoresistive ● Pressure Type: Gauge, absolute, and negative pressure (choose from)

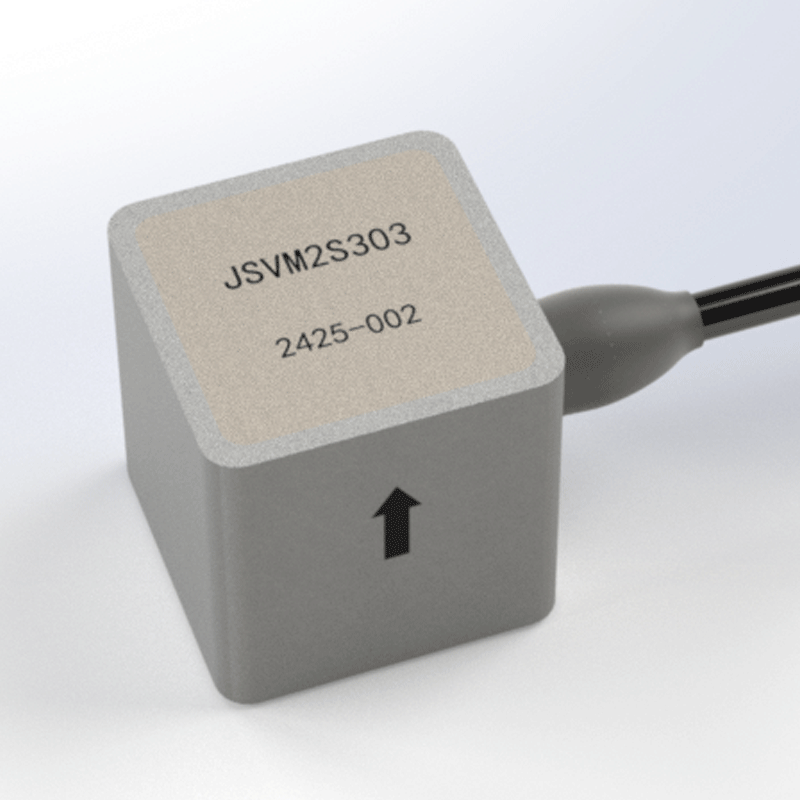

• Durable 304 stainless steel shell • Amplitude-frequency response reaches 10000 Hz • Able to withstand shock up to 10000 g • Extensively selectable measurement range: ±10g to ±500g • MEMS variable capacitance method • Quite light: 15g
