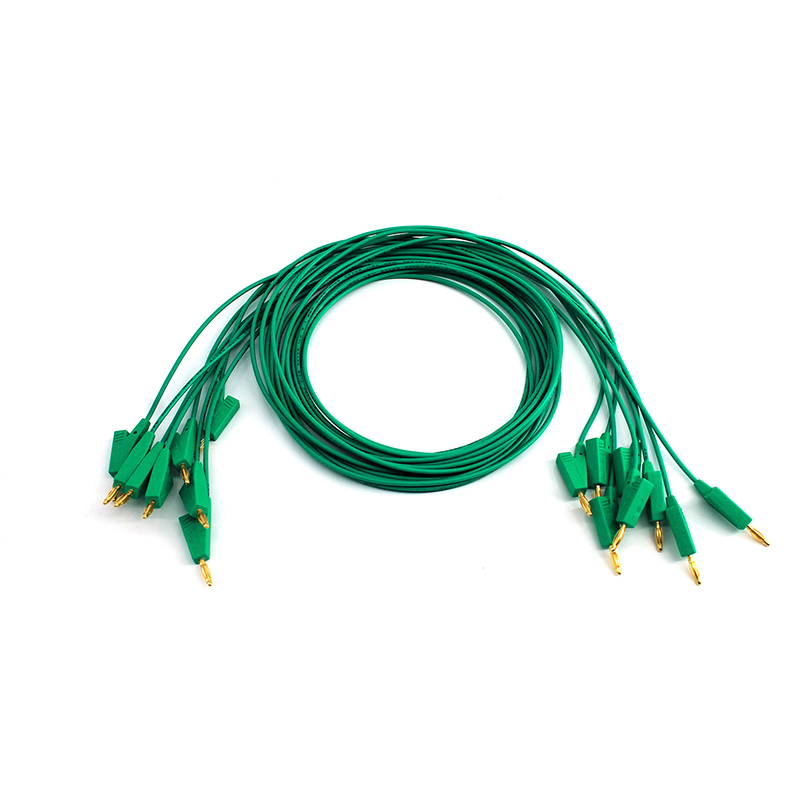

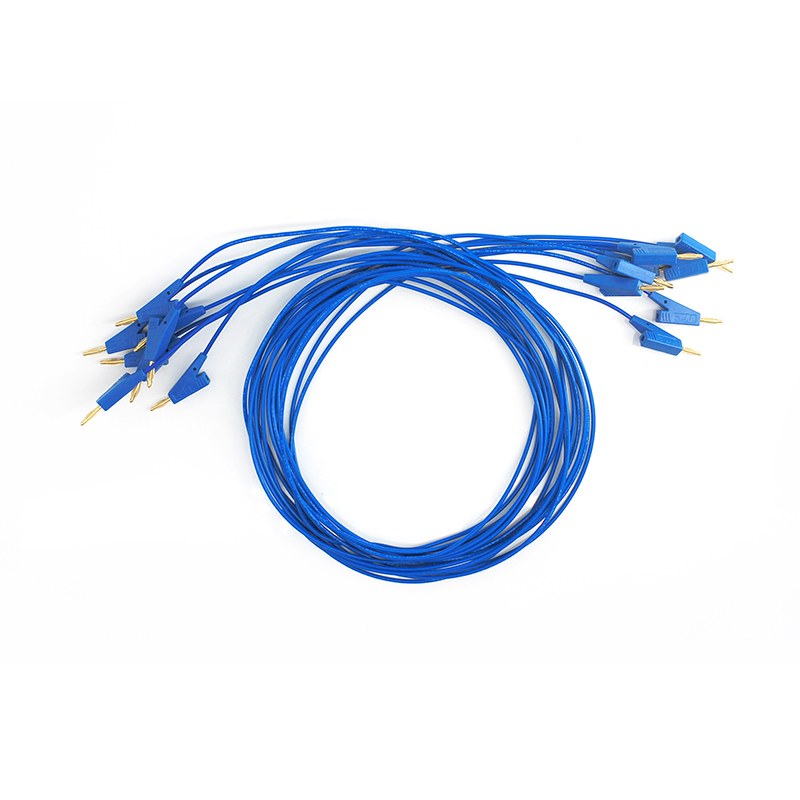

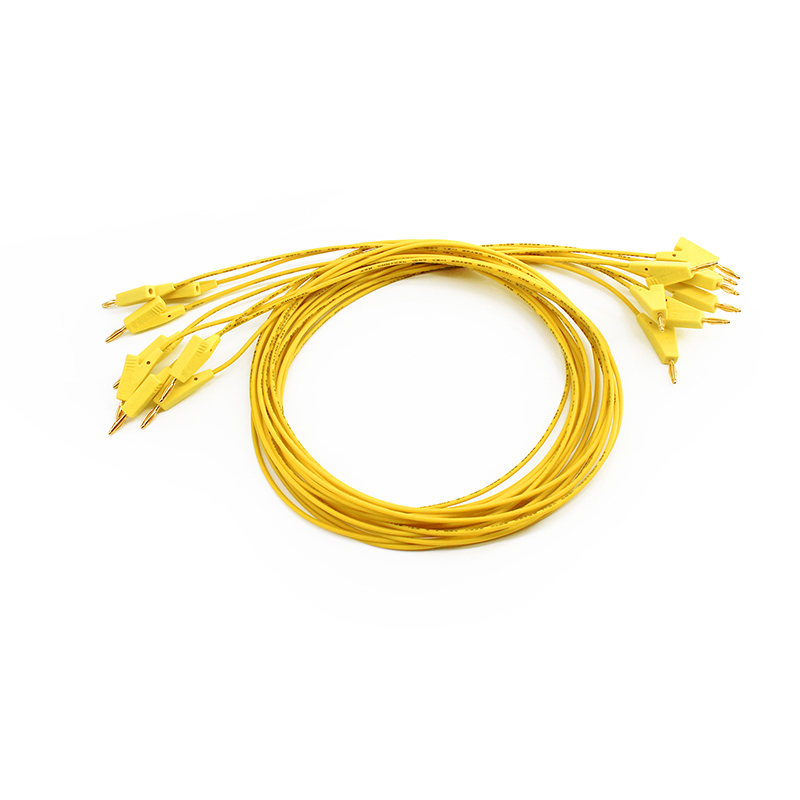

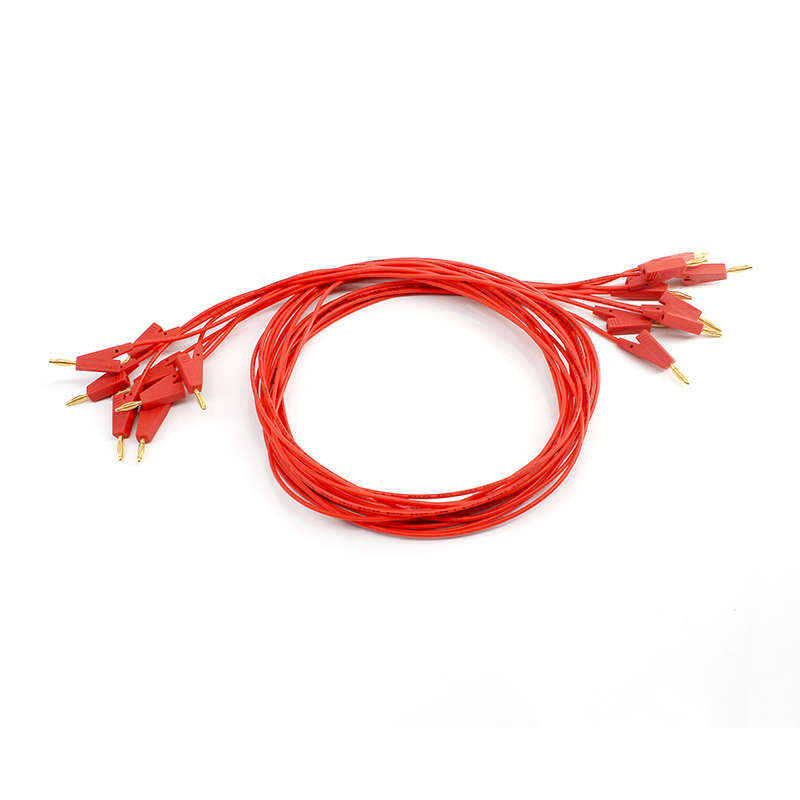

CMC170300-01/02/03/04/05 (Black/Red/Blue/Yellow/green)
Five colors are available for functional differentiation. It has a lifespan of 10,000 cycles of insertion and extraction. Common lengths are 0.5m and 1m.
Main technical specifications:
Pin. | Copper plated gold, 3μ~5μ. |
Appearance. | Integrated injection molding. |
Material. | Hardness 45P PVC. |
Rated current. | 10A |
Withstand voltage. | 1500VAC |
Insulation resistance. | 5000MΩ. |
Operating temperature. | -40℃ ~ +85℃. |
Contact resistance. | ≤ 1.5mΩ. |
Insertion and extraction force. | Within the lifecycle ≤6N±2. |
Cable. | UL1015, 20awg, 105 degrees. |
Lifespan. | 10,000 insertions and removals. |
Flame retardant rating. | UL94-V0 |

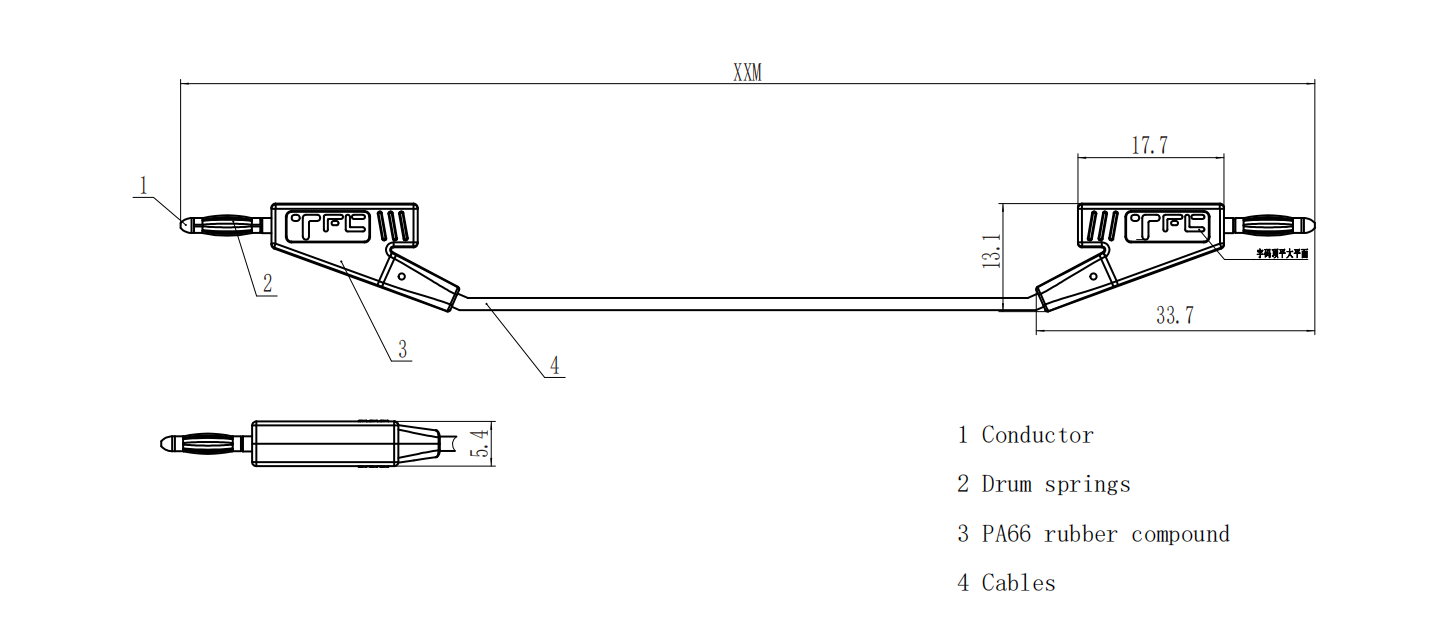

Jumper banana plug 2D Drawing

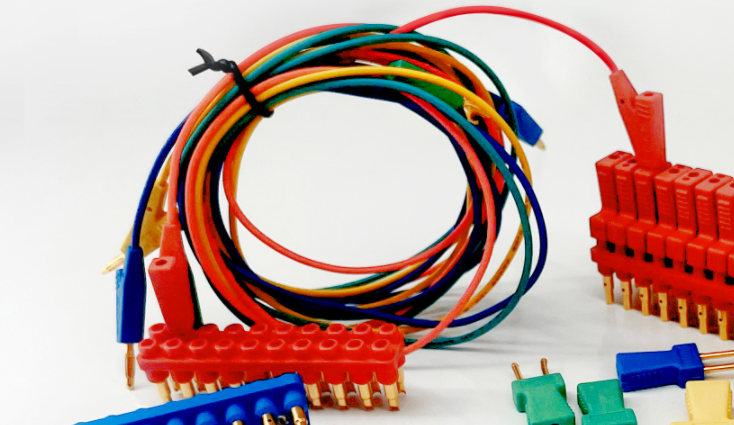

Jumper plug to plug Applications and Advantages
Jumper Banana Plug: 5 Color Options for Visual Function DifferentiationThe five colors allow one to visually distinguish functions by colors – e.g., red for power supply and blue for the signals. Thus, the misoperations of engineers are reduced, and the efficiency of the testing is improved.
Standardized Electrical Parameters of Jumper Banana. The rated current of 10A, voltage withstand capacity of 1500VAC, and insulation resistance of 5000MΩ make the product not only a perfect solution for medium-power signal transmission of industrial automation equipment but also a safe electrical source for automotive electronics and aerospace test industries at the same time.
Pin Design & Structural PerformanceThe pins are covered with a 3μ~5μ copper gold-plating process with a contact resistance of ≤1.5mΩ, which can decrease signal transmission loss and at the same time guarantee the precision of high-frequency testing. The single injection molding housing combined with 45P hardness PVC material has the characteristics of a stable structure and good anti-aging properties, thus it is not easy to be deformed or broken during long-term use.
Long Service Life & Harsh Environment AdaptabilityIt is designed for 10,000 times of plug-in and plug-out, and thus it is suitable for long-term use, especially in high-frequency testing of ATE equipment. Its operating temperatures range from -40℃ to +85℃, and therefore, it is perfect for scenarios such as high-low temperature testing of the aerospace industry and outdoor environment testing of the automotive industry. With UL94-V0 flame retardant rating, it is in line with industrial safety standards and is thus less prone to safety risks in conditions of high temperature or high voltage.
Stable Insertion/Extraction Force During the whole lifetime of the product, the insertion/extraction force is ≤6N±2. The appropriate and stable force not only prevents loosening, which leads to poor contact as a result of loose insertion/extraction, but also lessens engineer fatigue during high-frequency operations and thus is in harmony with the efficient work rhythm of test stations.
Compatibility with TFC The jumper (plug-to-plug type) is directly compatible with TFC's banana jacks, disconnect blocks, and other products. For example, along with disconnect blocks, it may be used to build an open-circuit test box, which in turn removes the necessity of the custom adapters and thus simplifies the assembly of the test system and lowers the cost.
Flexible Length Adaptation of Jumper Banana PlugIt comes in standard lengths of 0.5m and 1m, and customization is also available. The length can be changed according to the layout of the test cabinet, so that one does not have to face the problem of overly long cables causing untidiness or the problem of connection limitations due to overly short cables; thus, the neatness and the integration density of the test system are improved.
About Us
Tengfang Zhongke is a national high-tech enterprise founded in Changsha in 2015, focusing on one-stop interconnection solutions and adhering to the mission of "Making connections simpler". The company integrates R&D, production, and sales, with an independent and complete R&D system. It has established a professional R&D team, focusing on interconnection technology innovation, and deeply engaged in the R&D of high-density, high-speed, and anti-interference interconnection products. It possesses full-process R&D capabilities from scheme design, prototype development to technical verification, continuously breaks through core technical bottlenecks, and provides solid technical support for customized solutions. Its core products cover massive interconnection products, high-density connectors, PXI cable harnesses, etc. It provides customized cable and interconnection solution services, and has passed ISO9001 quality management system and military qualification certification. Its products are widely used in aerospace, national defense and military industry, automotive electronics, semiconductors and other fields.
FAQ
Question: What is the general length of a jumper?
Answer: The company always keeps products of 0.5 meters and 1 meter in stock.
Question: What is the size of the banana tips that are inserted in pairs?
Answer: The size of the mating connector is 2mm.
