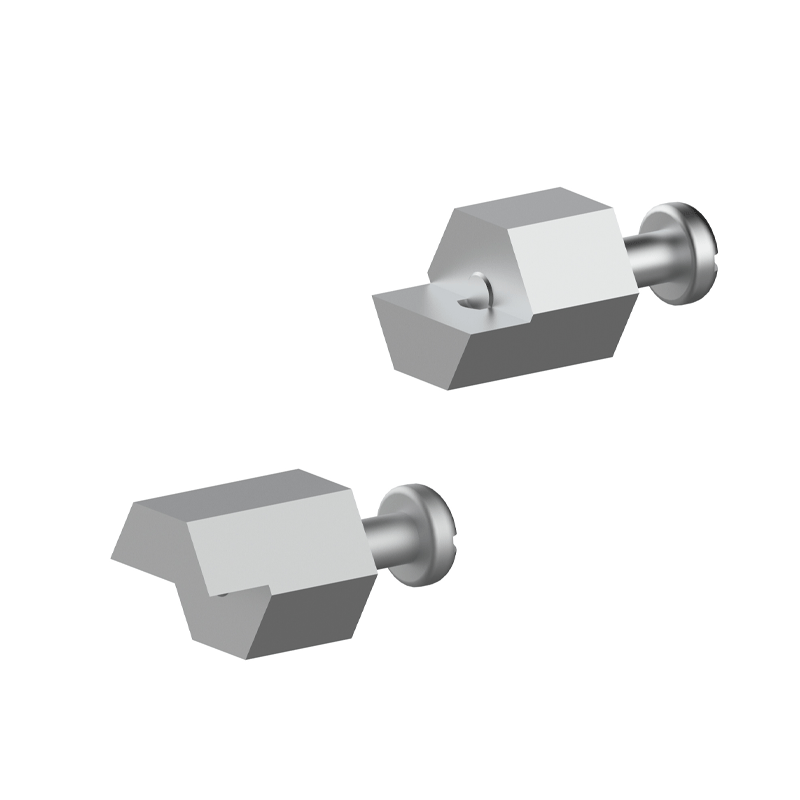

Zero Insertion Force Handheld Rectangular Connector

Model:CMZ1-156P / CMZ1-156R
Category:Rectangular Handheld connector
Customization:Customizable

Due‍‌‍‍‌‍‌‍‍‌ to their unique design and fast crimping operation, the CMZ series Handheld connectors are the most economical and dependable I/O signal connectors which have a great performance in the present market. ZIF Connectors, 10,000 times of insertion and removal, 156 pins high-density, high cost ‍‌‍‍‌‍‌‍‍‌performance.

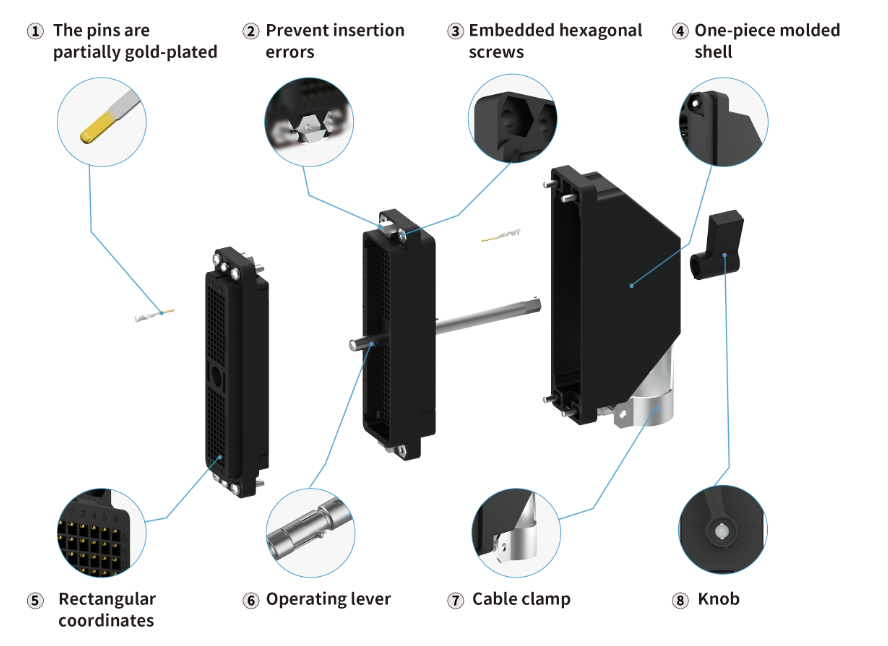

CMZ1-156P / CMZ1-156R Product structure characteristics

Handheld high-density connector

1、Longer‍‌‍‍‌‍‌‍‍‌ mating cycles and more stable connection performance

2、Hexagonal arrangement with 36 combinations to avoid backside insertion and wrong insertion

3、Easier locking mechanism

4、Features like customizable, detachable, and high hardness are available

5、Pin definition through alphanumeric coordinates is more convenient and accurate

6、Uses a camshaft structure，Locking and unlocking operations are very easy

7、The integrated cable clamp makes cable fixing easy and also allows direction changing (vertical or horizontal)

8、ntegrated OPEN/LOCK direction indicators: Rotation drives module movement and contact engagement, thus achieving zero-insertion-force (ZIF) ‍‌‍‍‌‍‌‍‍‌mating

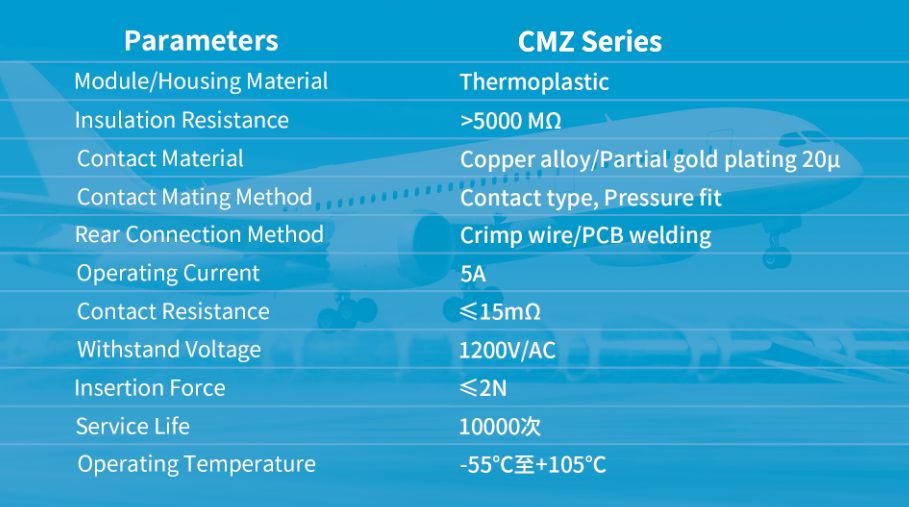

CMZ Parameters of rectangular connector

Handheld connector

CMZ Zero Insertion Force Connectors Product features

1,‍‌‍‍‌‍‌‍‍‌ 0 Insertion Force

The sliding latch system of the product is very clever and does not require the parts to touch while mating. Turning the knob causes the module to be driven until the contacts are engaged, thus a zero-insertion-force connection is obtained.

2, 10,000 Mating Cycles

The pin holes are non-contact mating without friction loss. After the pin holes are locked, they come into contact, and the parts in contact are partially gold-plated with 20μ, which makes the mating life longer and the connection stable 3.

3, 156 PIN High Density

Within the size of 25.1*108.2mm, there can be up to 156 signal channels. Being square and small in size, it is possible to insert the two sides one after another, thus saving more space and being in line with the trend of device miniaturization.

4, 70% Cost Reduction

The company is equipped with a factory, and a full system covering design, R&D, production, procurement, and sales is in place. It practices cost reduction by such ways as process optimization, cost control, and channel ‍‌‍‍‌‍‌‍‍‌expansion.

CMZ Handheld connector Application industry

Medical, Manufacturing, Telecommunications, Test & Measurement, Entertainment, Transportation

Rectangular connector

FAQ

Q1:‍‌‍‍‌‍‌‍‍‌ What feature of zero insertion force connector is the zero insertion force referring to?

A1: The zero-plug connector is a case where the connection of the plug and socket is done without any friction. This is because the pins and sockets of this handheld connector are not mated during connection. After closing, the locking device of the connector is used to bring the connected conductors into contact again.

Q2: Should we buy a fully equipped 156-pin connector with the label marked?

A2: The connecting conductors can be arranged according to the actual requirements, and it is also possible to buy some ‍‌‍‍‌‍‌‍‍‌conductors.
