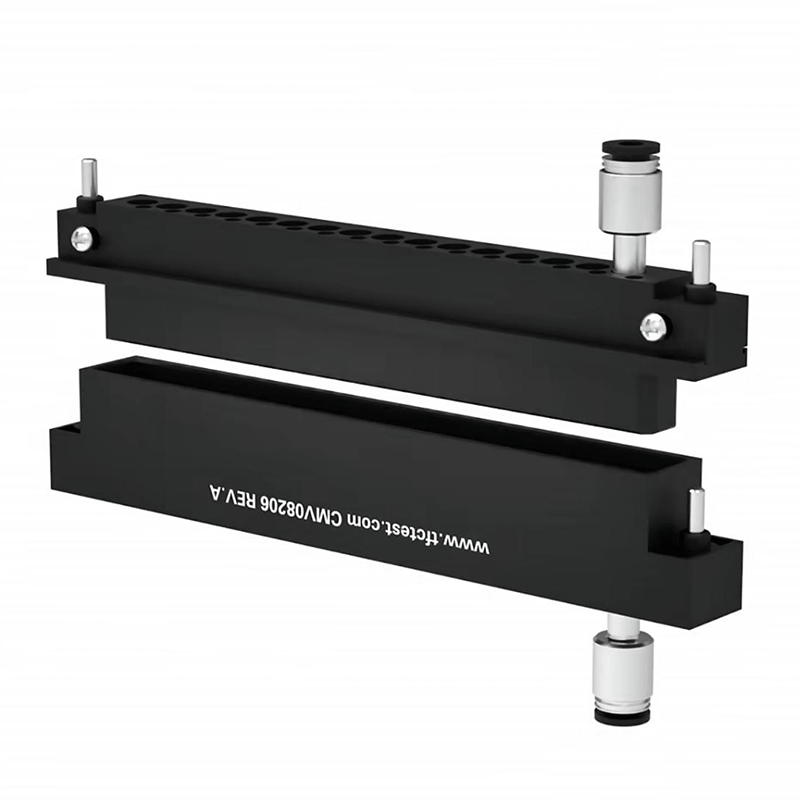

CMW Heavy duty Pneumatic Series

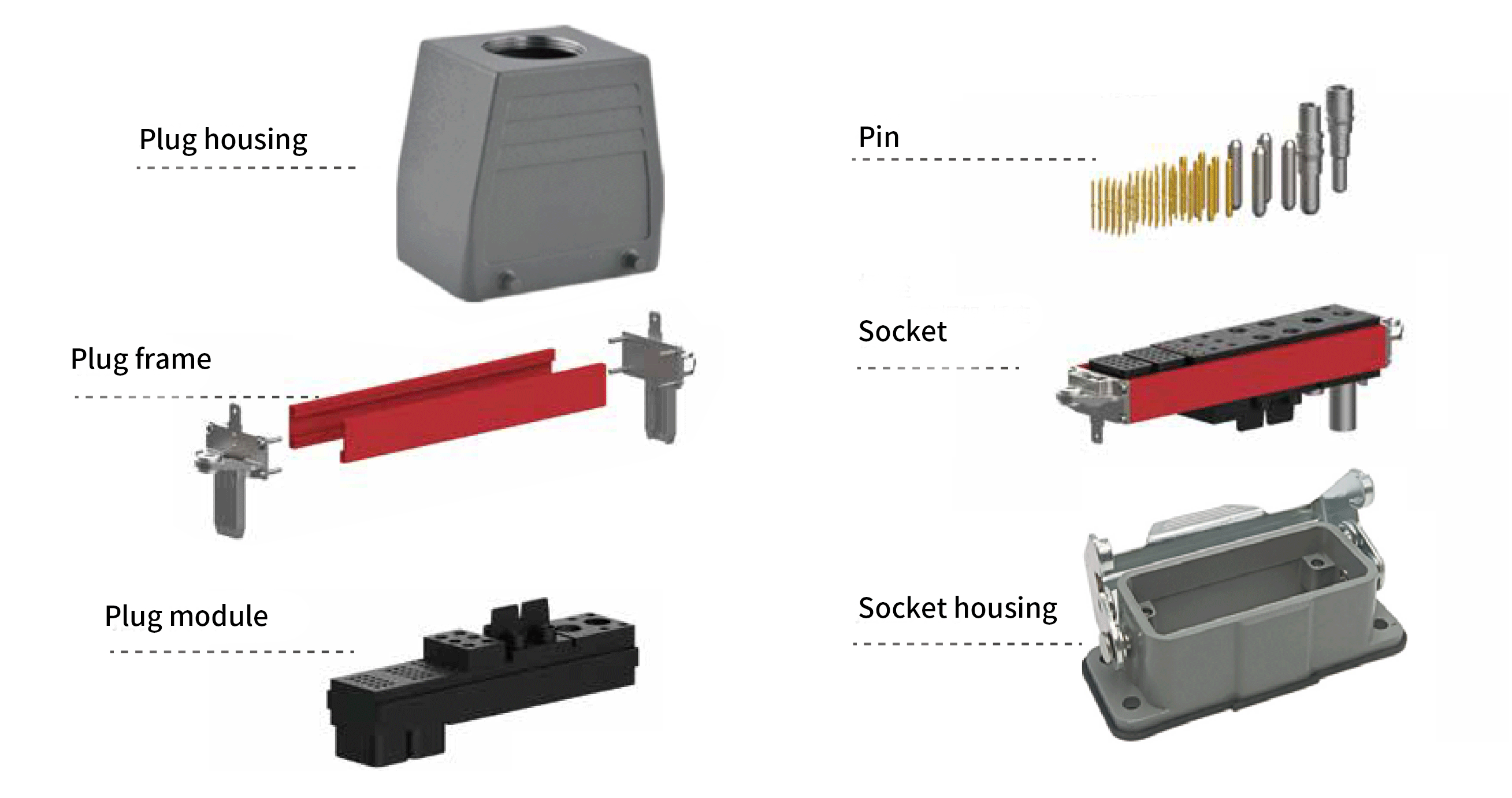

The CMW series heavy-duty connector structure includes pinhole + module + frame + heavy-duty housing. The frame length can be set up as a single row or double row with standard lengths of 30, 44, 64, and 90 centimeters. The pinhole module can be arranged based on the customer's condition, providing the great freedom and flexibility.
Product features of CMW heavy duty connectors
1. Customization up to 100% is available for customers, with the ability of flexible expansion and configuration.
2. The product can accept multiple types of connection signals, such as pneumatic, coaxial, data transmission, high-voltage, and standard signal.
3. The components are designed for the easy installation and removal of the parts, featuring efficient connection and quick mating/unmating.
4. The product is endowed with excellent oil resistance, impact resistance, and vibration resistance.
5. Presently, the maximum rated current supported is 1000A.
6. The cycling mating life is more than 100,000 cycles.
7. It prides on a high configuration density, thus achieving a space-saving effect.
8. With special materials, the product provides excellent anti-vibration performance.
9. The manufacturer, who integrates R&D, design, production, testing, and sales in one, is very competitive in terms of price-quality ratio.
10. It is mainly used in high-volume testing; by adding a heavy-duty housing, it can also be converted to a manual mating/unmating mode.
Application of CMW floating connector
Among the company's essential products are high-density test connectors, sensors, signal conditioning systems, switching systems, and cable harnesses. The products have been extensively utilized in top-tier industrial sectors like the drone industry, automotive electronics, and aerospace, thus offering customers dependable connection and testing solutions.
Research and Development Center
The company, which is heavily dependent on technological R&D as its main source of power, still follows the idea "innovation-led, continuous improvement, and pursuit of excellence". By this, it has a team with advanced technology that is capable of covering all the stages of product development, design, process, and testing thus, providing the firm with strong backing for core product R&D and quality upgrading.
FAQ
Q1: Is the heavy-duty connector with a housing added to the automatic connector?
A1: Yes, the situation is like this - after the CMW series connectors were configured, they added an extra housing which made it possible for handheld docking. Also, the waterproof feature was upgraded to the IP65 level.
Q2: Are there any limits to the configuration of heavy-duty enclosures?
A2: Yes, the first length will be limited to four fixed specifications: 34mm, 44mm, 64mm, and 90mm. In case the configuration does not require the length that corresponds to the gaskets might have to be configured to get the corresponding length.
