CMZ1-156PW4A / CMZ1-156RW4B

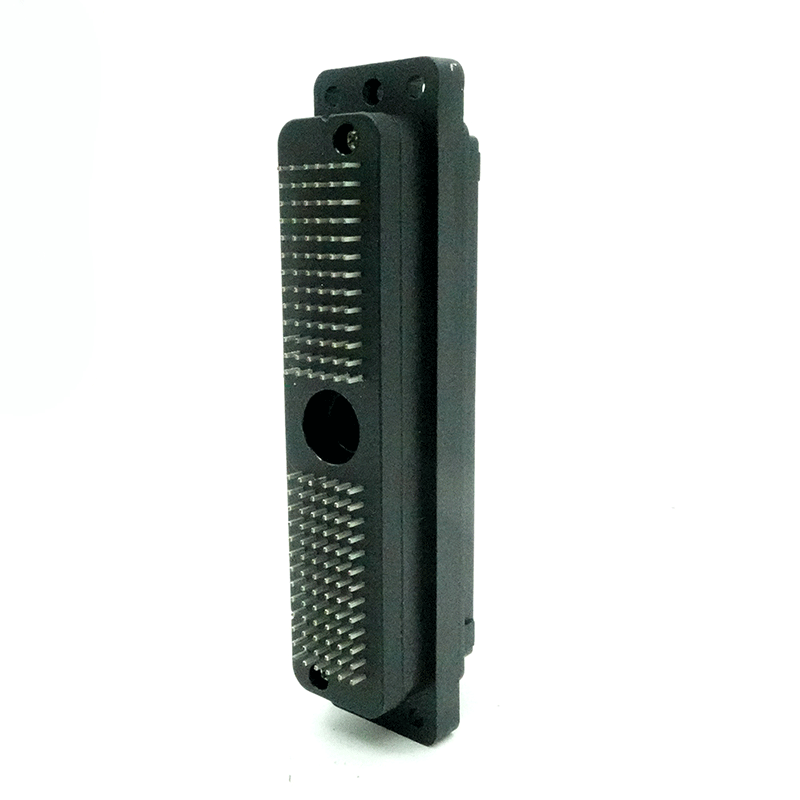

CMZ series, 156-pin plastic socket, fully equipped with PCB contacts, square pins, exposed height 3.18mm
Product parameters of PCB board connectors
Product Parameters
| Standard | Material | Body - PA; Actuator - Stainless Steel; Contacts - Copper with gold plating |
| Connection Method | PCB Soldering | |
| Pin Size | □0.64*0.64 | |
| Pin Exposure Height | 3.18mm | |
| Flame Retardant Rating | UL94 V-0 | |
| Environmental Performance | Operating Temperature | -55℃ ~ +105℃ |
| Neutral Salt Spray | Gold plating 96H, Tin plating 12H, Others 48H | |
| Mechanical Performance | Mechanical Life | ≥10000 cycles |
| Electrical Performance | Operating Current | ≤5A |
| Contact Resistance | ≤15mΩ | |
| Withstand Voltage | ≥1200 V/AC | |
| Insulation Resistance | ≥1000 MΩ |

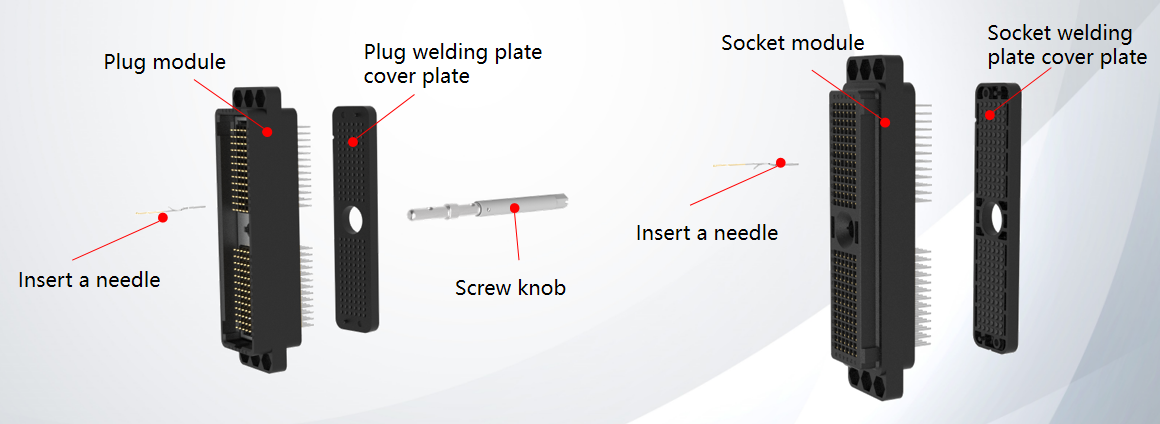

CMZ series PCB low insertion force connectors
CMZ high-density connector application
About Us
Tengfang Zhongke is a national high-tech enterprise with a focus on one-stop interconnection solutions and located in Changsha. It was established in 2015 and is committed to the mission of "Making connections simpler". The company merges R&D, production, and sales, and is equipped with an independent and complete R&D system. It has formed a professional R&D team, focused on the invention of interconnection technology, and deeply involved in the R&D of the high-density, high-speed, and anti-interference interconnection products.
Tengfang Zhongke has the full range of R&D capabilities from scheme design, prototype development to technical verification, it keeps on breaking core technical bottlenecks and thus provides the most reliable technical support for customized solutions. Its core products cover massive interconnection products, high-density connectors, PXI cable harnesses, and so on. The company offers customized cable and interconnection solution services and has obtained ISO9001 quality management system and military qualification certification.
The company's products are, essentially, the main parts of the aerial vehicle, and they have been widely used in industries such as aerospace, national defense and military industry, automotive electronics, semiconductors, etc.
FAQ
Q1: Are pins included if the PCB board connector is purchased?
A1: The connector is equipped with square pins. One side is inserted into the connector, and the other side is soldered to the PCB board.
Q2: Is it possible for the PCB board connectors to be interlocked with those of non-PCB boards?
A2: Yes, the majority of customers decide to use the wired version for the handheld end (ITA side) and the PCB version for the non-handheld end (ICA side). Thus, it helps in saving the device space, reducing the wiring, and also considering the handing plugging ease.
