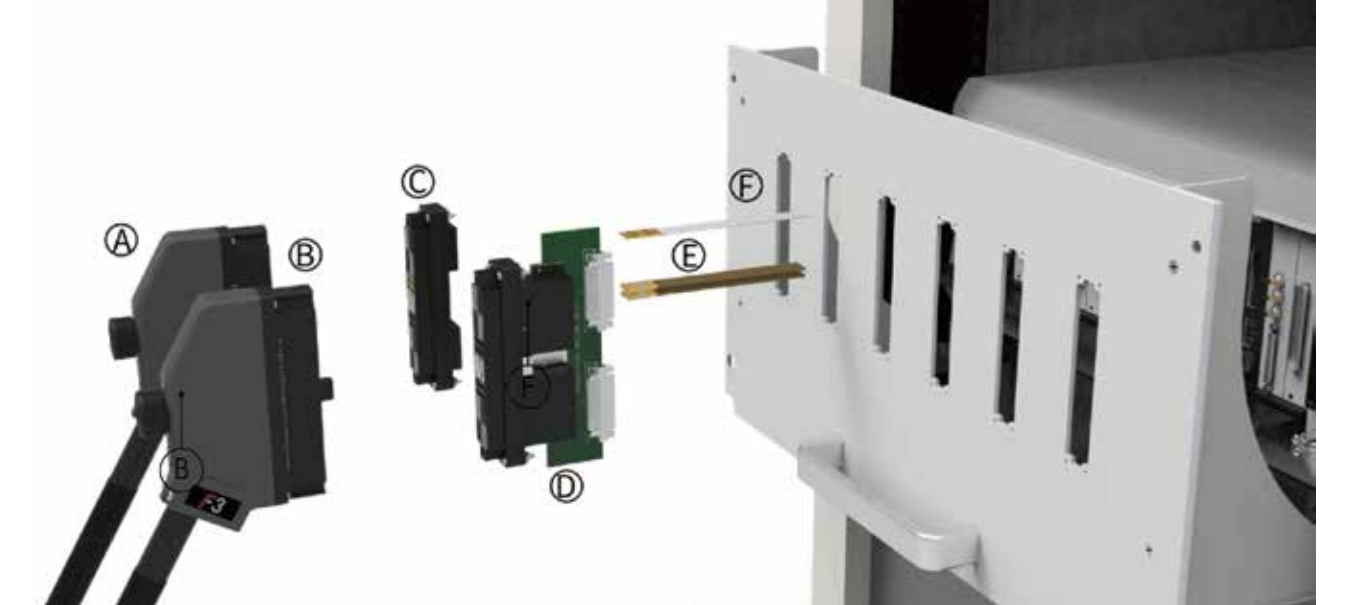

Product structure diagram of F3 handheld connector
A. ITA Rear Shell B. F3 ITA C. Receiver Module D. Pin Header
E. Receiver Jumper F. Mounting Panel

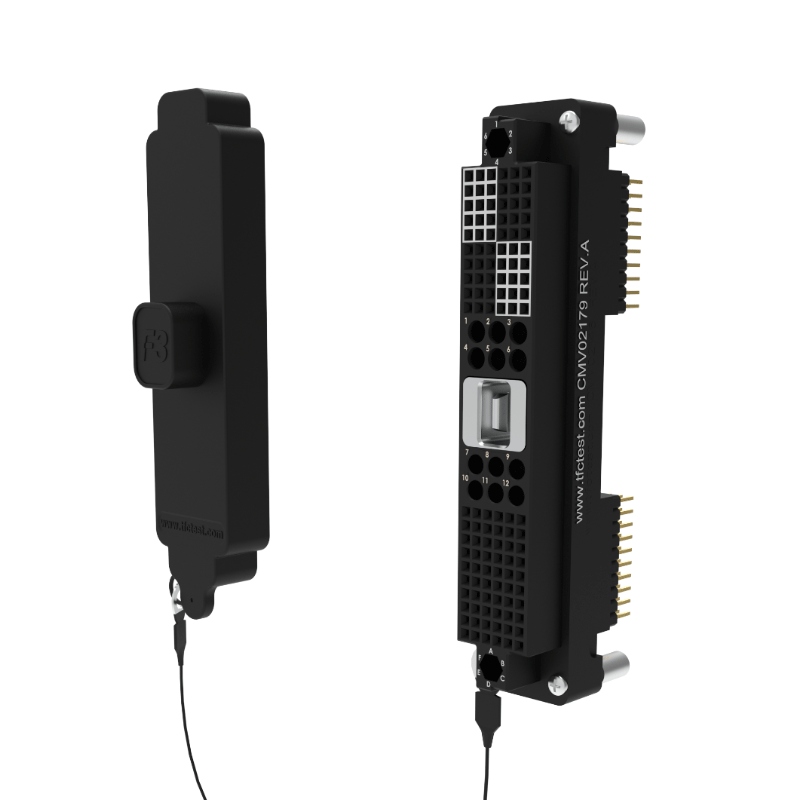

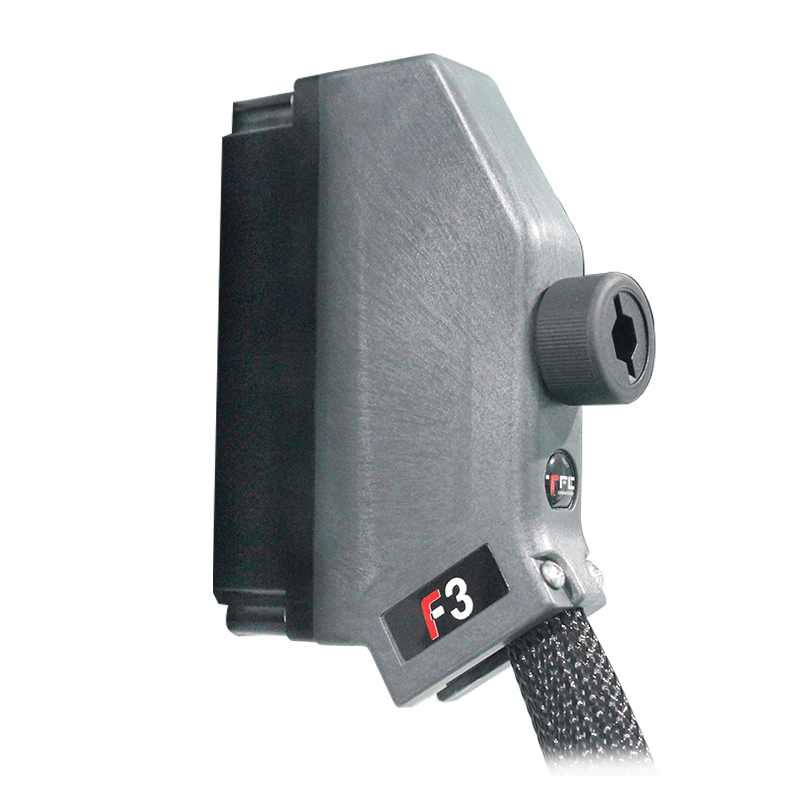

F3 Rectangular connector Product features
1、The F3 small-sized：The rectangular connector has a size of 108.2mm × 20.3mm, supports up to 168 signal contacts, and is more suitable for narrow spaces.
2、The 168-pin multipin：A connector is provided with optional hybrid modules, which can support multi-type I/O connections (including general signals, coaxial signals, power, etc.), and the hybrid modules are of relatively low density.
3、The cable clip of the：The rectangular connector adopts a 45° cable exit design, thereby greatly reducing cable interference and making the cable configuration easier.
4、The F3 rectangular：The connector uses an integrated module design to shorten the assembly time, and a knob locking method is used, which makes the operation more convenient.
5, The mating cycle：High-density connector life can be 10,000 cycles.
Application of F3 high-density connector products
1、Test connection scenarios are ideal if the space is limited, the operation is manual, and the I/O channels meet the following conditions: The number of channels is small, or mixed channels are needed, and the total number of channels does not
exceed 168.

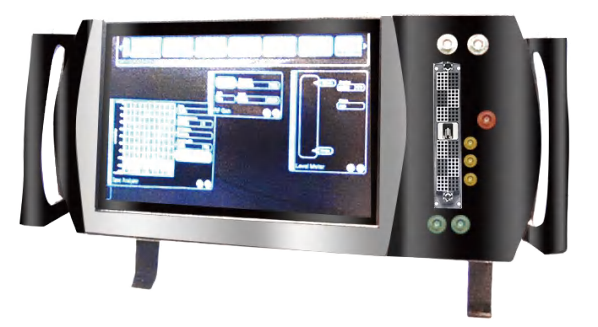

2、The precise application scenarios are: interface for off-the-shelf test instruments in the aero-space field, secondary adapters for equipment adapter boxes in the national defense and military industry sector, and adapters for mobile aging
test cabinets in comprehensive laboratories.
Factory processing center
TFC's R&D team is anchored by "innovation-led" and delves deep into the entire chain of product development, design, craftsmanship, and testing. With the dedication of "continuous improvement," it breaks through technical barriers; with the perseverance of "pursuit of excellence," it refines every detail. It infuses robust technical strength into core product iteration and quality upgrading.
FAQ
Question: In terms of size, what advantages do the F3 series have over the F1 series connectors?
Answer:The F3 series has a smaller horizontal dimension compared to the F1 series, which makes
it more suitable for installation requirements in confined spaces.
Question: What changes have been made to the efficiency of the assembly in this product?
Answer: The use of a modular integrated design largely cuts down the time of assembly time and improves
The efficiency of the assembly.
Question: F3 series connector features what kind of locking method and What advantages does it have?
Answer: By using a knob locking method, operators can conveniently carry out their work.
Besides, It also has a shrapnel clamping and locking mechanism to secure the connection's stability.
