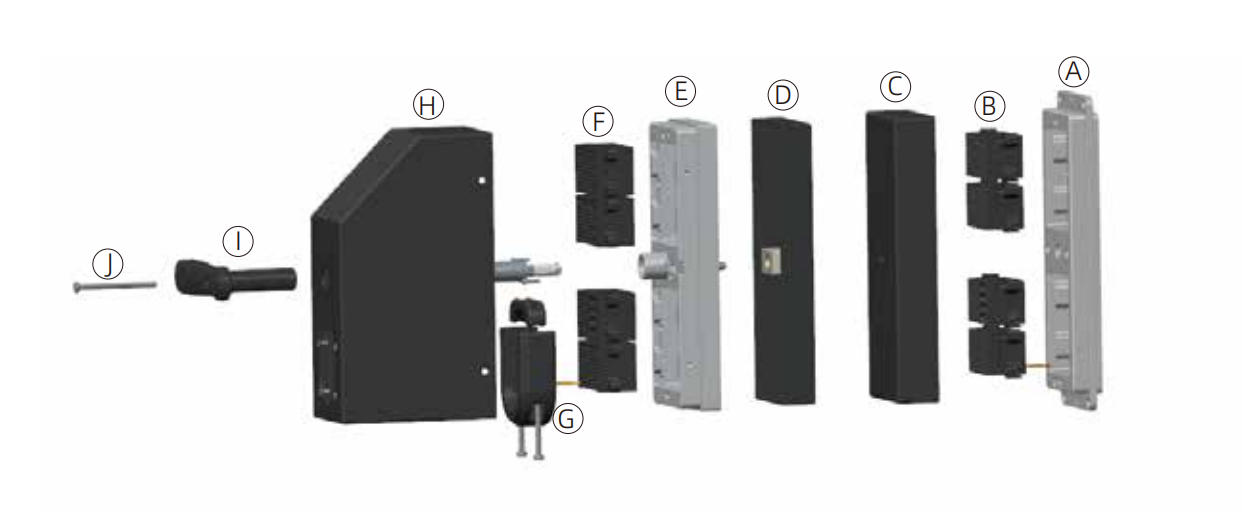

F4 Rectangular connector Structural schematic diagram

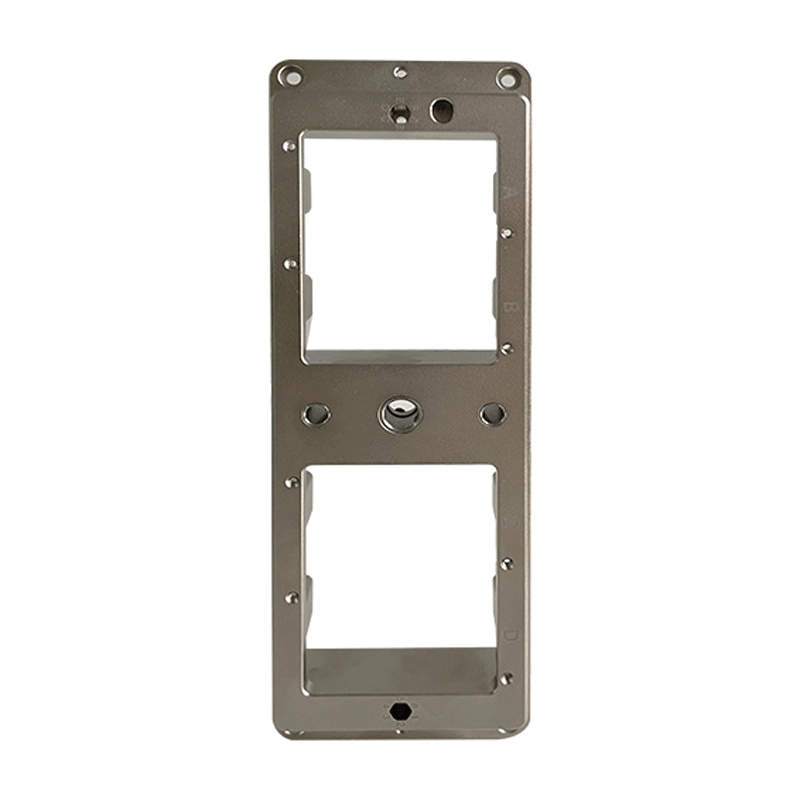

A. Receiver Frame B. Receiver Module C. Receiver Protection Cover D. ITA Protection Cover
E. ITA Frame F. ITA Module G. Cable Clip H. ITA Rear Cover
I. Rotating Handle J. Phillips Pan Head Screw

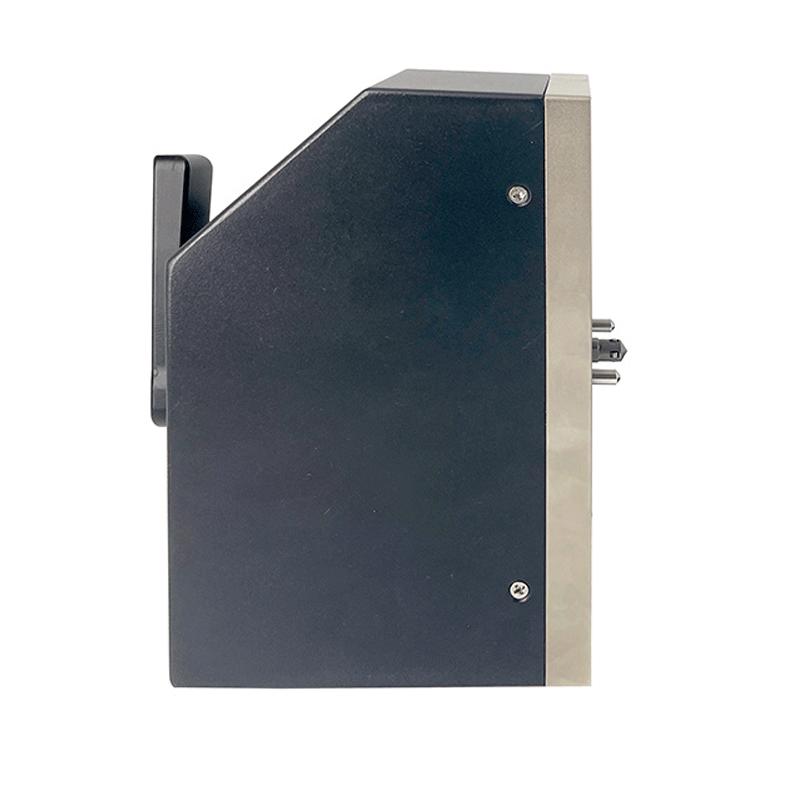

F4 High-density connector Product features
1、The F4 Rectangular Connector is a 143.3mm × 39.4mm device suitable for high-density application scenarios, compatible with 640-pin multi-pin connectors, and can support up to 640 stable signal contacts.
2、 Multi-type I/O connections (i.e., general signals, coaxial signals, power, etc.) can be easily enabled by the unit having optional hybrid modules; hence, it becomes a high-performance multi-type hybrid connector
3、Option of anti-misinsertion items is provided for the product installation; guide pins that prevent incorrect installation and ensure precise mating.
4、 With its quick-release detachable rear shell and structural design, cable maintenance can be done quickly, and at the same time, PCB board applications are also supported.
5、The mating cycle life of the connector is assured for over 10,000 cycles. Thus, it provides great durability and is an excellent source of long-term, stable connection support.
F4 multi-type hybrid connector application

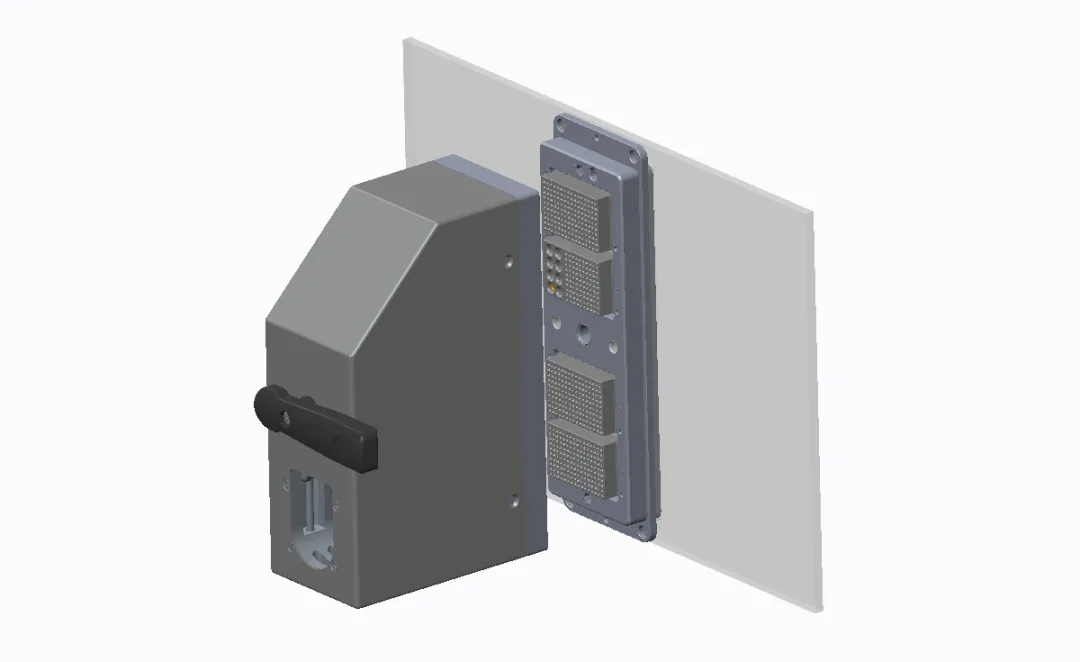

1、It can be directly installed on the cabinet. This installation form is suitable for situations where frequent maintenance
is not required.
2、Hinge installation or slide rail installation: Installed on the cabinet, suitable for situations that require frequent maintenance
F4 Multi-type hybrid connectors
By type: power, signal, data, coaxial, optical fiber, pneumatic, fluid, etc.;
By signal characteristics: voltage, current, power, frequency, pressure, rate, etc.;
By cable connection method: select the corresponding connecting conductor for crimping or soldering;
Additionally, corresponding module selection is determined by the respective pinholes, and the appropriate module is selected based on the number of signals.
Production base

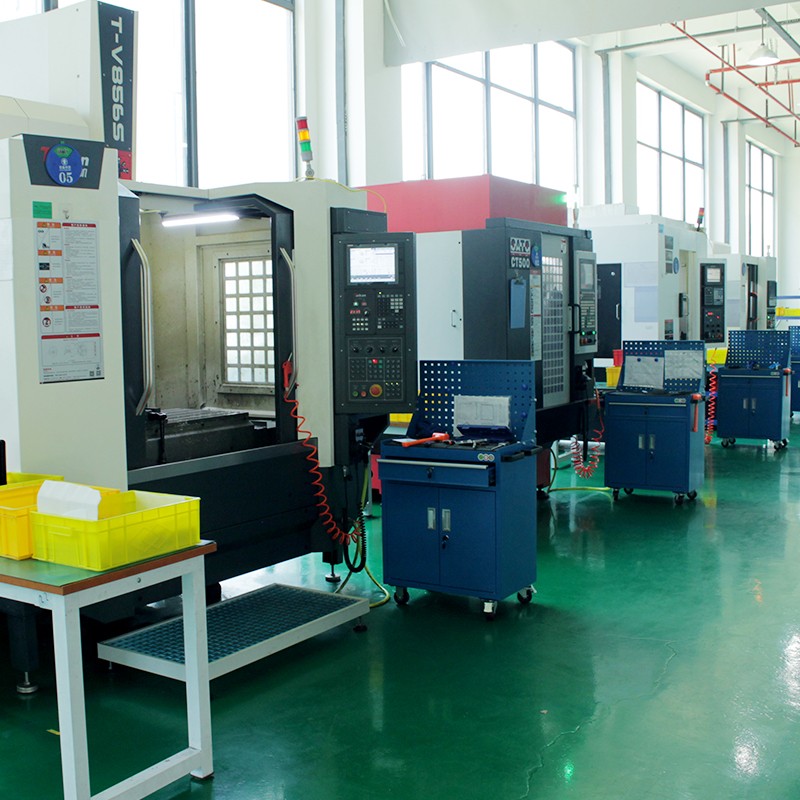

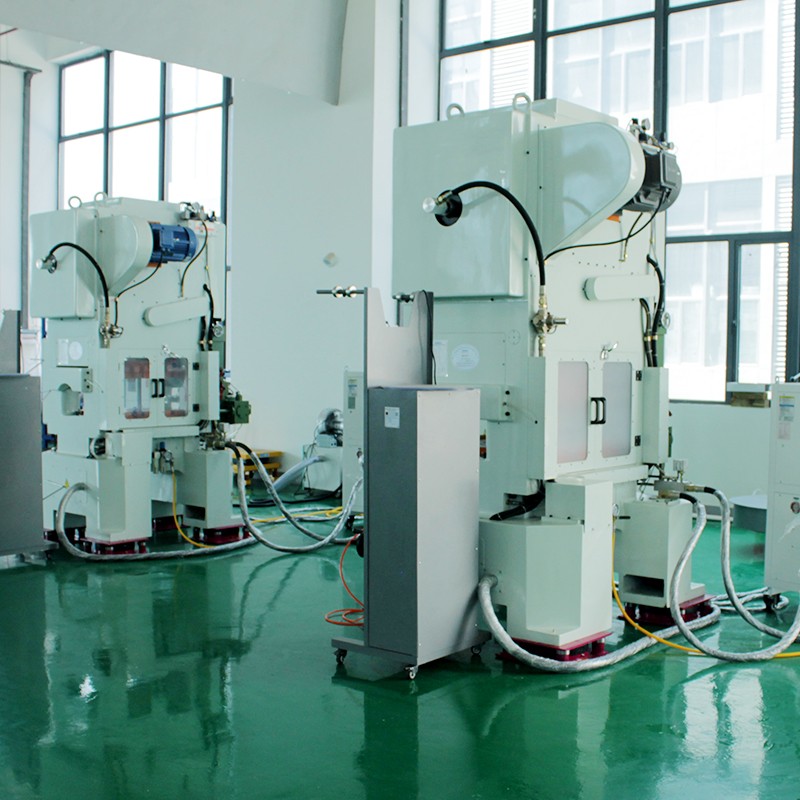

Machining Workshop
Crown Spring Machining

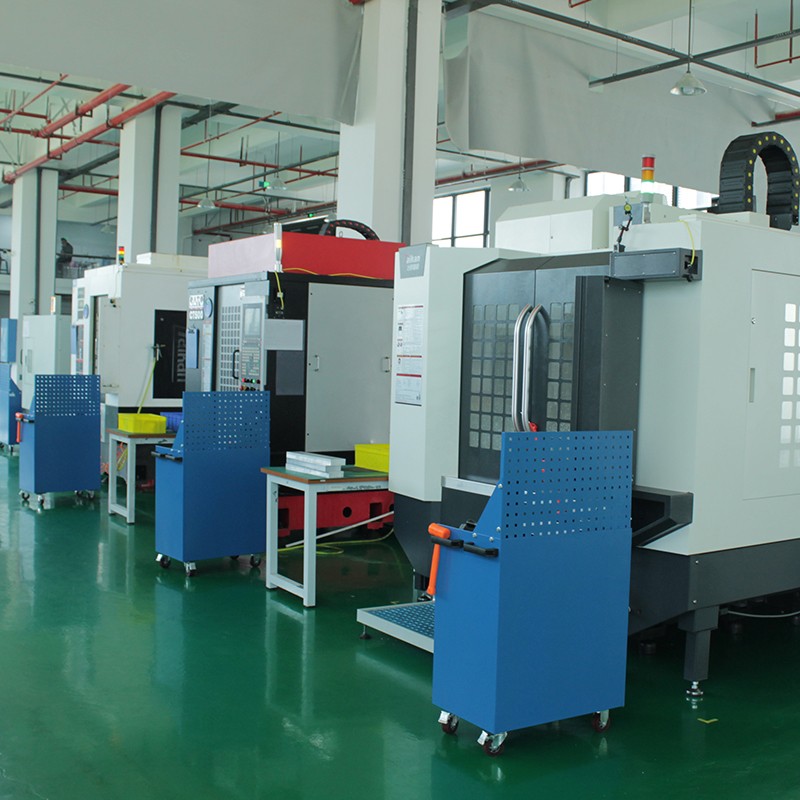

5-Axis Machining Center

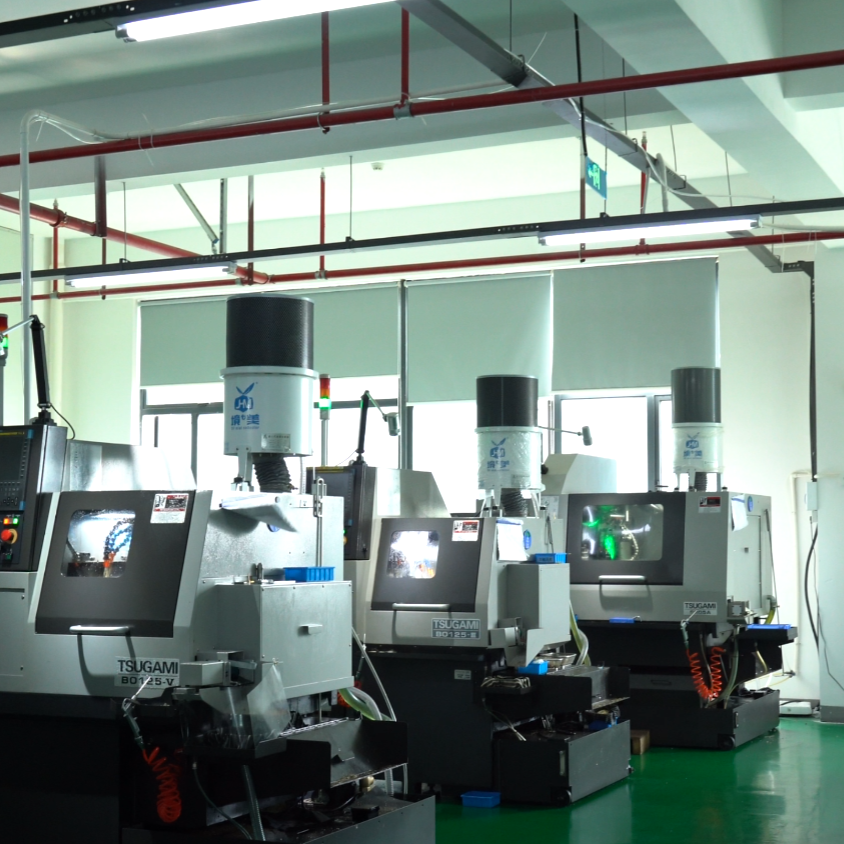

Pinhole Machining
FAQ
Question: How many modules can be installed on the F4 rectangular connector, and what is the maximum number of signal points it supports?
Answer: It is possible to install up to four F-series modules, resulting in a maximum of 640 signal points. The device is for I/O mixed-channel modules, and it is compatible with various signal connection types.
Question: Where can I obtain the user manual and model resources for the F4 series 640P handheld connectors?
Answer: The customer service on the respective webpage is open for contact and consultation. Upon your request, the customer service will dispatch the materials.
