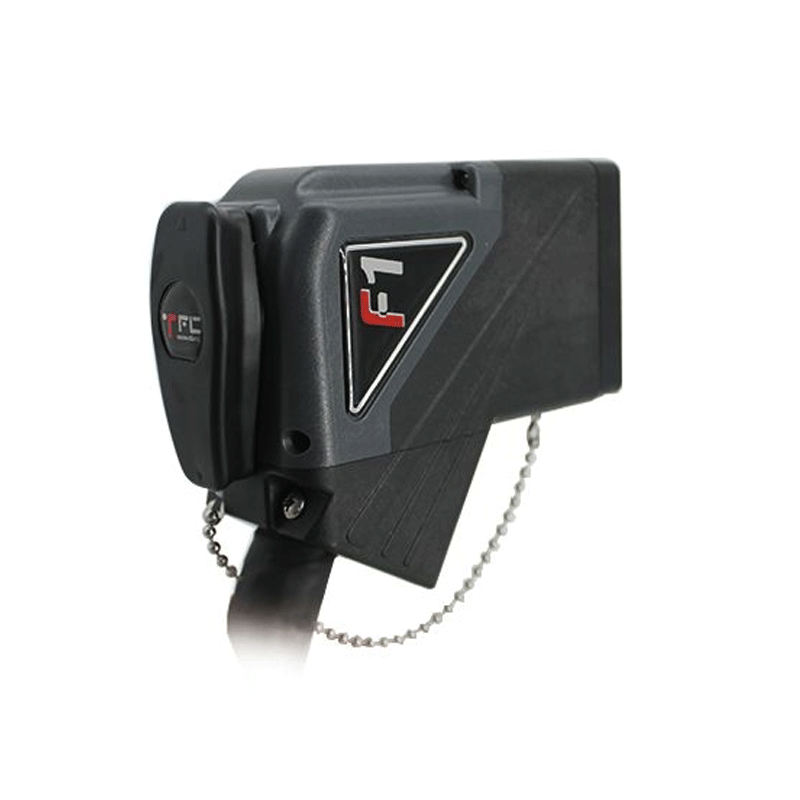

F1 series high-density connectors

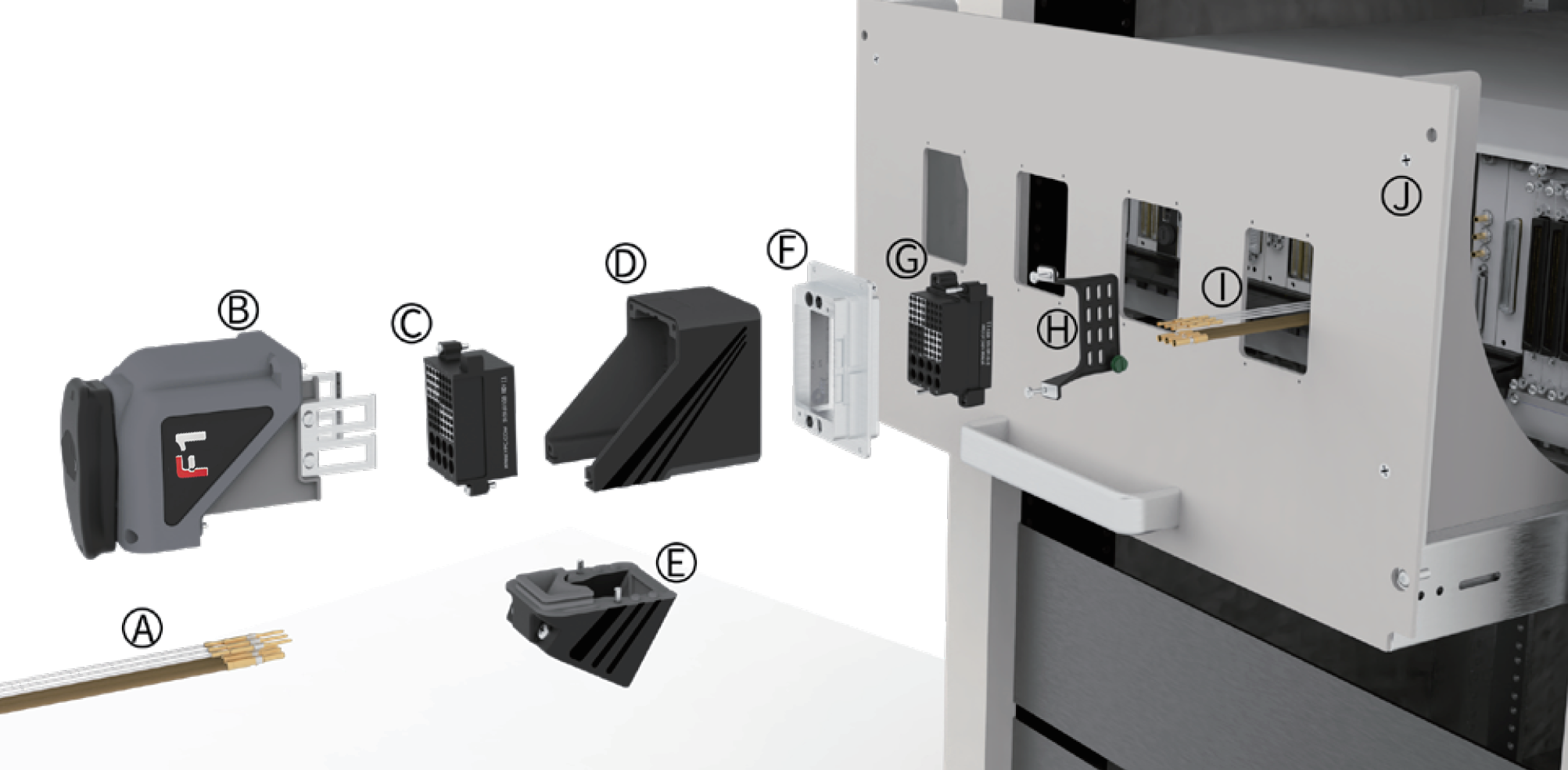

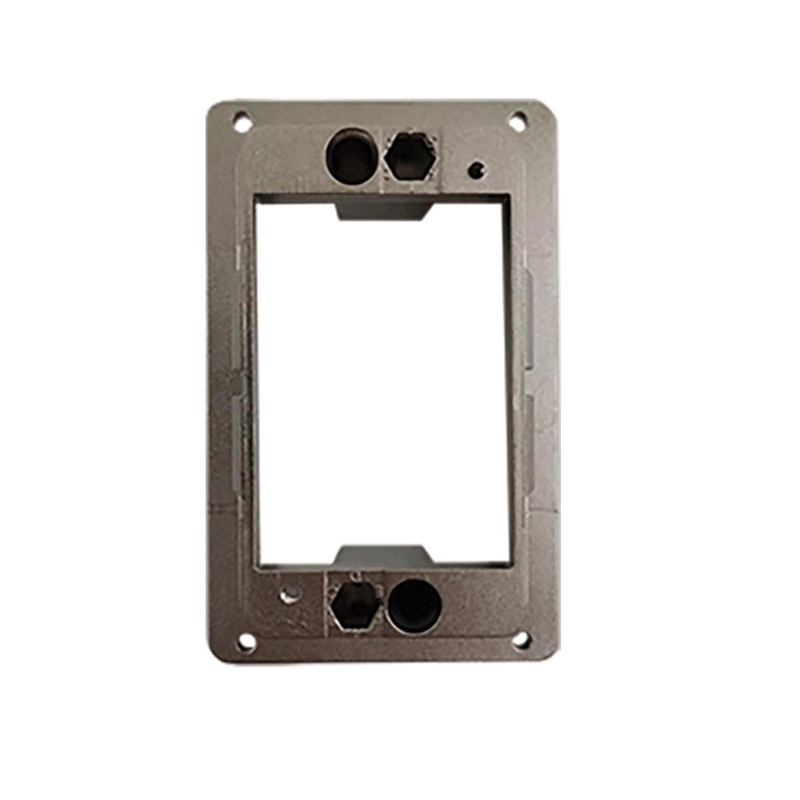

A. ITA Jumper B. ITA Rear Shell and Latching Mechanism C. ITA Module D. ITA Frame
E. U-shaped Cable Clamp F. F1 Receiver Frame G. Receiver Module H. Stress Plate
I. Receiver Jumper J. Panel
Features of F1 Series high-density connectors
1、160P multi-pin connector, high-density connector, size: 77.7mm*48.8mm, capable of connecting 160 signal points;
2, The rectangular F1 connector may optionally be fitted with a hybrid module to facilitate multiple types of
I/O connections such as standard signals, coaxial, power, etc.

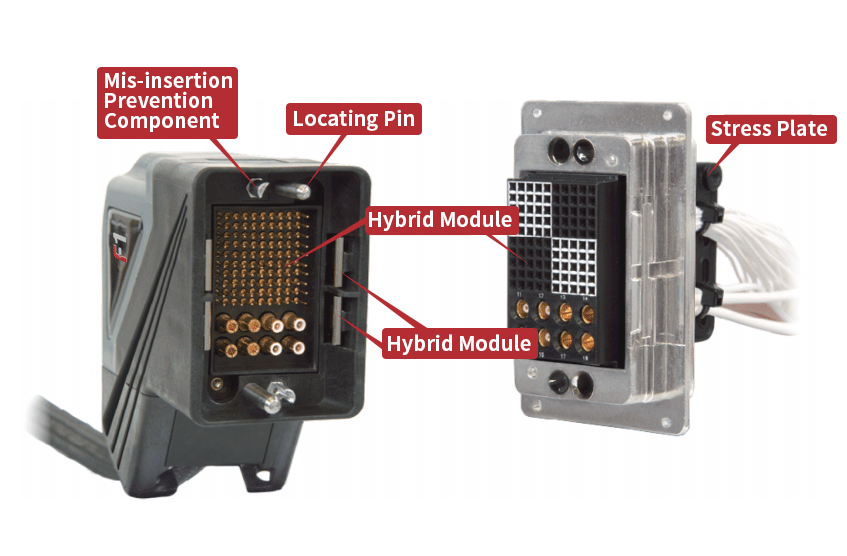

3, F1 handheld connector, an optional component for the prevention of misinsertion, a guide pin that helps to
locate the connection correctly, thus ensuring the proper contacting;
4, The F1 rectangular connector is capable of supporting applications with PCB boards.
5、The ITA end is concave so that the pins are safe from being damaged.
6、Replaceable module connectors, quick movable rear shell and structure for convenient and rapid maintenance;
7、Ensure that the number of insertions and removals exceeds 10,000 times.
F1 Handheld connector Application

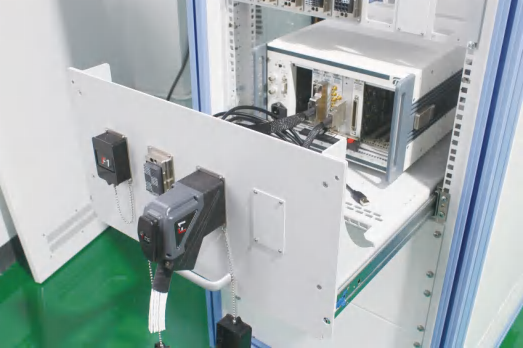

Small scale connection solution, suitable for small-sized connection needs, can be well applied in cabinet/panel/portable box connections, and is the best solution for I/O channels with few or mixed channels.
High-density handheld connector Support the integration of various signals
By type: power, signal, data, coaxial, optical fiber, pneumatic, fluid, etc.;
By signal characteristics: voltage, current, power, frequency, pressure, rate, etc.;
By cable connection method: select the corresponding connecting conductor for crimping or soldering;
Additionally, corresponding module selection is determined by the respective pinholes, and the appropriate module is selected based on the number of signals.
FAQ
Question: What are the core advantages of the F1 series 160P handheld connectors?
Answer: One of the main advantages is the compact design which makes manual plugging and unplugging quick and easy,thus it is very suitable for small-sized connection requirements. At the same time, a lifespan of more than 10,000 plugging and unplugging cycles is guaranteed.
Question: What flexibility does this connector have in terms of connection types?
Answer: There are optional hybrid modules that can be used to achieve various types of I/O connections such as normal signals, coaxial, and power.
Question: How can we avoid incorrect connection during the installation of this connector?
Answer: Optional configuration keys and guide pins can be used to effectively eliminate the possibility of wrong installation and at the same time ensure the correct connection.
