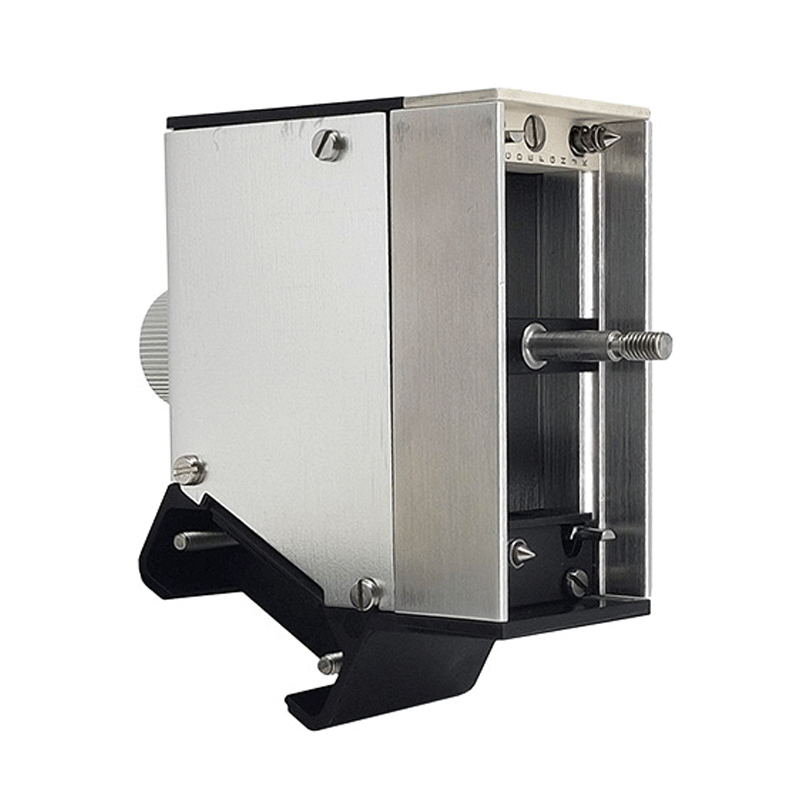

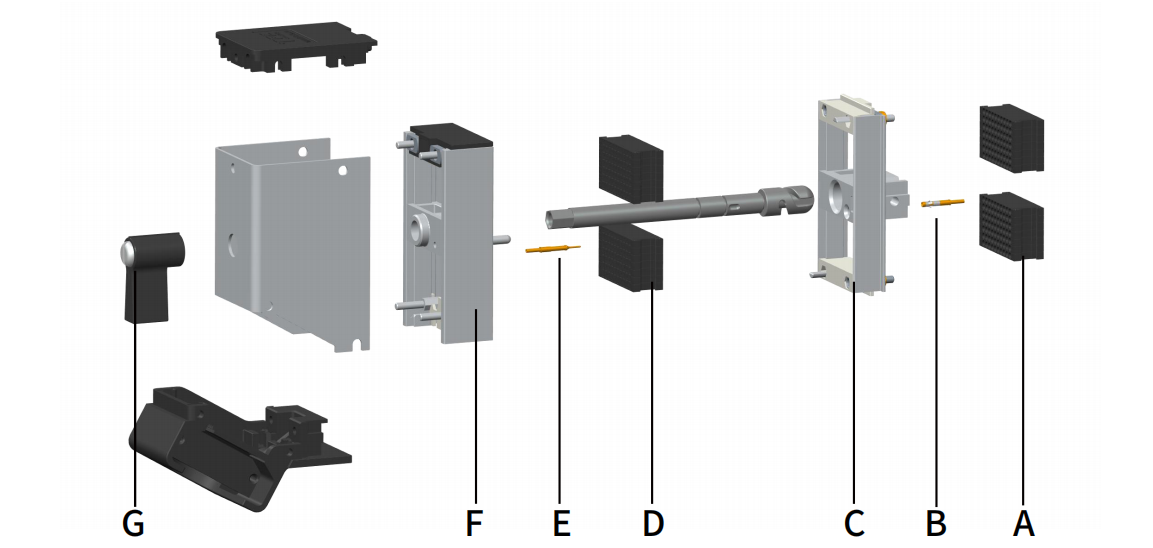

CMX Wire spring rectangular connector Structural schematic diagram
| A: Receiver Module | B: Socket | C: Receiver Frame | D: ITA Module | E: PinF: ITA | FrameG: Handle |
CMX Vibration Resistant Connector Selection
Selection steps for CMX rectangular connectors

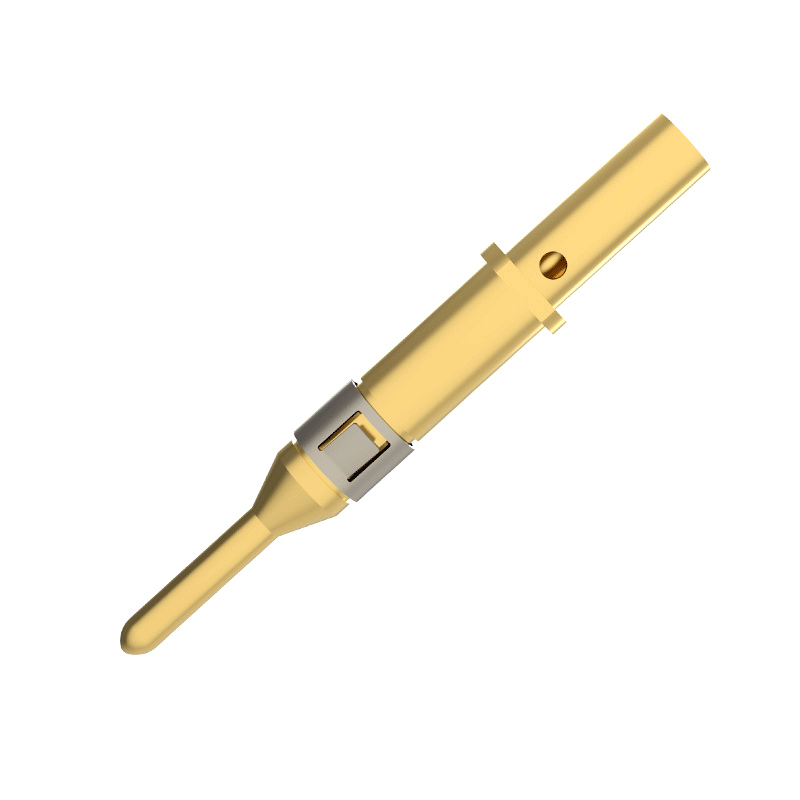

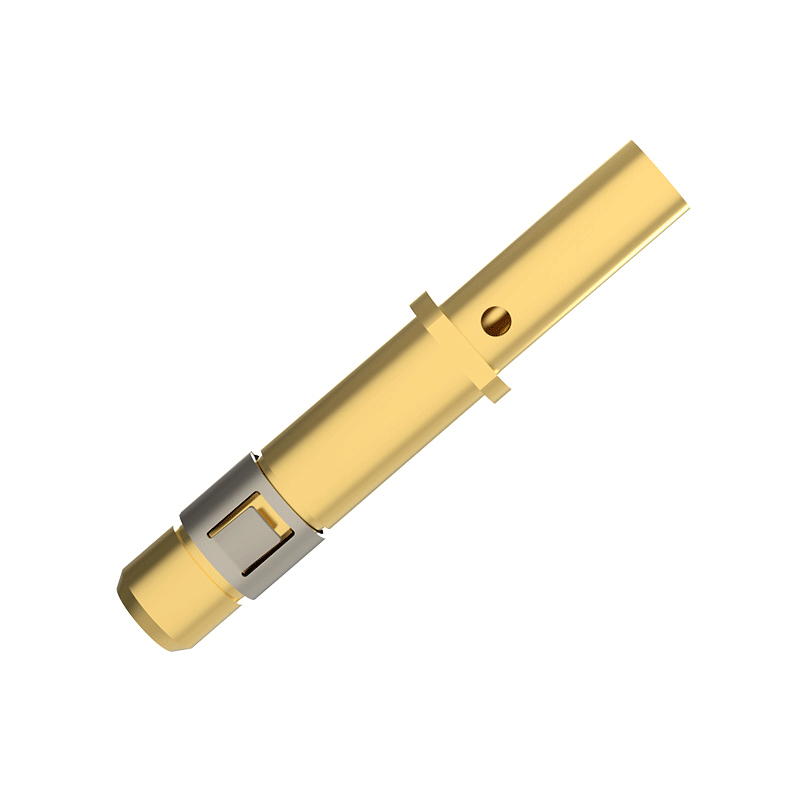

1. Determine pinholes according to the respective parameters. The primary technical indicators are: current and contact resistance

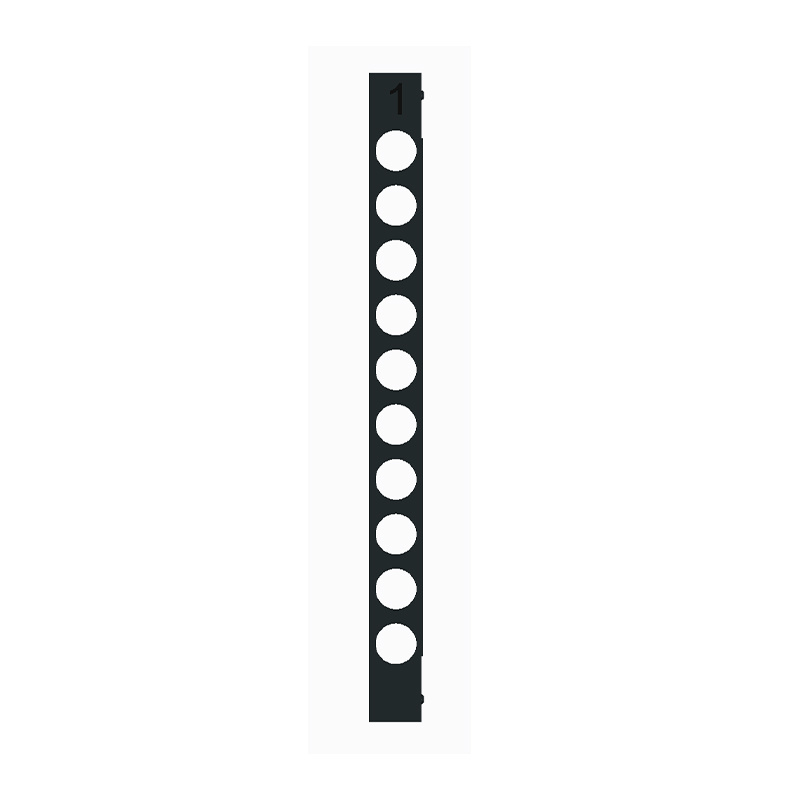

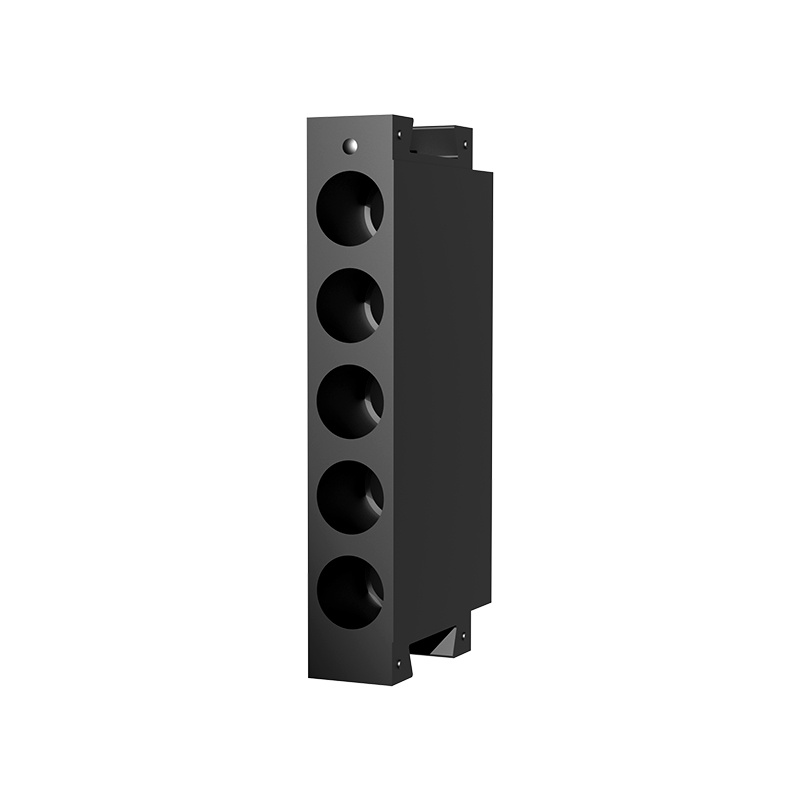

2. Select the module based on how many channels you need and what type of pinholes you have

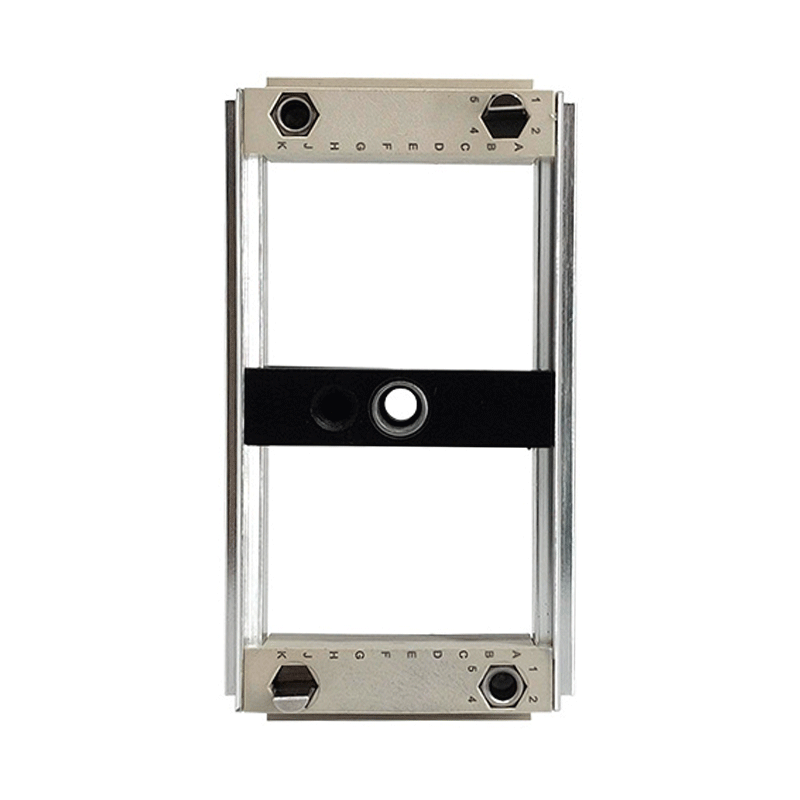

3. Based on the number of modules, decide on a suitable CMX series framework. The number of modules available for
selection is 11, 15, 19, 23, 27, 31, and 35
4. At last, choose the right accessories like cover plates, needle retraction devices, etc.

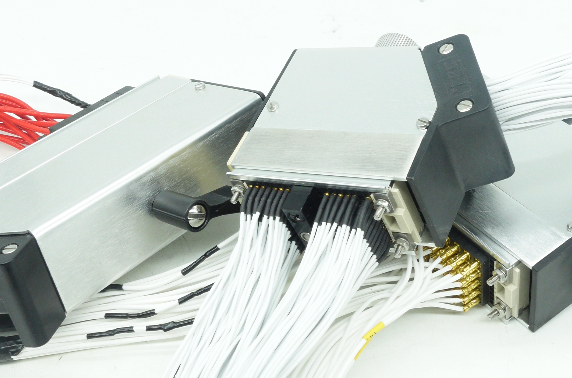

Advantages of CMX handheld connectors
High-density integration and high space utilization: The number of signal contacts are up to 1,000, thus a rectangular structure can be used for an integrated combination of signals, power supplies, and coaxial contacts without the loss of space. This double-space saving effect not only meets the requirements of high-density connections but also pushes the boundaries of the integration of the technology.
Strong seismic resistance and stability, suitable for harsh
environments: The female hole is constructed from a wire spring
structure, and hyperbolic surface contact technology is used. Even under extreme conditions of shock and vibration, the connection is retained, and the reliability of the working conditions is ensured.
Excellent shielding performance and pure signal transmission: With the
metal casing in place, it can effectively prevent electromagnetic
interference. Additionally, a maximum cable diameter of 25mm is supported andThe cable of different specifications is compatible; thus, the signal transmission can be considered safe and sound in even more complex environments. Extralong service life and reduced maintenance costs: Theoperation/interaction (insertion and extraction) life of the device can be 15,000 times, with itspinhole life being 150,000 times, meaning that its lifespan is much longer thanthat of traditional connectors. Its long-term use is very stable, therefore
maintenance costs and the time of frequent replacement, which is also caused byRenewals are both greatly reduced.
CMX handheld connector application
FAQ
Question: What are the advantages of the CMX series wire spring connectors in terms of shock resistance, and what technologies are adopted?
Answer: The seismic resistance of the CMX series wire spring connectors is one of their major advantages. The female hole utilizes a wire spring structure as well as a hyperbolic surface contact technology, and thus, the most rigorous impact and vibration environments can still guarantee high stability.
Question: Why can this connector carry signals, power supplies, and coaxial contacts simultaneously?
Answer: The connector features a high-density modular design. It integrates several different contact types within one compact rectangular structure to achieve an integrated connection solution, thus the use of additional
connectors are eliminated.
