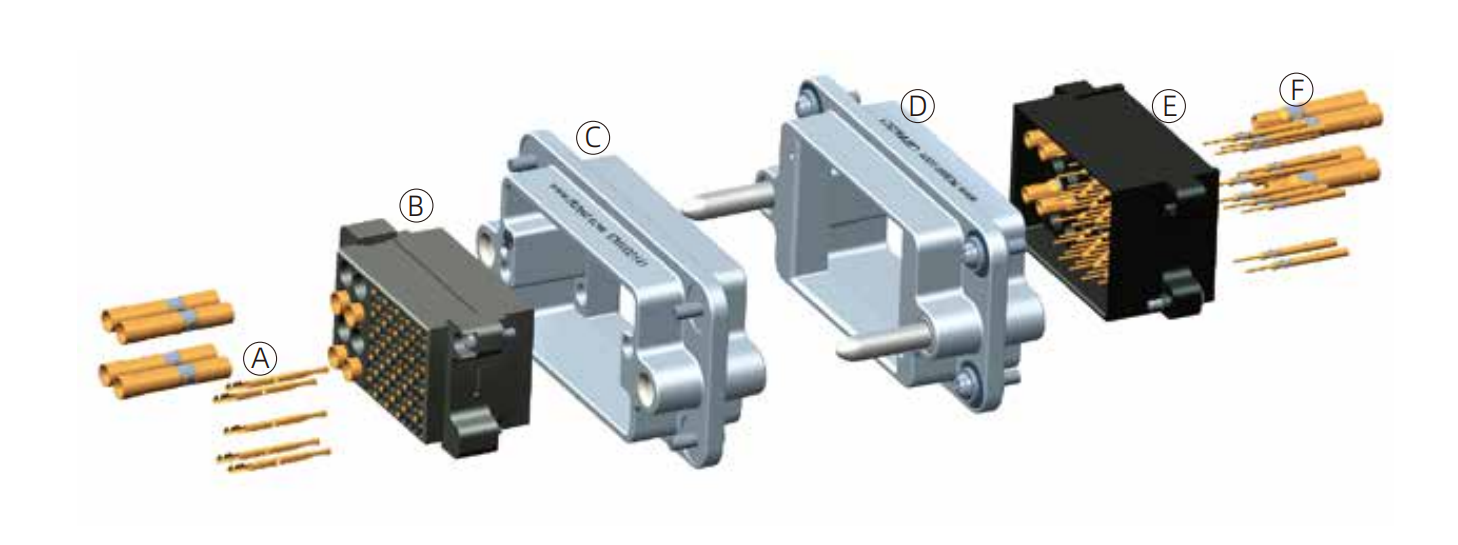

160P multi-pin automatic connector structure
A. Jack B. Receiver Module C. Receiver Frame D. ITA Frame
E. ITA Module F. Pin

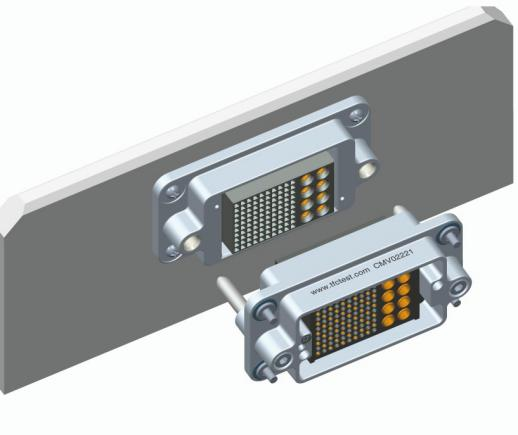

Product features of the M1 high-density I/O connector
1、Modular connectors, replaceable module connectors: The signal module was the compatible one, thus standard signal,
power, optical fiber, pneumatic, coaxial, and mixed-signal modules are supported. All modules of the F series are compatible.
2、Auto-plug connector: The design of the embedded ITA side helps the prevention of the
puncture of the pins.
3、High-density hybrid I/O connector: The large-scale connection capacity of the device
is the lead to it supporting up to 160 signal contacts.
4、High durability: Through 100,000+ cycle times, this product is able to guarantee.
M1 modular connector application
By means of an automatic testing device, one may employ it for linking test
adaptors, which are applicable in the following areas:
Automotive Electronics: Fully automatic automotive ECU test lines
Battery Packs: Semi-automatic or fully automatic PCBA test lines
Comprehensive Laboratories: Fully automatic mobile phone motherboard test lines
M1 Hybrid I/O connector
By type: power, signal, data, coaxial, optical fiber, pneumatic, fluid, etc..
By signal characteristics: voltage, current, power, frequency, pressure, rate, etc.;
By cable connection method: select the corresponding connecting conductor for crimping or soldering.
In addition to that, the corresponding module is determined by the respective pinholes, and the correct module will be chosen depending on the number of signals.
About Us
TengFang Technology Co., Ltd.
TFC is a high-tech national enterprise established in Changsha in 2015, which focuses on one-stopinterconnection solutions and carries the mission of "Making connections simpler".
The company is an integration of R&D, production, and sales with an independent and complete R&D system. A professional R & D team has been set up, focusing on the innovation of interconnection technology, and being deeply involved in the R & D of high-density, high-speed, and anti-interference interconnection products.
It has full R & D capabilities ranging from scheme design, prototype development, to technical verification, keeps on breaking through the core technical bottlenecks, and thus offers strong technical support for the customized solutions.
The core product sets of the company cover massive interconnection products, high-density connectors, PXI cable harnesses, etc. In addition to providing custom cable and interconnection solution services, the company is certified with the ISO9001 quality management system and the military qualification. Its products are broadly applied in the areas of aerospace, national defense, and military industry, automotive electronics, semiconductors, and other sectors.
FAQ
Question: What are the core design highlights of the M1 series connectors, and what advantages can they bring?
Answer: The core design features a non-meshing frame and an automatic docking connector, which can be
used directly with automatic testing equipment, thereby greatly minimizing the time of tests is greatly minimized and increasing the
accuracy is highly increased.
Question: What protective designs are there in the structure of the M1 series connectors?
Answer: The ITA end is designed as a hollow that faces inward, thus it can efficiently rescue the pins
from being damaged and maintain a high safety level when in use.
Question: How many signal points can this connector support at most?
Answer: It is capable of supporting up to 160 signal points, which is quite enough for medium and high-density connections. At the same time, a hybrid module can be chosen to be able to work with
different types of signal connections.
