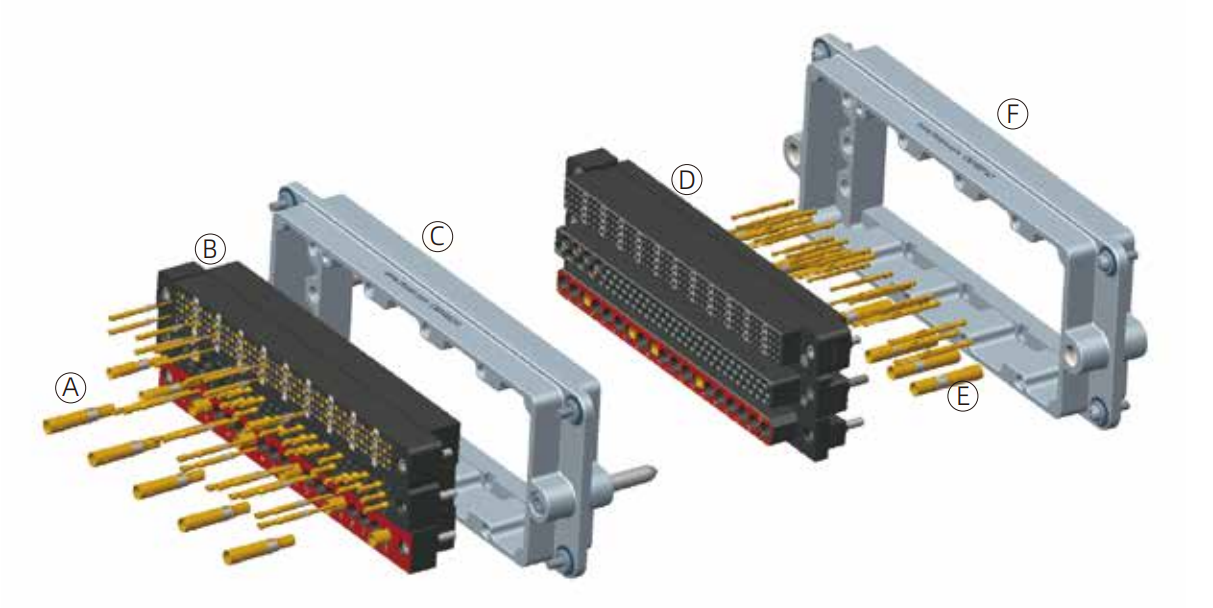

Structural diagram of 640P multi-pin automatic connector
A. Jack B. Receiver Module C. Receiver Frame D. ITA Module
E. Pin F. ITA Frame

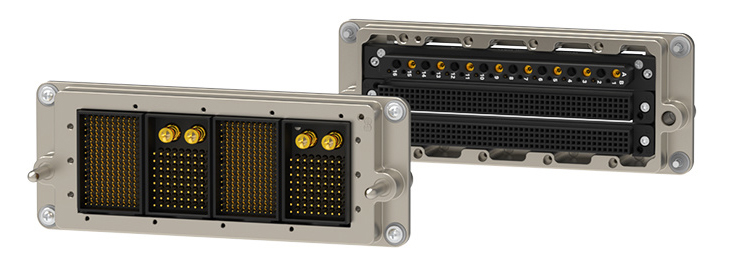

Product features of expandable rectangular connectors

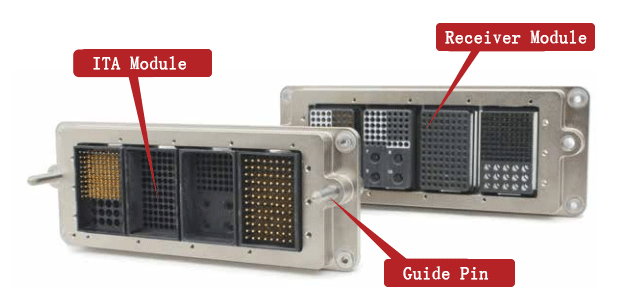

1. Automatic Test Connector: Features a non-engagement frame design, supports automatic docking, and can be coupled with automatic test equipment (ATE).

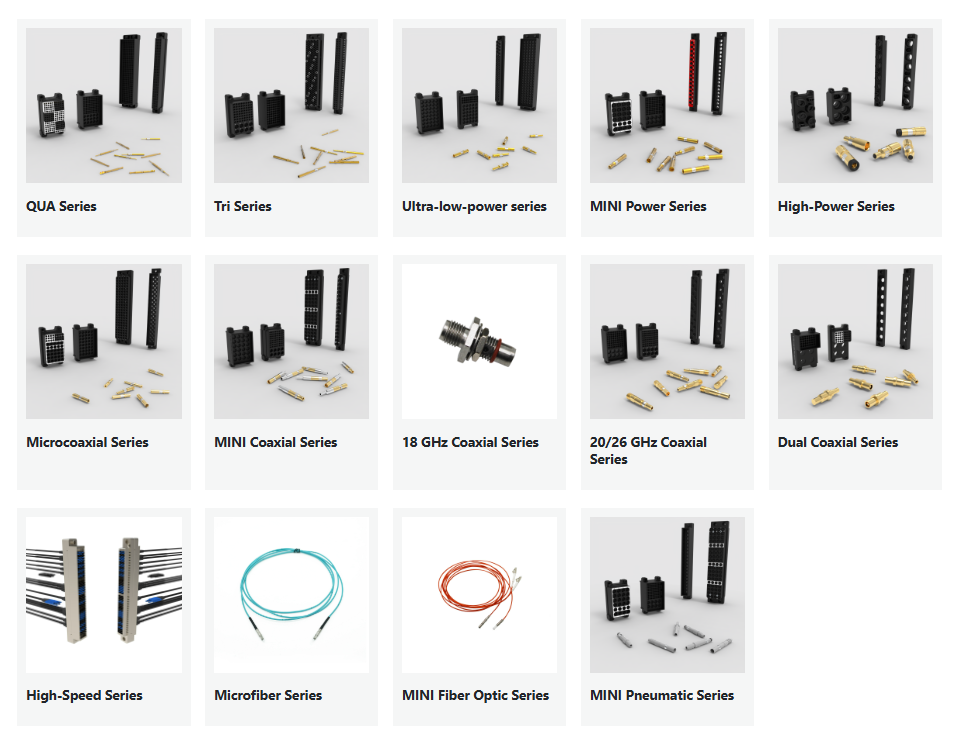

2. Highly compatible with signal modules: It supports signal modules such as standard signal, high-power, fiber optic, pneumatic, coaxial, and mixed-signal modules.
3. Expandable Rectangular Connector: Has great structural expandability. So, it can house 3 V Series modules horizontally and 4 F Series modules vertically, thus supporting 640 signal contact connections.
4. 640P Multi-pin Automatic Connector: The ITA side is a recessed design, which can thus avoid the pins from being damaged.

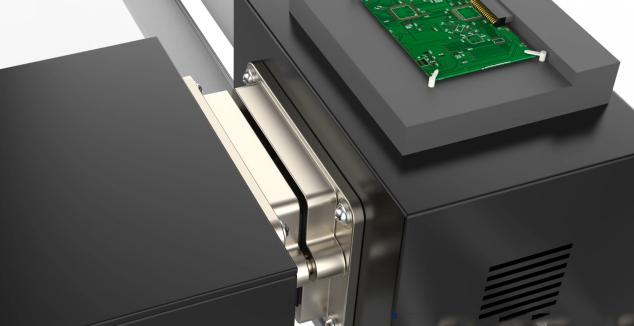

M3/4 automatic test connector application
Automotive ECU test connector
The M3/4 automatic test connector is compatible with all kinds of signals
By types, the main categories of cables would be power, signal, data, coaxial, optical fiber, pneumatic, fluid, and so on;
By signal characteristics, the foreign currencies could be voltage, current, power, frequency, pressure, rate, etc.;
If we talk about cable connection method, we will be talking about the connecting conductor for crimping or soldering which is selected accordingly;
Moreover, the correct module choice depends on the respective pinholes, and the suitable module is chosen according to the number of signals.
About Us
Tengfang Zhongke was created in 2015, and its main office is in Changsha, Hunan. The company has a more than six-thousand-square-meter standardized workshop and takes as its main slogan: "Making every connection more reliable, making every piece of data more accurate". The company is committed to providing customers with component products and solutions that have high performance. The company has the following three divisions as its businesses: Instrumentation, Connectors, and Sensors. Tengfang Zhongke is a national high-tech enterprise that integrates R&D, production, testing, and sales. It is a technology company that covers signal connection technology, signal conditioning technology, signal switching technology, and signal detection technology.
FAQ
Q1: In what way are the 640P multi-pin automatic connectors paired?
A1: It is possible to set up the automatic test connector with either 4 F series modules or 3 V series modules. The particular modules can be chosen based on the actual situation.
Q2: What measures are taken to ensure the insertion and extraction life of this expandable rectangular connector?
A2: The insertions and removals are counted to be more than 100,000 times, thus, it can fulfill the durability requirement of long-term automated operations.
