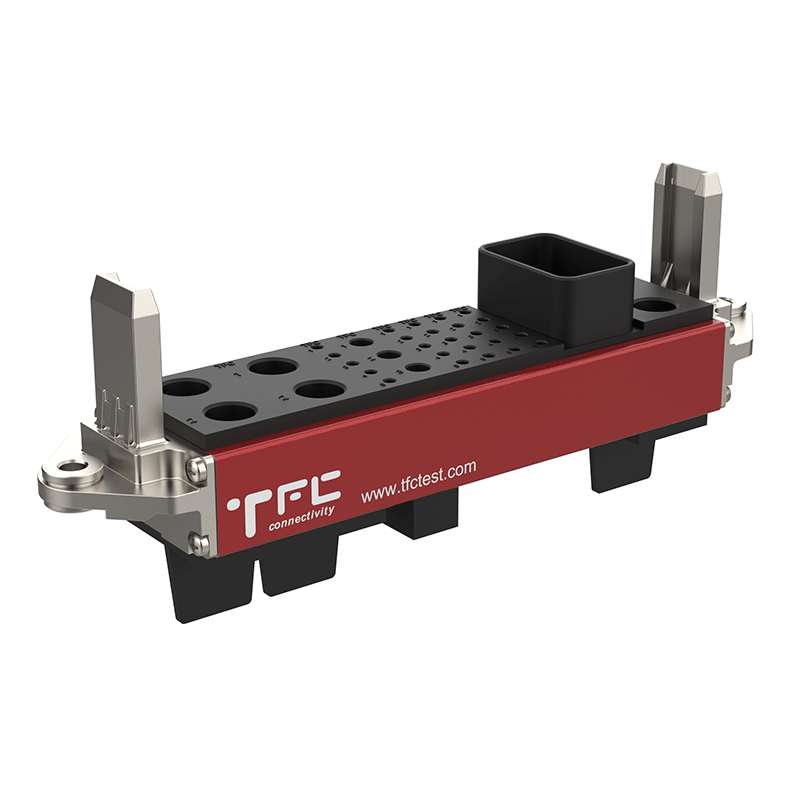

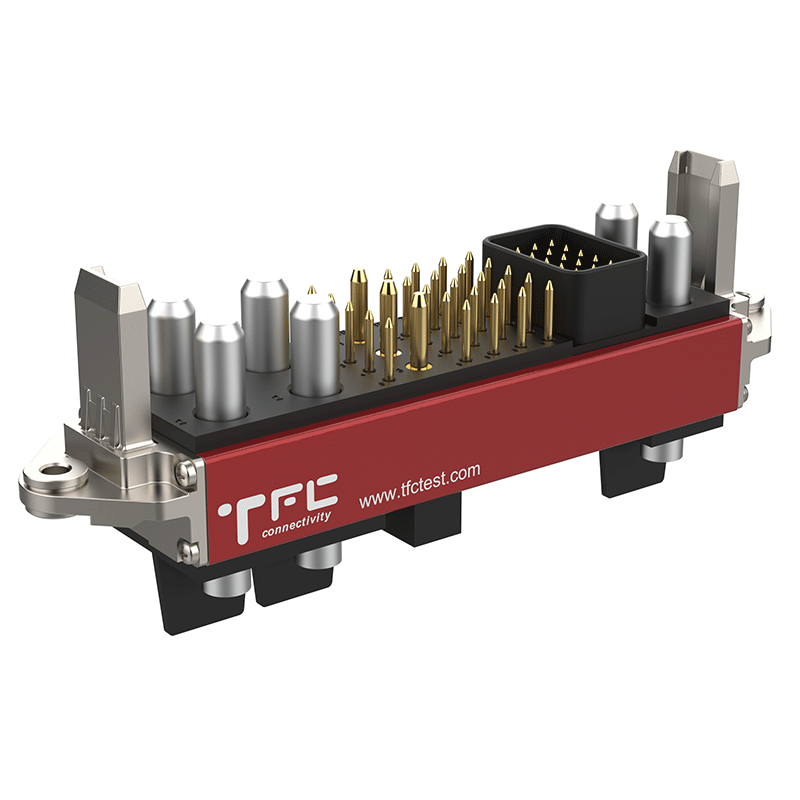

CMW power series

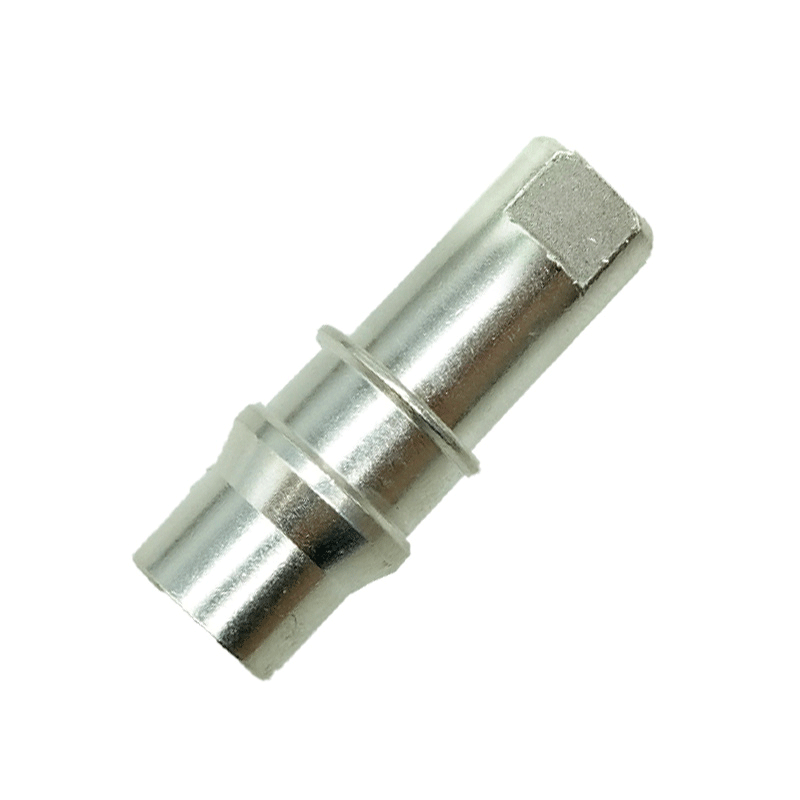

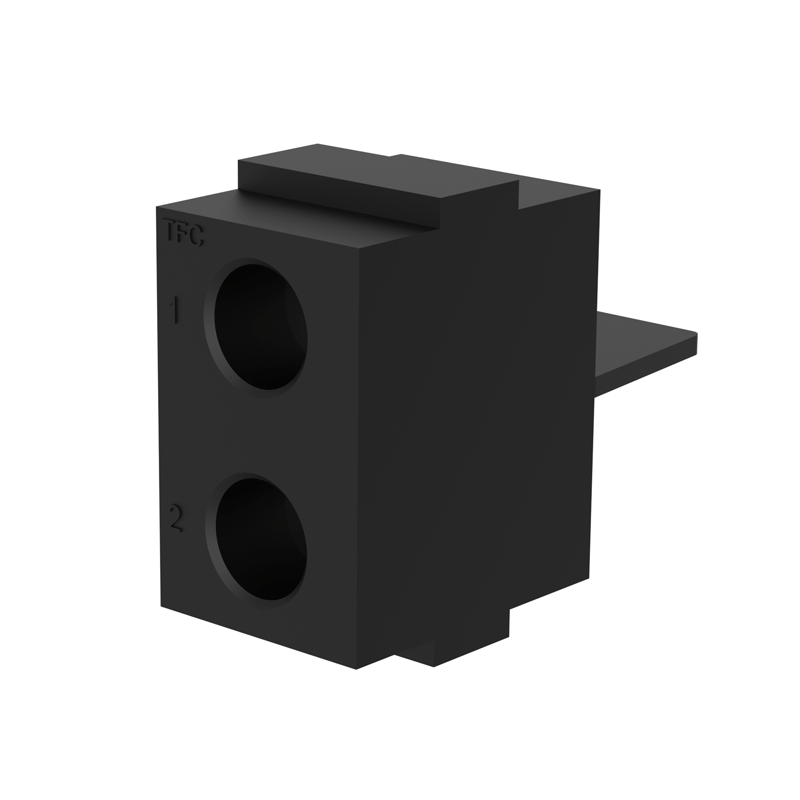

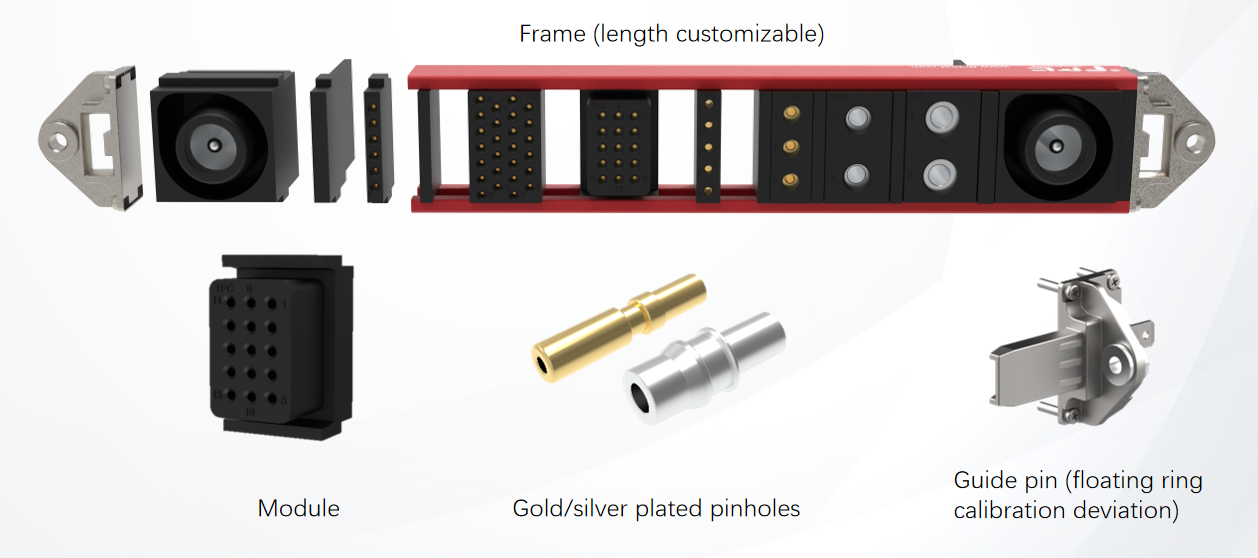

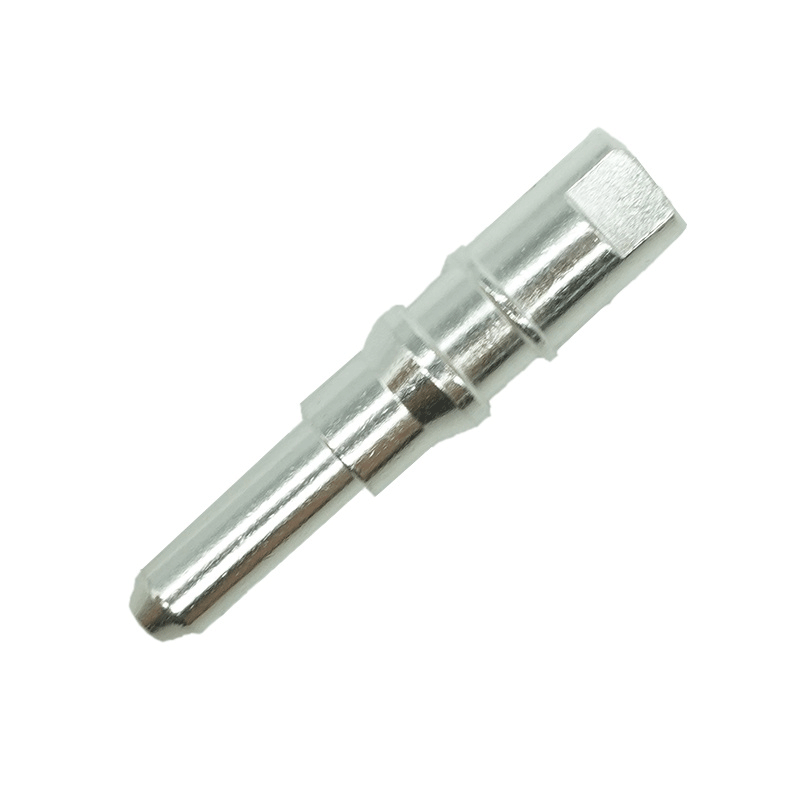

The CMW modular connector has a modular structure that unites "pinholes, modules, and frames" conceptually, thus allowing an adaptable setup depending on the actual needs. In the first instance, users are allowed to select the appropriate pinholes that meet their requirements, then they can combine them with the respective functional modules, and finally, they are free to decide on the frame length—with the provision for length changes from 18mm to 180mm.
Expandable Rectangular Connector Product features
Industrial rectangular connectors can be fully tailored to specific needs, they have unlimited scalability and configurability.
The CMW multi-type hybrid connector allows various types of connection signals such as pneumatic, data transmission, and high-voltage signals. High density, space-saving.
The CMW scalable rectangular connector assembly is made with the features of easy installation and disassembly thus allowing efficient maintenance and reducing the equipment downtime.
CMW robot connectors have good resistance to oil, impact and vibration. The industrial rectangular connector is able to carry a current of 1000A.
The cycle insertion and extraction life of the drone connector is beyond 100,000 times.
The drone connector is fabricated with special materials and has an extremely strong anti-vibration property.
CMW industrial rectangular connectors are the result of integration of R&D, design, production, testing and sales, and being very cost-effective.
Expandable Rectangular Connector Application
Quality system
The company has been awarded National Standard (GB) Quality Management System Certification as well as Weapon Equipment (GJB) Quality System Certification. It has furthermore set up a qualitatively fully independent internal quality inspection system. Every product is subject to rigorous full-process testing under national standards (GB) and weapon equipment standards (GJB) to guarantee performance stability and compliance of the product.
FAQ
Q1: How much customization can be done for this industrial rectangular connector?
A1: It is capable of full customization. The module configuration can be adjusted by the customer in any way to suit the connection requirements of different scenarios.
Q2: Are there any limits for the frame length of the connector if I want to customize it?
A2: Yes, there are certain limits. The frame length has to be between 18mm and 180mm. The reason is that if it is too short, it may cause unstable installation of the guide pins; and if it is too long, it may prevent the deformation of the connector due to the force.
Q3: I have a drone connector and a robot connector but I don't know which one to select. What should I do? Will I get the support I need?
A3: The product features connectors based on requirements and is great for the drone and robot industries. Also, you may reach our customer service for connecting with the engineers who will provide you with the technical support and help you in the selection.
