CMC131707

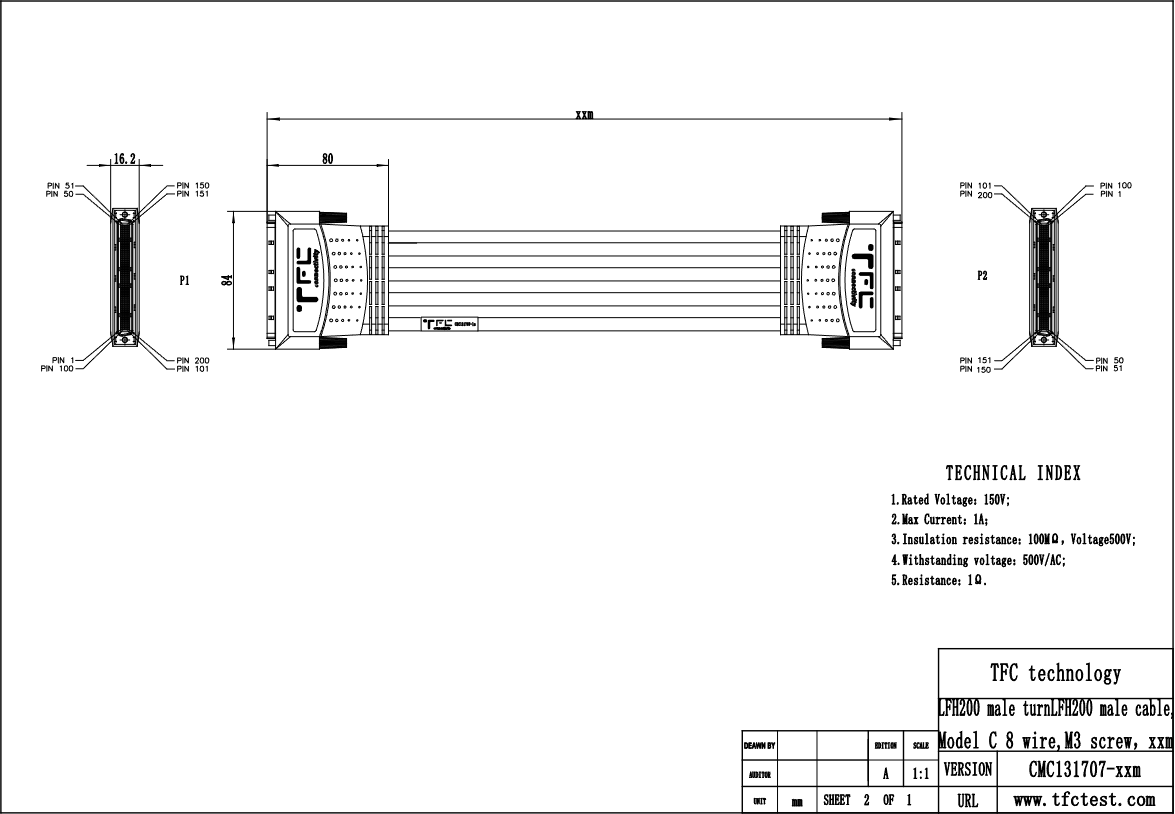

It is an LFH200 male to LFH200 male cable, model C with 8 wires and M3 screws
| Product Parameters | ||
|---|---|---|
| Specification/Model | CMC131707 | |
| Typ | LFH200 Male to LFH200 Male Cable | |
| Maximum Current | 1A | |
| Working Voltage | 150V | |
| Standard Length | 1m, 2m | |
| Connector Parameters | Type | LFH200 Male |
| Rated Voltage | 150V | |
| Rated Current | 1A | |
| Contact Material | Copper with Gold Plating | |
| Contact Resistance | ≤35mΩ | |
| Wire Parameters | Wire Type | Shielded Twisted Pair |
| Rated Voltage | 300V | |
| Conductor Material | Copper with Tin Plating | |
| Number of Conductor Strands | 7/0.127(28awg) | |
| Wire Resistance | 0.4Ω/m(28awg) | |
| Shielded or Not | Yes | |
| Conductor Insulation Material | PP | |
| Shell Material | PVC | |
| Cable Outer Diameter (O/D) | 8.0mm | |

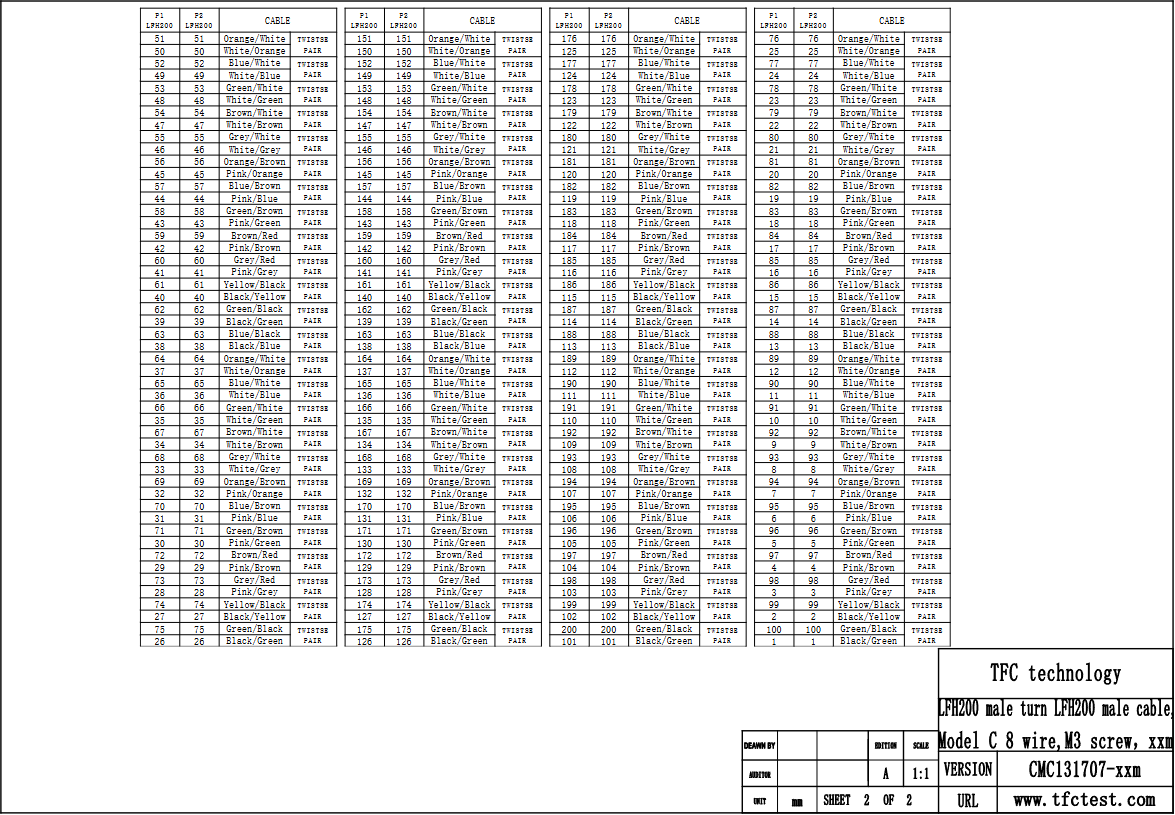

PXI cable type C sequence
The advantages of LFH200 connectors
The material of the contact is very good: The base material is copper, and it is plated with gold. The gold plating layer has good electrical
conductivity, oxidation resistance, and corrosion resistance, which not only helps to stabilize signal transmission,
but also minimizes the influence of oxidation and corrosion on connection performance, thus prolonging the service life.
Signal transmission loss is kept at a minimum: The contact resistance is ≤35mΩ. The low contact resistance can significantly reduce the energy loss
during signal transmission, thus the latter becomes more efficient and accurate. It also makes the device suitable for scenarios
that require very high signal integrity levels (like those in PXI systems for modular testing).
Have a strong load capacity and commendable reliability: The rated voltage of 150V and the rated current of 1A are such that
even when operating stably within the specified power range, power consumption is kept at low levels, thus the device is
able to meet power requirements for routine testing or signal transmission. Moreover, it is a safer and more reliable way
of using the device, and it is less probable that the unit will be damaged by overloading.
Quality guarantee of PXI cable Type C

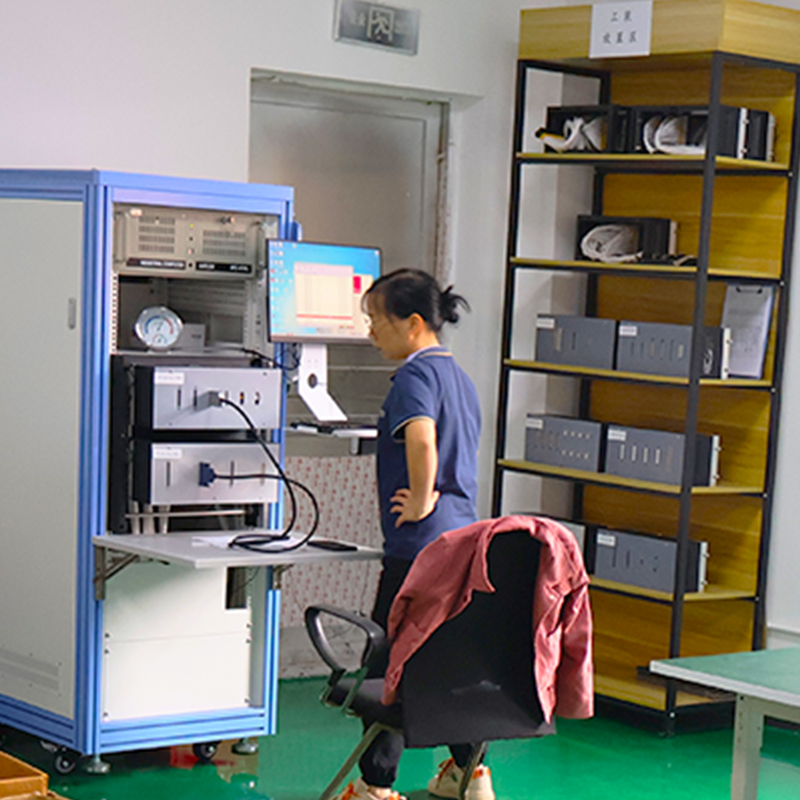

TFC With the help of our independently developed specialized cable testing equipment, we perform a 100% full inspection on every batch of cables—covering the entire workflow with zero blind spots. The equipment is very precise in capturing every testing index and is very rigorous in guarding every quality checkpoint during production and shipment. This greatly facilitates the process of meeting high-quality standards and requirements for each cable that is delivered to the customers. By utilizing our great technical capabilities, we are able to strengthen our quality shield and, with unyielding faithfulness, maintain our promise to product reliability and customer trust.
FAQ
Question: What lengths does the CMC131707 cable come in? Is it possible to have a custom length?
Answer: The standard lengths are one meter and two meters, and it is possible to have custom lengths as well.
Question: What are the rated voltage and rated current of the connector, respectively?
Answer: The rated voltage of the connector is 150 volts, whereas the rated current is 1 amp.
Question: Does this cord come with a shielding feature?
Answer: Yes, it has a shielding feature.
