CMC131200 VHDCI68Pin male connector to a SCSI68Pin female connector
Product Parameters
| Specifications/Model | CMC131200 | |
| Type | SCSI 68-pin female to loose wire | |
| Current | Max 0.5A | |
| Operating Voltage | 30V | |
| Standard Length | 1m, 2m | |
| Connector Parameters | Type | VHDCI 68 Male |
| Rated Voltage | 250V | |
| Rated Current | 0.5A | |
| Contact Material | Copper plated gold | |
| Contact Resistance | ≤35mΩ | |
| Connector Parameters | Type | SCSI 68 Female |
| Rated Voltage | 250V | |
| Rated Current | 1A | |
| Contact Material | Copper plated gold | |
| Contact Resistance | ≤35mΩ | |
| Wire Parameters | Wire Type | Shielded twisted pair |
| Rated Voltage | 30V | |
| Conductor Material | Tin-plated copper | |
| Conductor Strands | 7/0.127(28awg) | |
| Wire Resistance | 0.4Ω/m(28awg) | |
| Shielded | Yes | |
| Conductor Insulation Material | PP | |
| Sheath Material | PVC | |
| Cable O/D | 8.5mm | |

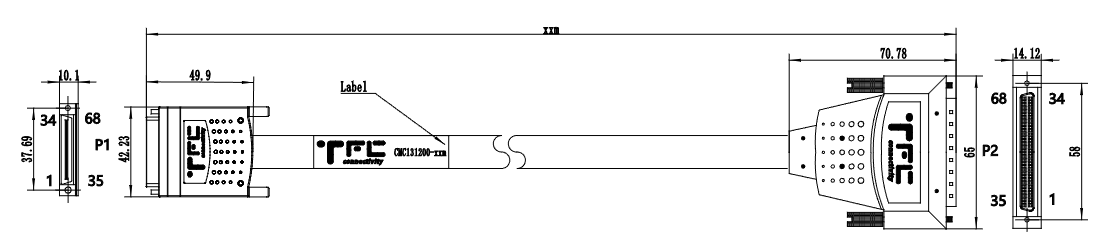

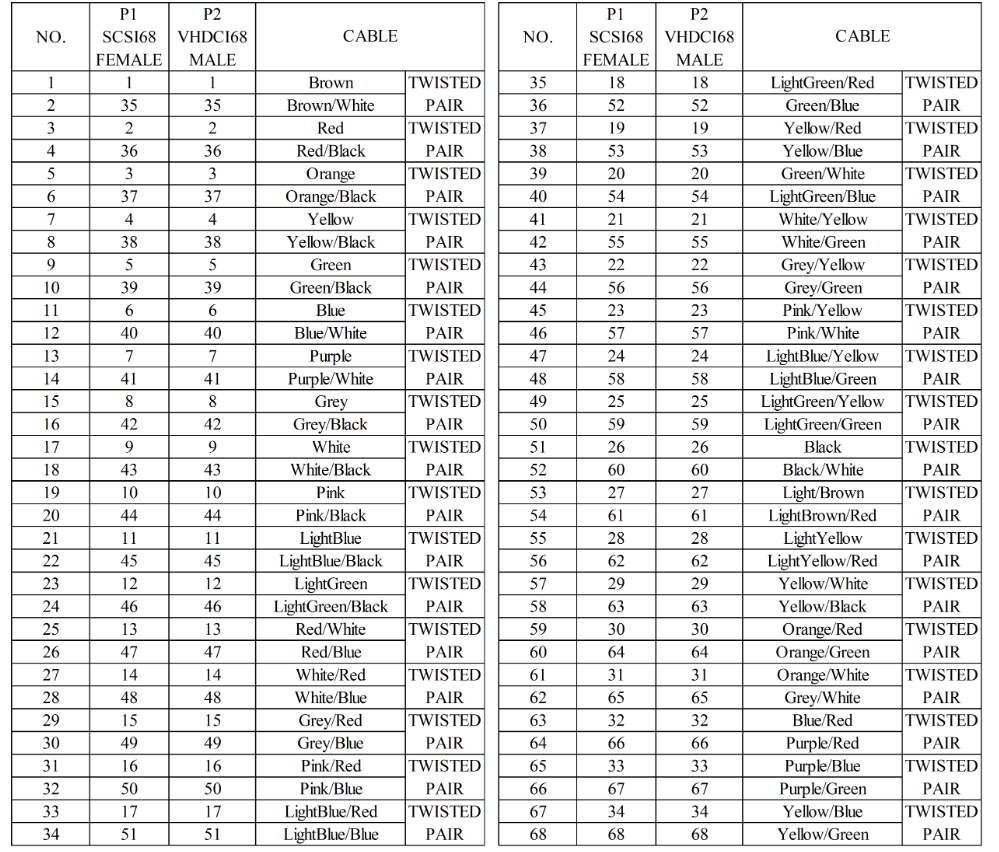

The 2D diagram and wire sequence diagram of the CMC131200 68P connector
CMC131200 68P connector shielded cable The advantages
The cable structure is a twisted pair that is shielded. Thus, the outer PVC sheath and the internal
shielding layer not only provide a double protection against the electromagnetic interference (EMI) and radio frequency interference (RFI) but also help maintain the signal integrity in complicated
electrical environments. Basically, it is the best cable in high precision test scenarios.
The connector is charmingly engineered so that two kinds of cables can be inserted into one single
board card at the same time. In comparison with the conventional straight-head style, about 40% of
the installation space is saved and it is mainly suitable for a high-density integrated PXI chassis environment.
Apart from 1m and 2m standard lengths, it also can be done in 0.5m, 1.5m and other length m specifications
by the user. It is able to wire the length of the installation that is the layout of the equipment flexibly and thus can avoid the cable redundancy or insufficient length problems.
About Us
Tengfang Zhongke is a national high-tech enterprise which was established in Changsha in 2015 and has been focused on providing one-stop interconnection solutions while keeping the mission of "Making connections simpler". The company is a combination of R&D, production, and sales, and has a fully independent and complete R&D system. It has formed a professional R&D team that concentrates on interconnection technology innovation and deeply involved in the R&D of the interconnection products that are high-density, high-speed, and anti-interference. The company is equipped with full-process R&D capabilities starting from scheme design, prototype development to technical verification, constantly it breaks through core technical bottlenecks, and thus, it provides firm technical support for customized solutions. Its core materials are capable of covering massive interconnection products, high-density connectors, PXI cable harnesses, etc. It offers the services of the customized cable and interconnection solution and has obtained the ISO9001 quality management system and military qualification certification. Therefore, its products are utilized in aerospace, national defense and military industry, automotive electronics, and semiconductor, and other areas.
FAQ
Q1: What are the two types of connectors that the CMC131200 cable is fitted with?
A1: The cable features two different kinds of connectors: a VHDCI68 male connector and a SCSI68 female connector.
Q2: What kind of wire is inside the cable and is it protected by a shield?
A2: It is a shielded twisted-pair cable and it has a shielding function.
Q3: What is the conductor material, how many strands are there, what is the specification and what is the resistance value per meter of the wire?
A3: The conductor material is tinned copper, the strand specification is 7/0.127 (28awg), and the wire resistance is 0.4Ω/m (28awg).
