CMC131706

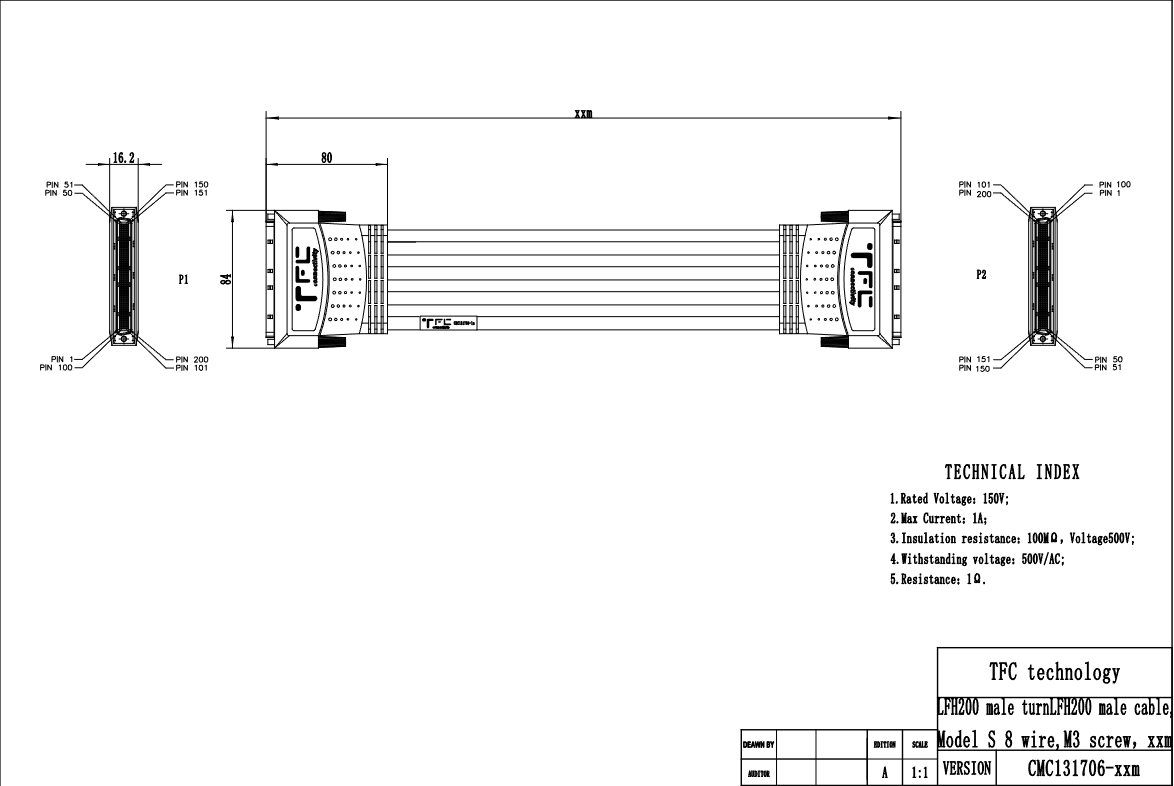

LFH200 male connector to LFH200 male connector cable, S model 8-wire, M3 screw
| Product Parameters | ||
|---|---|---|
| Model | CMC131706 | |
| Type | LFH200 Male to LFH200 Male Cable | |
| Current | 1A | |
| Voltage | 150V | |
| Standard Length | 1m, 2m | |
| Connector Parameters | Type | LFH200 Male |
| Rated Voltage | 150V | |
| Rated Current | 1A | |
| Contact Material | Copper with Gold Plating | |
| Contact Resistance | ≤35mΩ | |
| Wire Parameters | Wire Type | Shielded Twisted Pair |
| Rated Voltage | 300V | |
| Conductor Material | Copper with Tin Plating | |
| Number of Conductor Strands | 7/0.127(28awg) | |
| Wire Resistance | 0.4Ω/m(28awg) | |
| Shielded or Not | Yes | |
| Conductor Insulation Material | PP | |
| Shell Material | PVC | |
| Cable Outer Diameter (O/D) | 8.0mm |

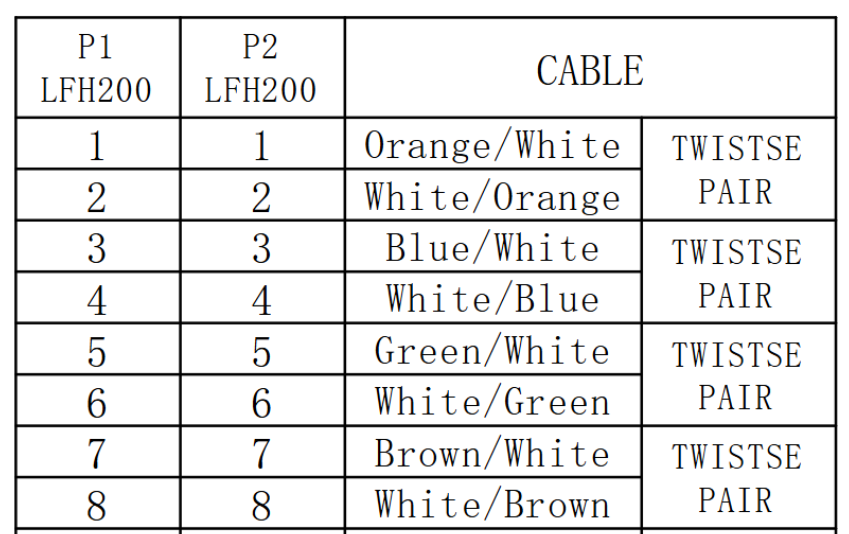

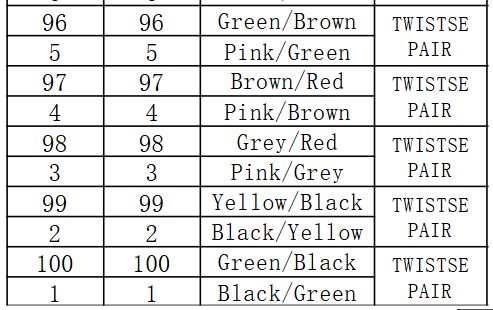

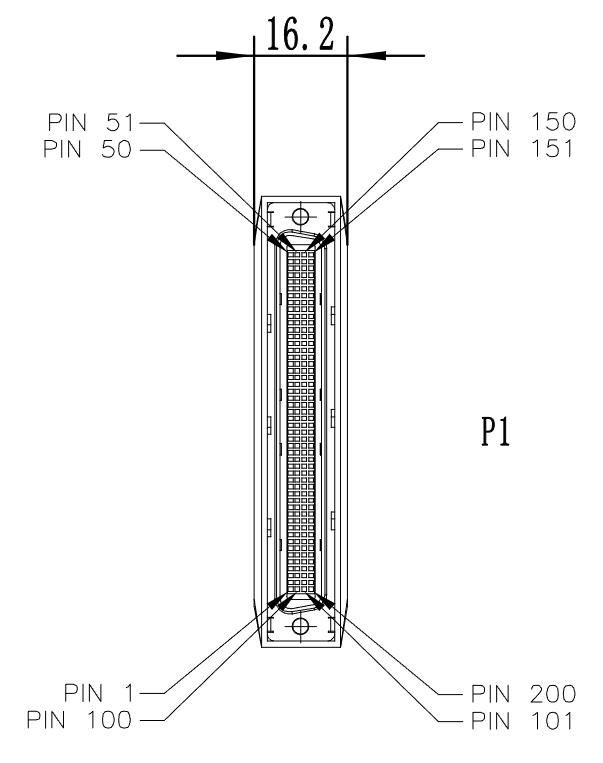

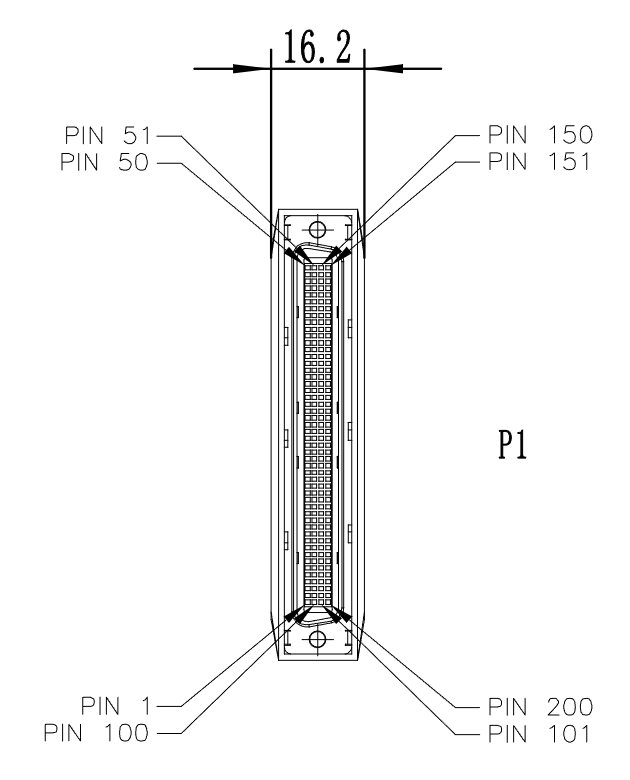

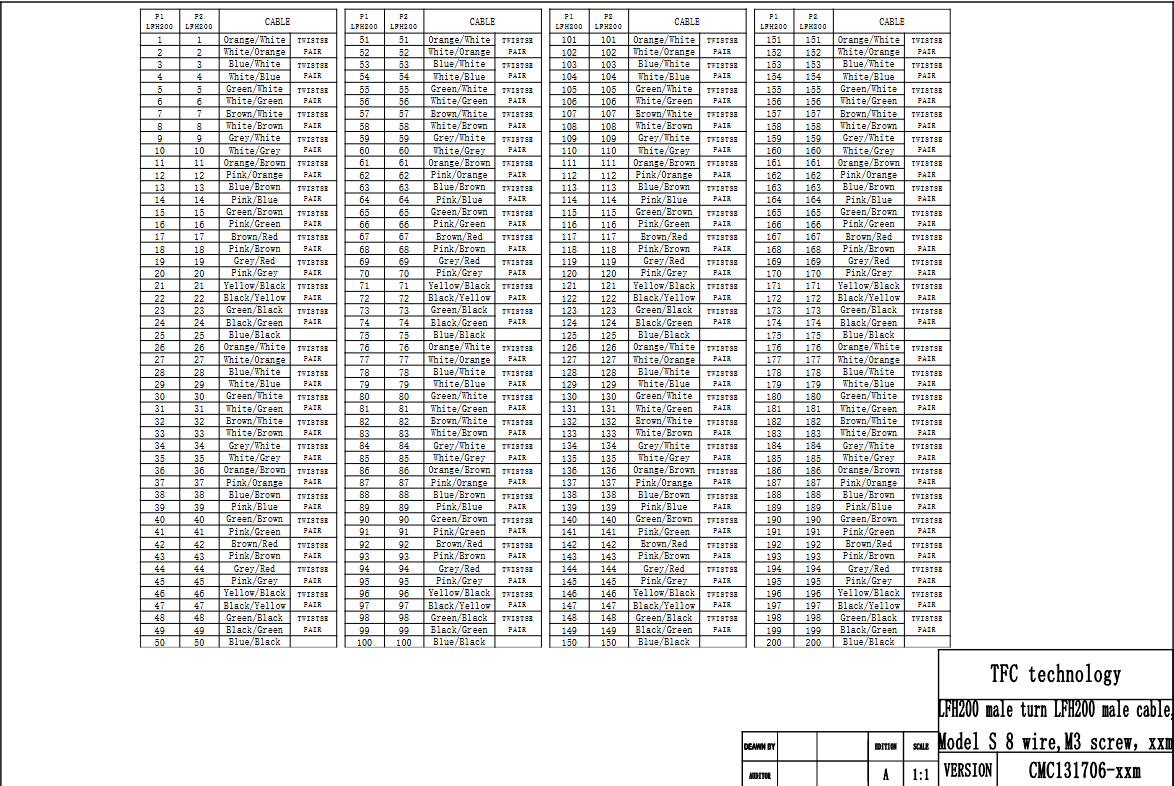

Cable sequence diagram of LFH200 male to LFH200 male PXI board card
PXI board card cable Features
PXI Cable (Type S, LFH200 Male-to-Male Connector) features a two-layer high-grade shielding structure. The jacket on the outer layer is a rigid PVC, while the inner layer is one-piece interference-resistant aluminum foil with tinned copper braided shielding. With full shielding technology, it is a very effective barrier against electromagnetic interference and at the same time keeps the signal pure.
The cable core is multi-strand tinned copper, which not only enhances the cable's electrical conductivity but also its flexibility, thereby making the cable soft in texture and handy in routing. A specially stretch-resistant design is added at the pigtail to not only improve the durability but also keep the signal stability and reliable performance in balance.
LFH200 male to LFH200 male Independently developed and generated
TFC has an independent and professional R&D department, and comprehensive technological innovation is its main driving force. Our R&D team is devoted to independent R&D and technological breakthroughs in the cable and connector domain, and they are in complete control of the entire process from core scheme design, performance optimization, to new product iteration.
Being deeply involved in the adaptation of professional scenarios such as test and measurement, industrial automatic, etc, we depend upon our original technical strength to assure product stability, compatibility, and core competitiveness so that we can offer customers tailored and highly reliable signal transmission technology solutions.
By sticking to the main point of independent innovation, TFC is the sole responsible for the whole R&D and manufacturing process of the LFH200 series cables and corresponding connectors. From the core design to the precision manufacturing, we are in full control of every chain to achieve a high degree of unity in terms of product performance, compatibility, and reliability. Taking advantage of indigenous technical capabilities, we enable the leading-edge scenarios of testing and measuring, industrial automation, and we are a source of stable and versatile signal transmission solutions for the customers.
FAQ： The differences between Type S and Type C cables
Tengfang designed the LFH200 cable to be either the C version or the S version.
The major difference between them is that the wire The sequence relationship of the twisted pairs is different.
The S model at the LFH200 connector end has the twisted-pair arrangement of 1/2 pair and 3/4 pair,
which are arranged in ascending and descending order, respectively, as the figure shows：
While the twisted-pair arrangement of the C model at the LFH200 connector end is one pair of PIN1/100 and two pairs of PIN 99, as the figure shows：
