TF-SCB100A
TF-SCB100A 100PIN anti-noise shielded I/O connector box
| Specifications/Model | TF-SCB100A | |
| Type | TF-SCB100A Noise-shielded I/O Junction Box | |
| Current | Max.1A | |
| Operating Voltage | 300V | |
| Connector Parameters | Type | SCSI100 Female Connector |
| Rated Voltage | 250V | |
| Rated Current | 1A | |
| Contact Material | Gold-plated Copper | |
| Contact Resistance | ≤35mΩ | |
| Screw Terminal Parameters | Rated Voltage | 300V |
| Rated Current | 8A | |
| Contact Material | Gold-plated Copper | |
| Contact Resistance | ≤35mΩ | |

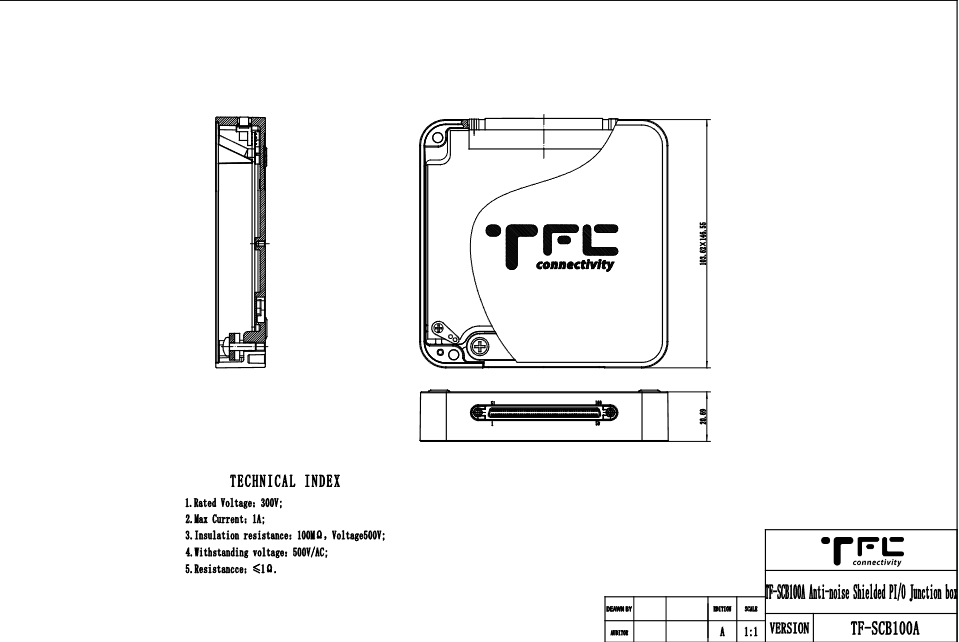

2D drawing of the junction box
Advantage
By the features of the TF-SCB100A 100PIN Noise-Resistant Shielded I/O Junction Box, its advantages mainly focus on anti-interference capability, transmission performance, adaptability, and practicality. They are as follows:
Strong anti-interference capability: With its "noise-resistant shielding" design, this can isolate an external electromagnetic interference source completely, keep signal I/O transmission stable, and can be used in situations where the highest signal purity is a prerequisite.
Reliable transmission performance: The connector and the screw terminal both use gold-plated copper contacts with a contact resistance of ≤35mΩ, thus, by providing excellent conductivity and corrosion resistance, the signal/current transmission loss is minimised. It can stably support the transmission of current and a certain level of voltage with a rated current of 1A and an operating voltage of 300V;
High interface integration: Through a SCSI100 female connector design, it allows "mass interconnection" and can be connected with SCSI100 male connector cables. It gives the possibility of centralised connection of multiple channels of I/O signals or devices, the complexity of scattered wiring is reduced, and the wiring efficiency is improved.
High practicality: As a specialised junction box, it not only makes the interface connections more standard but also protects the internal contacts of the box, thereby reducing wear caused by the external environment, and later inspection, repair, and maintenance are facilitated. The intermediate connection of I/O signals in industrial or electronic equipment is the right place for it.
About Us
Tengfang Zhongke is a national high-tech enterprise founded in Changsha in 2015, focusing on one-stop interconnection solutions and adhering to the mission of "Making connections simpler". The company integrates R&D, production, and sales, with an independent and complete R&D system. It has established a professional R&D team, focusing on interconnection technology innovation, and deeply engaged in the R&D of high-density, high-speed, and anti-interference interconnection products. It possesses full-process R&D capabilities from scheme design, prototype development to technical verification, continuously breaks through core technical bottlenecks, and provides solid technical support for customized solutions. Its core products cover massive interconnection products, high-density connectors, PXI cable harnesses, etc. It provides customized cable and interconnection solution services, and has passed ISO9001 quality management system and military qualification certification. Its products are widely used in aerospace, national defense and military industry, automotive electronics, semiconductors and other fields.
FAQ
Question: What kind of connector does the TF-SCB100A junction box have?
Answer: The specified connector is a SCSI100 female connector
Question: What are the main performance features of the tf-scb100a Junction box?
Answer: The device is equipped with an anti-noise shielding function and copper gold-plated contacts that are highly stable
, which are able to guarantee the reliability of signal transmission and can be used for 100-pin signal connection requirements.
