CMC121700

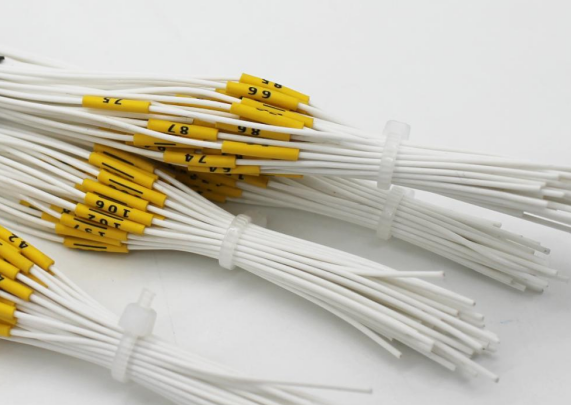

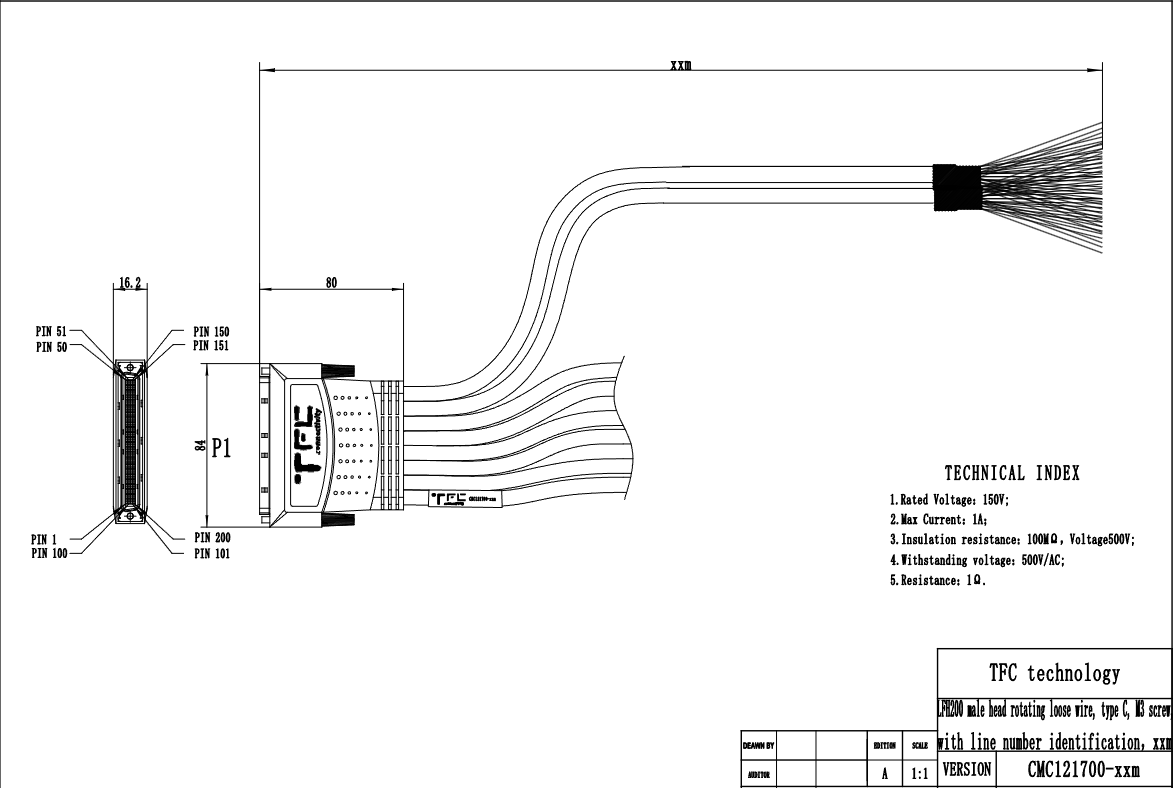

LFH200PIN male adapter loose wire Model C, M3 screw, with wire number marking
| Item | Sub-item | Specification |
|---|---|---|
| Specification/Model | CMC121700 | |
| Type | 200PIN Male Header to Stranded Wires | |
| Maximum Current | 1A | |
| Working Voltage | 150V | |
| Standard Length | 1m, 2m | |
| Connector Parameters | Type | LFH200 Male Header |
| Rated Voltage | 150V | |
| Rated Current | 1A | |
| Contact Material | Copper with Gold Plating | |
| Contact Resistance | 35mΩ | |
| Wire Parameters | Wire Type | Shielded Twisted Pair |
| Rated Voltage | 300V | |
| Conductor Material | Copper with Tin Plating | |
| Number of Conductor Strands | 7/0.127(28awg) | |
| Wire Resistance | 0.4Ω/m(28awg) | |
| Shielded or Not | Yes | |
| Conductor Insulation Material | PP | |
| Shell Material | PVC | |
| Cable Outer Diameter (O/D) | 8.0mm | |

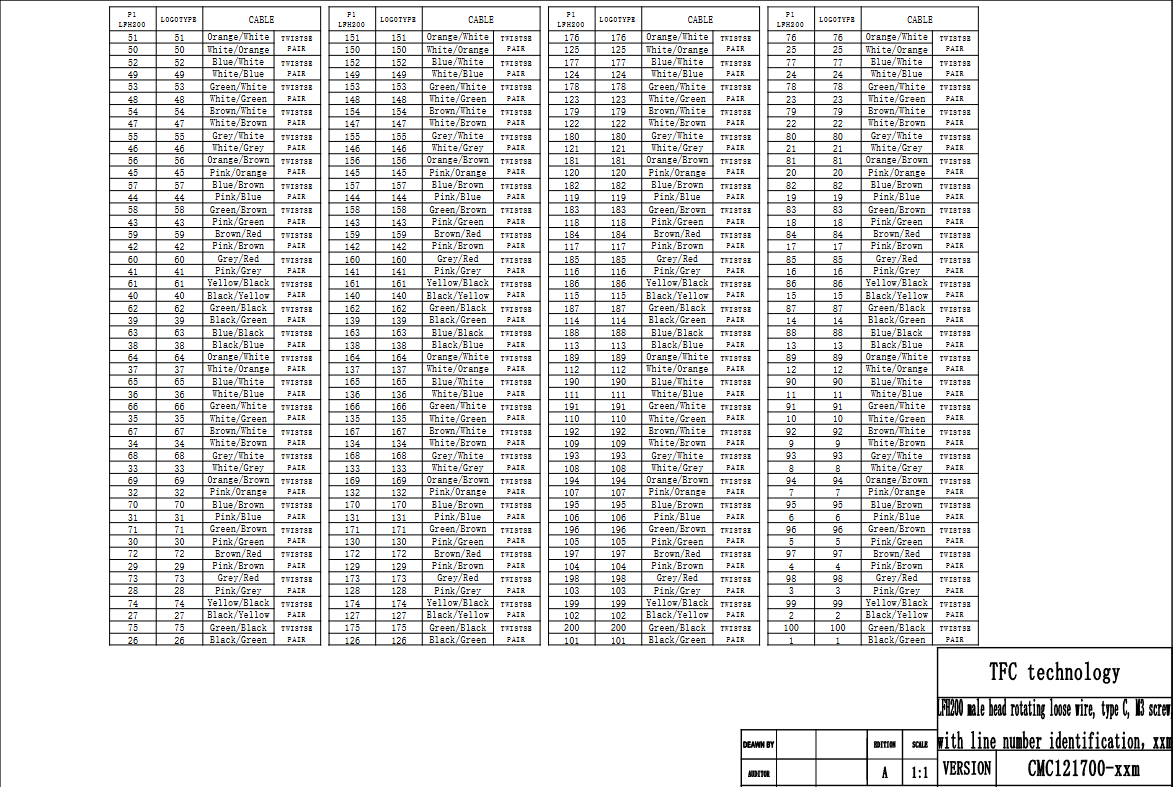

LFH200 male to loose cable sequence table
Advantages of connector adapter wire:
Flexible wiring: Having been adapted to intricate Spaces and various requirements, it can follow the irregular wiring paths and be cut to the length that is necessary, thus, the wiring difficulty is reduced greatly. It is especially good for the inside of small pieces of equipment or the cabinet that is customized.
Strong interface adaptability: Being compatible with a wide range of terminal devices, the end of the loose line does not have fixed connectors, and it can be flexibly dealt with according to the type of connected device interface
Convenient debugging: The equipment research and development and the debugging stages can benefit greatly from the presence of the hardware greatly. In these stages, it is often necessary to temporarily test the functions of different core wires.
About Us
Tengfang Zhongke is a national high-tech enterprise founded in Changsha in 2015, focusing on one-stop interconnection solutions and adhering to the mission of "Making connections simpler". The company integrates R&D, production, and sales, with an independent and complete R&D system. It has established a professional R&D team, focusing on interconnection technology innovation, and deeply engaged in the R&D of high-density, high-speed, and anti-interference interconnection products. It possesses full-process R&D capabilities from scheme design, prototype development to technical verification, continuously breaks through core technical bottlenecks, and provides solid technical support for customized solutions. Its core products cover massive interconnection products, high-density connectors, PXI cable harnesses, etc. It provides customized cable and interconnection solution services, and has passed ISO9001 quality management system and military qualification certification. Its products are widely used in aerospace, national defense and military industry, automotive electronics, semiconductors and other fields.
FAQ
Question: What is the model and product type of the CMC121700 cable?
Answer: The model is CMC121700, the product type is a 200-pin (LFH200 male) adapter cable (Model C), with M3 screws and wire number marking.
Question: What is the connector type of the CMC121700 cable?
Answer: The connector type is LFH200 male.
