TF100-100-Flex
SCSI100 male connector to SCSI100 male connector, shielded multi-functional cable

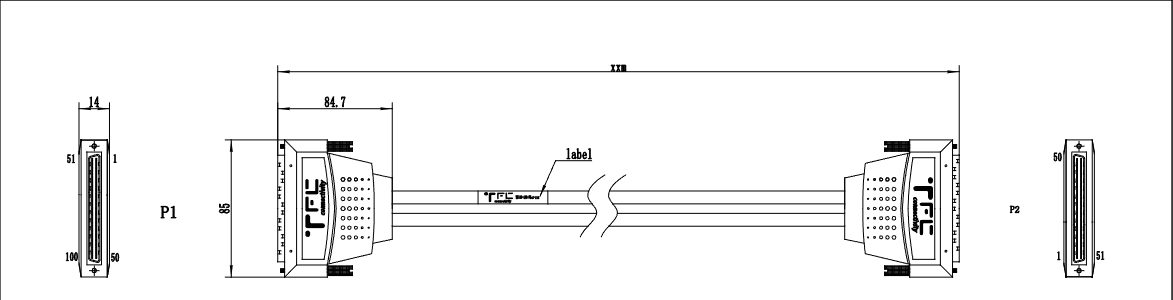

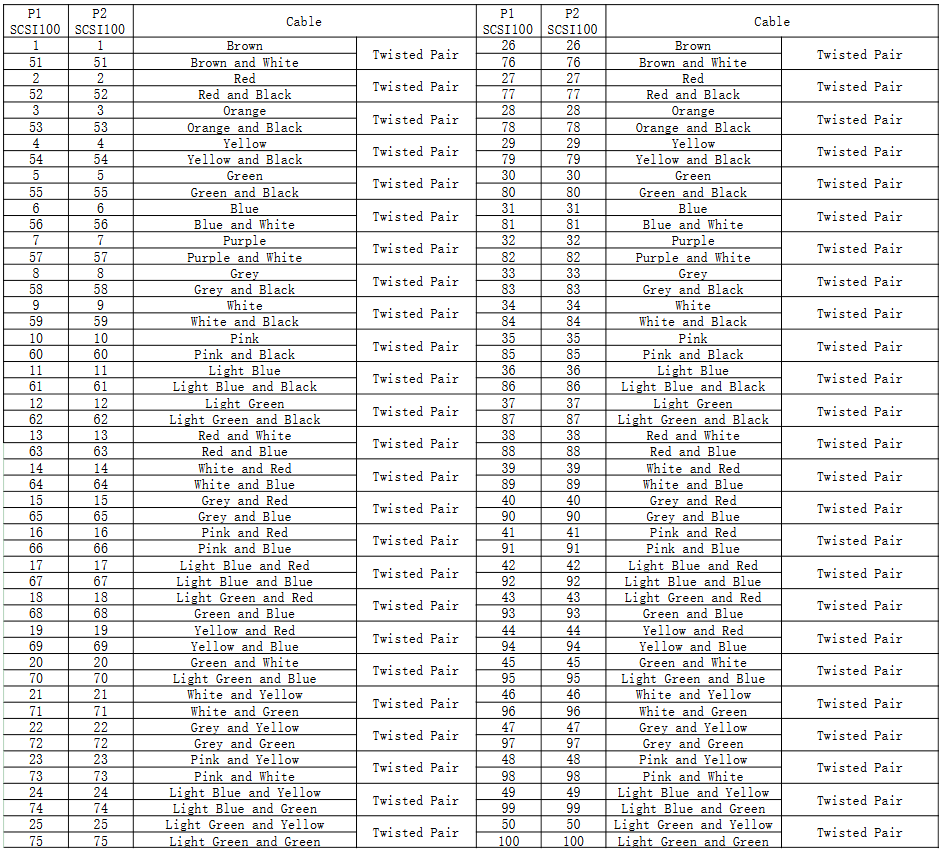

2D diagram and line sequence diagram of SCSI100 male connector to SCSI100 male connector shielded multi-functional cable
Core advantage
1. Signal transmission that is stable and reliable: Gold plating is used for the connector's contacts (the contact resistance is ≤35mΩ), which have good conductivity and are almost non-corrosive, and can keep signal loss at a very low level for a long time, so that the data transmission stability and accuracy are ensured.
2. Great Anti-interference Capability: It employs a **shielded twisted pair** design that can thoroughly prevent the external electromagnetic interference (EMI) since the spaces between the wires are also shielded and protected against the EMI. Thus, it is a perfect choice for industrial automation and other challenging environments in terms of electromagnetic interference.
3. Toughness and good resistance to oxidation: the conductor is made of tinned copper cable that combines excellent conductivity with good antioxidant properties, and thus the lifetime of the wire is extended.
4. Industrial scenarios-friendly: With a current rating of 1A and an operating voltage of 30V, the device meets the energy and data transmission needs of industrial equipment; you can choose between 1m/2m standard lengths, which will fit well with different installation distances. 5. Functional structural design: It is equipped with 2-56 screws for installation tightly; the small outer diameter of the 8.5mm wire makes it easy to bundle wires.

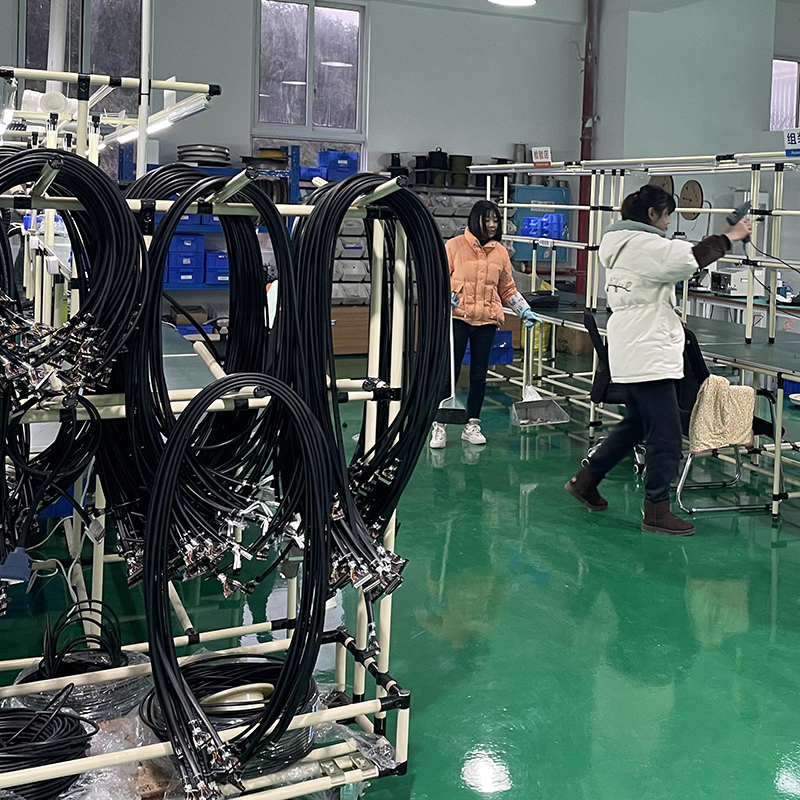

TFC Quality production
TFC harness products adhere to full independent control of the entire chain of design, R&D, testing, and production! From independent R&D of core technologies to rigorous and precise quality testing, from customized design to standardized production, we lay a solid and reliable foundation through full-process independent control. We provide stable and efficient connection support for automotive electronics, aerospace and other high-end fields.
FAQ
Question: What kind of connector is used for the cable TF100-100-Flex-1m?
Answer: The connection is made with a SCSI100 male connector.
Question: What are the operating voltage and the maximum current of the cable?
Answer: The operating voltage is 30V, and the maximum current is 1A.
Question: Is it possible that the wire length is different from the one that is available?
Answer: The length of the cable can be decided by the customers during production.
