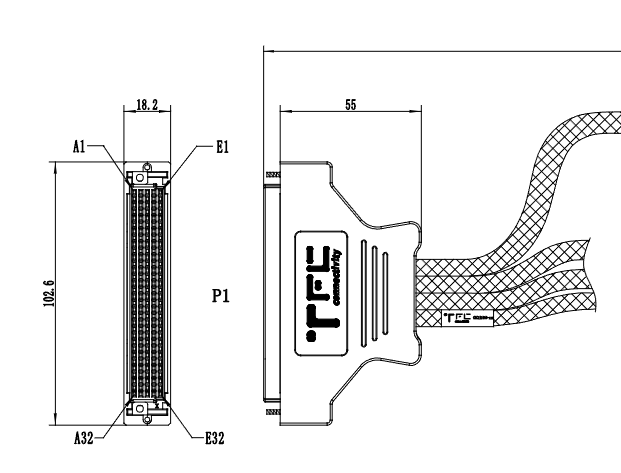

DIN160 Female Adapter Loose Wire

DIN160 female adapter loose wire, with tubular terminal, marked, shielded

Product Parameters

1.


2. Stable‍‌‍‍‌‍‌‍‍‌ low-loss transmission: The connecting contact of the conductor is gold-plated copper, and the contact resistance is ≤35mΩ, which can efficiently reduce the signal/current transmission loss. The conductor of the loose wire end is silver-plated copper, and together with a low wire resistance of 0.3Ω/m (26awg specification), it significantly improves conductivity and transmission stability, thus it is the ideal power source or signal transmission in high-precision scenarios.

3. Interference resilience: The product features "shielding" designed, thus it can basically isolate the external electromagnetic interference (EMI) and also block the interference signals from the area in which the transmission occurs. It is perfect for the places that require absolute purity of the signal, e.g., industrial control and test measurement.

4. Highly environmental flexibility and long service life: The loose wire end is equipped with "high-temperature silver-plated wire", and the conductor insulation material is PTFE (polytetrafluoroethylene, resistant to high temperatures and chemical corrosion). The shell is made of PTE material, which can not only withstand high operating temperatures, but also resist the most common types of environmental corrosion. Besides this, the product is capable of working at a voltage of 250V, the rated voltage at the loose wire end is as high as 600V, thus with a wide range of voltage adaptation, it ensures even more safety and durability during long-term use.

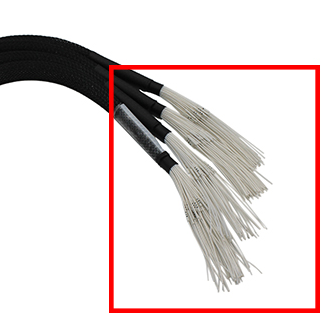

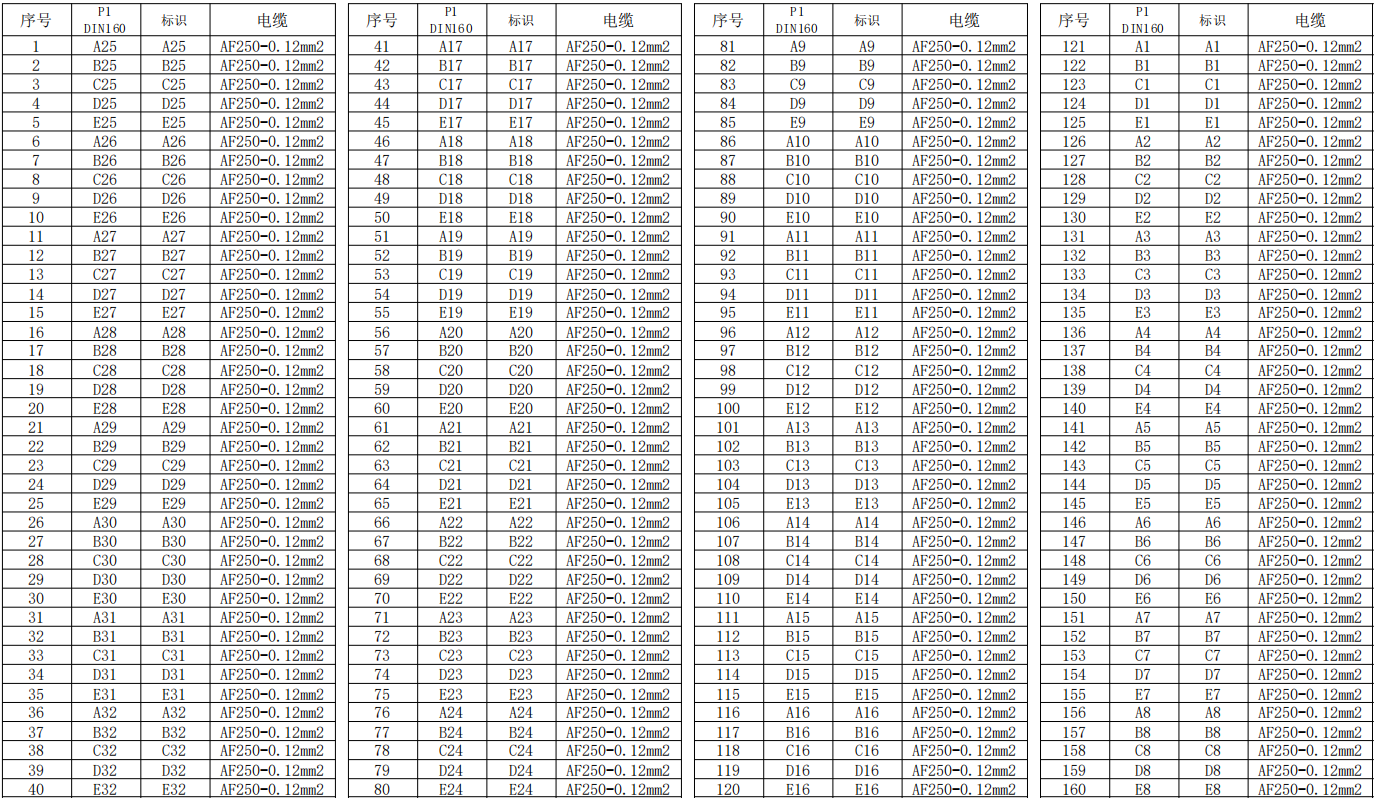

5. More convenient installation and wiring: The loose wire end is equipped with "tubular terminals", thus it can be quickly crimped or connected to devices without any wire end needing further processing, hence the wiring operation steps are saved. Furthermore, the product is "with markings", which can easily identify the functions of different lines and prevent the wrong connections at the time of installation. It is particularly the places where parallel wiring of multiple lines is done that are benefited the most from this, as the construction efficiency is improved.

6. High deployment flexibility: The standard length is offering two choices of 1m and 2m, which can be selected flexibly according to the real installation space without cutting or splicing being required additionally. The loose wire design itself allows for the customization of the wiring length and thus device adaptation, which makes it perfect for non-standard interfaces or special connection ‍‌‍‍‌‍‌‍‍‌requirements.

7.


Changsha-born‍‌‍‍‌‍‌‍‍‌ Tengfang Zhongke is a national high-tech enterprise established in 2015. It is a one-stop provider of interconnection solutions and a promoter of the company mission of 'Making connections simpler'. The company is a fusion of R&D, production, and sales, with a self-reliant and fully-fledged R&D system in place. It has formed the professional R&D team, concentrating on the interconnection technology innovation, and involvement depth of the R&D of high-density, high-speed, and anti-interference interconnection products. It has the whole-process R&D ability from scheme design, prototype development to technical verification, constantly it changes core technical bottlenecks, and offers strong technical support to the customized solutions.

Through its core products, it reaches a wide range of interconnection products, high-density connectors, PXI cable harnesses, etc. The company offers custom cable and interconnection solution services and has been certified for ISO9001 quality management system and military qualification. Their products are the bestsellers in fields like aerospace, national defense and military industry, automotive electronics, and ‍‌‍‍‌‍‌‍‍‌semiconductors.

Q1:‍‌‍‍‌‍‌‍‍‌ What is the model and product type of the CMC121600 cable?

A1: The model is CMC121600. The product type is a DIN160 female adapter cable with tubular terminals, marking and shielding functions, and it is provided with M2.5 fixing screws.

Q2: What are the standard lengths of cables? Is it possible to have a length of the cable that is required?

A2: The standards lengths are 1m and 2m. The required length can be customized according to the customer's ‍‌‍‍‌‍‌‍‍‌request.
