SCSI 100 Male To 2*50 Female

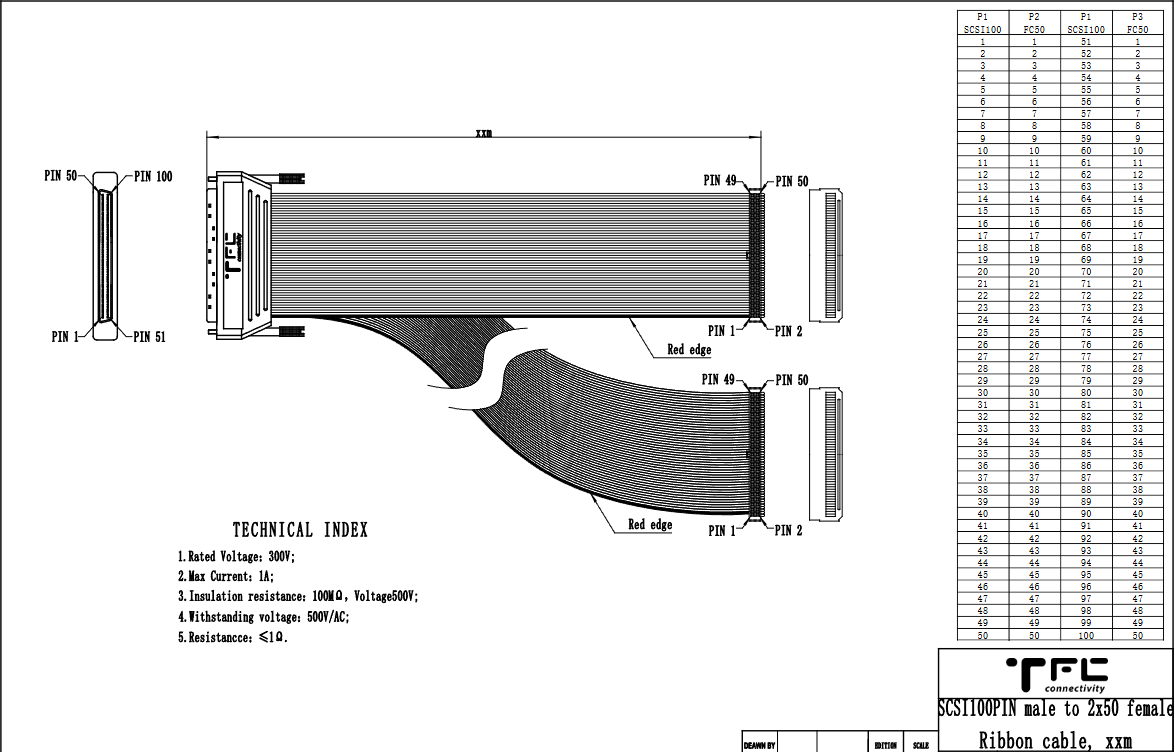

SCSI100 male connector to 2*50 female connector, ribbon cable, 0.5m

Product Parameters

Excellent transmission performance: The main contacting points on the connectors at both ends are gold-plated copper (contact resistance ≤35mΩ), which results in extremely low signal loss. The cable is a UL2651 gray flat cable with tin-plated copper conductors (7/0.127 28awg) built in, and the cable resistance is only 0.4Ω/m (28awg), which has outstanding transmission efficiency and stability.

Strong anti-interference capability: With the shielded design (aluminum foil + braided mesh double shielding), it can effectively suppress electromagnetic interference (EMI) and radio frequency interference (RFI), ensure data integrity during high-frequency signal transmission, and is also appropriate for signal purity demanding scenarios, such as test and measurement, and industrial control.

Wide power coverage: The SCSI100 male end supports 1A/250V, and the FC-50pin female end supports 2A/300V, with a wide voltage compatibility range, which can simultaneously satisfy the transmission of low-power signals and the supply of relatively high-power.

Stable mechanical structure: With 2-56 fixing screws and a metal rear shell, it can be tightly secured on the equipment panel during the installation process, thus having high vibration and impact resistance, cannot be easily loosened after long-term plugging and unplugging, and is thus suitable for frequent use in industrial environments.

Flexible and convenient deployment: There are standard lengths of 1m and 2m. It has a wire diameter of only 0.9mm, so it is thin and easy to bend and can be adapted to high-density wiring in space-constrained places such as cabinets and chassis. It also supports 20AWG–28AWG wire gauge and is compatible with various wire harness crimping requirements.

Outstanding scenario adaptability: As a "PXI-related" and "end-to-end" product, the interface combination of SCSI100 and dual FC-50pin is an ideal solution for multi-channel interconnection of the PXI modular instruments and, in particular, for the centralized wiring of test systems and data acquisition devices.

Tengfang Zhongke is a national high-tech enterprise founded in Changsha in 2015, focusing on one-stop interconnection solutions and adhering to the mission of "Making connections simpler". The company integrates R&D, production, and sales, with an independent and complete R&D system. It has established a professional R&D team, focusing on interconnection technology innovation, and deeply engaged in the R&D of high-density, high-speed, and anti-interference interconnection products. It possesses full-process R&D capabilities from scheme design, prototype development to technical verification, continuously breaks through core technical bottlenecks, and provides solid technical support for customized solutions. Its core products cover massive interconnection products, high-density connectors, PXI cable harnesses, etc. It provides customized cable and interconnection solution services, and has passed ISO9001 quality management system and military qualification certification. Its products are widely used in aerospace, national defense and military industry, automotive electronics, semiconductors and other fields.

Question: What is the model and product type of the CMC121600 cable?

Answer: The model is CMC121600, the product type is DIN160 female adapter cable, tubular terminals, marking and shielding features, and it is provided with M2.5 fixing screws.

Question: What type of wire is used in this cable and does it have a shielding function?

Answer: The cable is a UL2651 gray flat cable with a shielded function.

Question: What are the standard lengths of cables? Is it possible to have the length customized?

Answer: The standard lengths are 1m and 2m. The length can also be customized according to the ‍‌‍‍‌‍‌‍‍‌customer
