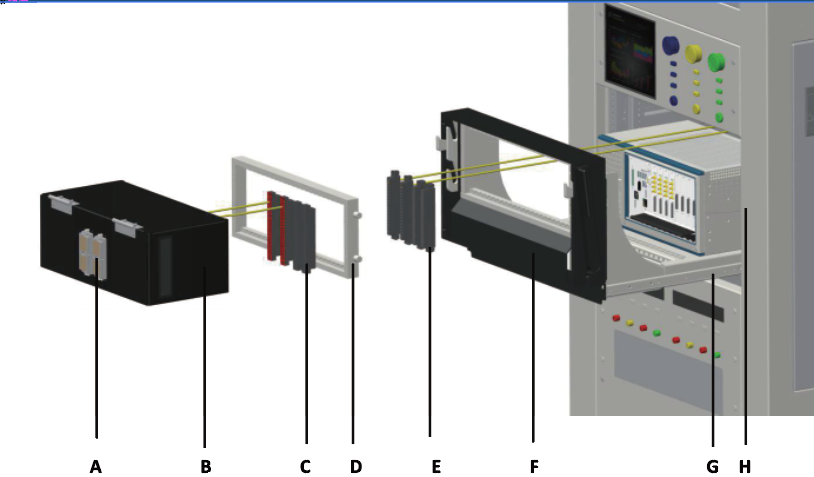

V25 Series High-density platform connector Schematic diagram of product structure
A: CMA Connector B:Box body C:ITA Module D:ITA Framework E: Receiver module
F: Receiver frame G: Slide rail kit H:PXI chassis
V25 Series Mass Interconnect Solutions Advantage
V25 Series High-density hybrid connector Supports integration of various types of signal connections
By unit electrical or power units, signaling or data units, coaxial, optical fiber, pneumatic, and fluid units, etc.
By signal characteristics the components are voltage, current, power, frequency, pressure, rate, etc.
By cable connection method: Selecting the connecting conductor that is suitable for your crimping or soldering operation.
In addition, the decision of the matching module is also being facilitated by the respective pinholes, and the right module is being determined according to the number of signals.
Product applications of the V25 series high-density platform connectors:
1. It may choose different I/O options for different settings/configurations.
2. Test and measurement equipment: Required for system testing on PX1 and LXI based platforms, e.g., avionics test systems in aerospace and automotive antenna amplifier testing, which are multi-variety and small-batch testing problems.
3. High-end communication equipment: As a result, the device can be employed for 5G base stations, core routers, and data center servers to allow the smooth
FAQ
Q1: How many module bits can the V25 series test connection solution provide and how many signal points can it connect?
A1: The V25 series has a capacity of 25 module bits and can be connected to 5900 signal points.
Q2: How many times can the plug-and-pull service life of the V25 series products reach?
A2: The V25 series products are capable of plugging and unplugging over 20,000 times.
Q3: What are the advantages of the V25 series products in terms of installation?
A3: The V25 series is a very compact unit and still can give the cabinet a neat look. Most of the standard cabinets are suitable for it and you can install it without any changes. There are more than one installation mode available such as direct installation, hinge installation, and slide rail installation.
Q4: What are the features of the V25 series in terms of compatibility and signal support?
A4: It adopts a standard ITA frame and can be combined with the box connector module of different fixtures. Besides that, it can support six kinds of signal such as common, radio frequency, power supply, pneumatic, thermocouple, and optical fiber.
