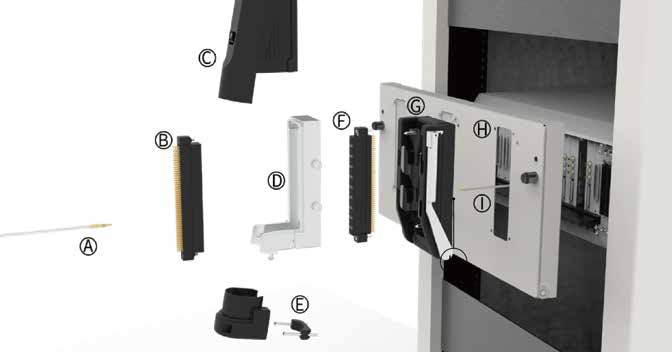

A: ITA jumper ------- An ITA jumper is a kind of wiring which, when plugged, connects the ITA module with a unit that is either an external device or a subsystem. It actively features tinned copper conductors, fast plugging and unplugging capability, and low contact resistance so as to maintain signal transmission free from loss.
B: ITA Module ------- Acts as the main unit for signal link, the module is also designed for functional interchange. The module is mainly responsible for the carry of connecting conductors, i.e., in one single module, there can be a maximum of 192 signal access channels.
C: ITA detachable back cover -------- Made of flame-retardant ABS material (the material meets the requirements of the UL94 V-0 standard), it is used for the protection of the cable from any damage resulting from an accidental contact when the cover is closed.
D: ITA Framework--------------- The layer where the modules are mounted and the aluminium alloy used for the oxidation treatment, defines the characteristics of the structure. One frame is capable of accommodating up to 2 modules with 192 signal channels each.
E: U-shaped cable clamp -------- A cable clamp is a piece of equipment that is specifically designed to fix cables. It achieves the cable fixation by a snap-on mechanism that avoids the terminals from getting loose as a result of cable pulling.
F: Receiver module -------- A signal receiving module that is compatible with the ITA module.
G: V2 receiver -------- The holder that is used to install the receiver module.
H: Vertical hinge mounting frame ------- It allows the device to be installed at a 90-degree angle which is a very convenient feature when mounting on a panel.
I: Receiver jumper ------- One end of the receiver jumper is an ITA which is the partner in wiring while the other end is a PXI test resource which is connected thereby achieving conduction.
Product advantages
A high density connector that can support up to 480 signal points at max.
Compact design: It is only 103mm wide and therefore takes up very little space and can be used for a wide range of applications.
Just one hybrid module can be used for the multiplication of different types of I/O connections. There are, for example, standard signal modules, coaxial signal modules, power signal modules, etc.
Various mounting methods: The range of options also features panel mounting, hinge mounting, and slide rail mounting.
The ITA connector has a slidable rear cover that can be moved to make the connection and wiring easier.
Integration and maintenance are done in no time and very easily.
The connector mating cycle count is guaranteed to be more than 20,000.
Supports integration of various types of signal connections
By type, we can list them as: power supply, signal, data, coaxial, optical fiber, pneumatic, fluid.
By characteristics one can distinguish the following categories: voltage, current, power, frequency, pressure, rate.
Cable connection consideration: Choose the appropriate conductor for crimping/welding.
By pinhole: Choose the corresponding modules according to the number of signals.
Application scenarios
The V2 series is a densely packed and extremely reliable large-scale interconnection solution connection system which is specifically developed for the application scenarios like aerospace, industrial control, rail transit, medical equipment, and communication base stations. This is a large-scale interconnection solution capable of achieving centralized management and stable transmission of various signals including power, signals, data, coaxial, and optical fibers simultaneously. Due to its small size and flexible adjustment, It is the best solution for signal connection in the field of the limited space.
FAQ
Q1: What functionalities differ the most in primary connectors of the massive interconnection rack panel series?
A1: Fundamentally, the main difference between these is the number of modules carried and the signal connection capacity. You can go from V2 (2 modules / 480 channels) to V6 (6 modules / 1440 signal points) to V10 (10 modules / 2400 signal points) to V10X (15 mixed slots / 3200 signal points), etc., depending on the available space and signal requirements.
Q2: What criteria should be considered when selecting the tool accessories?
A2: One must take into consideration the matching of a pinhole module and a frame model that has been already selected. The core work is carried out by the protective covers (V2 ITA protective cover, receiver protective cover), box bodies, vertical hinge installation frames, etc. There is also a range of products for the installation steps such as crimping pliers, needle retraction devices, stress plates, and so on.
