J599MT(GYM) series high-density MT connector Main parameters
Product Parameters
| Mechanical Properties | Mechanical Life | 500 mating cycles |
| Shock | Acceleration 490m/s², duration 11ms | |
| Vibration | 10Hz~2000Hz power spectral density 0.06G²/Hz | |
| Environmental Performance | Temperature Range: | -45℃-+85℃ |
| Salt Spray | K-class: 500h F-class: 48h W-class: 500h MW-class: 192h (acidic atmosphere) | |
| Optical Performance | Insertion Loss | ≤0.6dB |
J599MT(GYM) series high-density optical fiber connectors Product features
1. The high-density MT connector series with 12-core, 24-core and 48-core MT contacts is a development of the GJB599III series. It is an environmentally resistant high-density circular optical fiber connector.
2. The three-level guidance and positioning is one of the features that this device uses, also five-key recognition, anti-misinsertion, anti-diagonal insertion, and anti-blind insertion, etc. features are included.
3. Besides metal, the shell of this high-density optical fiber connector can be made of other different materials and coated with various coatings to satisfy different environment conditions.
About Us

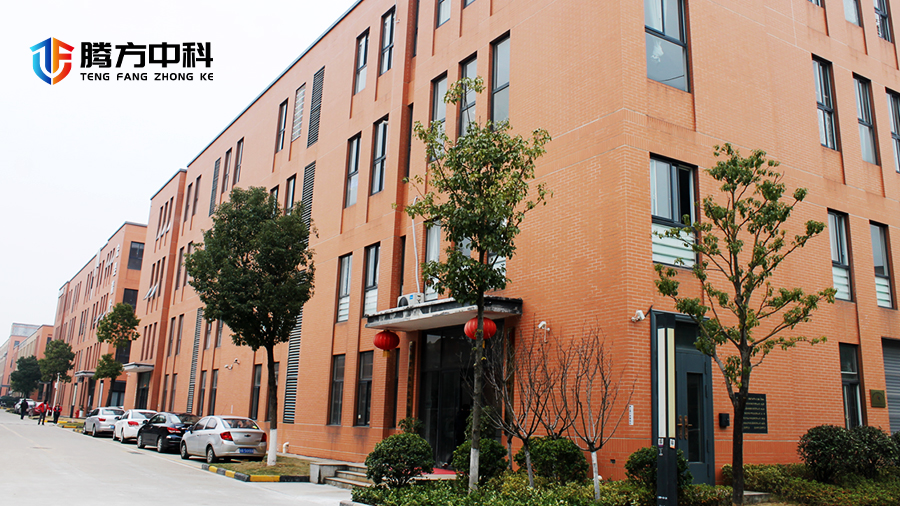

Tengfang Zhongke was established in 2015 and is headquartered in Changsha, Hunan. The company has a more than 6,000 square meter standard workshop and is committed to providing customers with high-performance component products and solutions while operating under the motto "Making every connection more reliable, making every piece of data more accurate". The company operates three business divisions: Instrumentation, Connectors, and Sensors. It is a national high-tech enterprise integrating R&D, production, testing, and sales and its core areas cover signal connection technology, signal conditioning technology, signal switching technology, and signal detection technology.
FAQ
Q1: What are the main principles for the core design of the J599MT (GYM) series optical fiber connectors?
A1: The main design principles for the core of the GJB599MT series fiber optic connectors have been derived from GJB599III series. It is a high-density circular fiber optic connector, which is environmentally resistant and is a perfect solution for situations where the reliability of the connection is necessary.
Q2: What is the working temperature range for the product? Also, how long is the salt spray test?
A2: The device can work under temperatures that range from -45 ℃ to +85℃. The salt spray test time for categories is determined as follows: class K 500 hours, class F 48 hours, class W 500 hours, and class MW 192 hours (in acidic atmospheric environments).
Q3: What is the value of the insertion loss? Is the cover able to work in different places?
A3: The insertion loss is less than or equal to 0.6dB which is the main support for the signal transmission process to be of high quality; The external casing can be fabricated from various types of materials and can be painted, thus, it can meet different environmental demands.
