196-Channel PXIe Multiplexer Switch Module

Ultimate Flexibility for Automated Test Systems

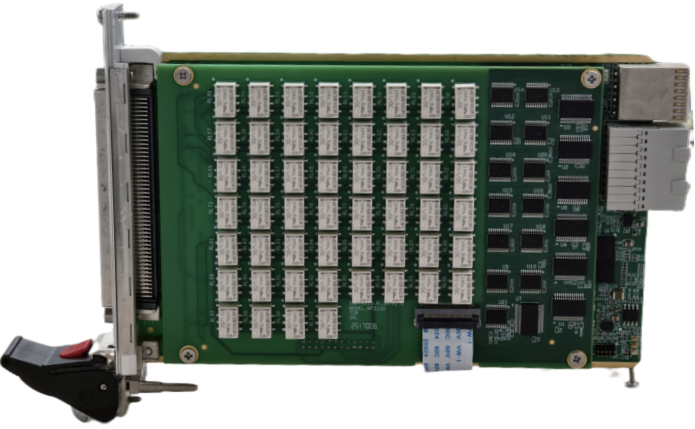

The TF85150 PXIe Multiplexer Switch Modulerepresents the pinnacle of switching technology, which delivers unprecedented channel density and configuration flexibility for modern automated test environments. This advanced 196-channel Multiplexersupports three distinct operational modes-single-line 196-channel, dual-line 98-channel, and dual-line 95-channel topologies-providing engineers with unparalleled adaptability for diverse testing scenarios. Being a High-Density PXIe Switch, the device offers a convenient way to connect test sources to multiple devices under test, and at the same time, it keeps high signal integrity.
Reliability and performance were some of the major considerations when building this advanced Automated Test Multiplexerwhich employs cutting-edge latching relay technology that brings about low power consumption and fast switching speeds of 1ms. The module's 18MHz bandwidth is also sufficient to ensure stable signal transmission for audio testing, medium-frequency applications, and digital bus switching. That makes it the perfect fit for semiconductor validation, integrated circuit testing, and electronic product verification. Besides, the flexible 1 or 2 Wire PXIe configuration user capability means that users can tailor to either high-channel-count single-ended measurements or differential signal routing requirements.

• 196 independent channels in single-line configuration

• 98/95 channels in dual-line differential modes

• 18MHz operational bandwidth for signal integrity

• 1ms fast switching speed with latching relays

• 200-pin high-density front panel connector

• Built-in relay usage counter for predictive maintenance

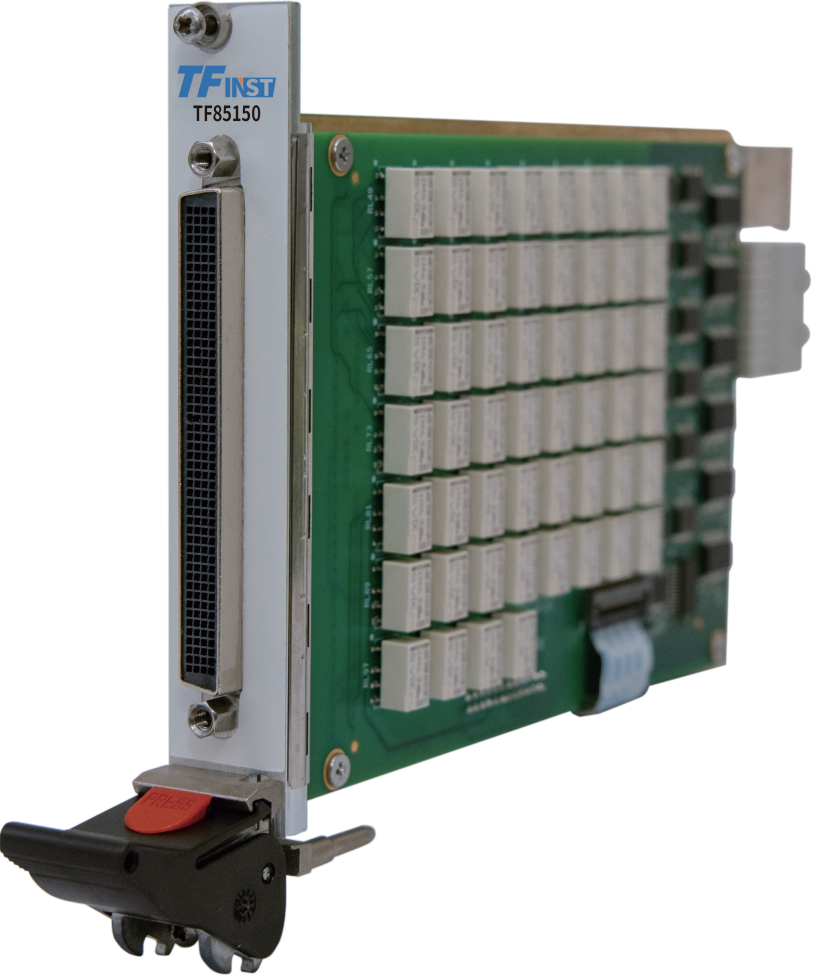

The compact 3U 4HP PXIe Multiplexer Switch Module design maximizes rack space utilization while providing full access to all channels through a single, robust connector interface. This 196 Channel Multiplexer is specifically engineered for integration into sophisticated Automated Test Multiplexer systems, offering compatibility with both Windows and Linux operating environments. The included VISA-based DLL drivers facilitate seamless secondary development and custom test application implementation.

• Semiconductor automatic test equipment (ATE)

• Integrated circuit performance verification

• Wafer-level testing and validation

• Electronic product electrical parameter testing

• Multi-device functional verification systems

       196 Channel                                                 98 Channel                                          95 Channel

    The functions and appearance of the TF85150 Multiplexer Switch Series can be flexibly customized according to user requirements to meet the needs of different applications.

    Each customized product of the TF85150 Multiplexer Switch Series will correspond to an independently filed product model. This independently filed product model for each customized product of the TF85150 Multiplexer Switch Series facilitates users to place orders for the customized product of the TF85150 Multiplexer Switch Series at any time. When users have specific functional or appearance needs that go beyond the standard specifications of the TF85150 Multiplexer Switch Series, the TF85150 Multiplexer Switch Series can be adjusted through customization to fit those needs.

    The independent product model filing for each customized variant of the TF85150 Multiplexer Switch Series also ensures that users can easily identify and reorder the exact customized product of the TF85150 Multiplexer Switch Series whenever required.

The High Density PXIe Switch incorporates intelligent lifecycle management through its built-in relay operation counter, enabling predictive maintenance planning and minimizing unexpected downtime in production test environments. The 1 or 2 Wire PXIe flexibility ensures that engineers can reconfigure their test systems for optimal performance across different measurement types without requiring hardware modifications.

Whether deployed in R&D laboratories, manufacturing test floors, or quality assurance facilities, the TF85150 establishes new benchmarks for PXIe Multiplexer Switch Module performance. Experience the perfect combination of channel density, switching speed, and configuration versatility with this industry-leading 196 Channel Multiplexer - the intelligent choice for engineers designing next-generation automated test systems that demand reliability, precision, and scalability.

1. Q: What's the main advantage of the three configurable modes?
    A: The switchable modes (196×1, 98×2, 95×2) provide exceptional flexibility, allowing the same module to handle both high-channel-count single-ended measurements and differential signal routing without hardware changes.

2. Q: How does the relay counting function benefit my test system?
    A: The built-in relay usage counter enables predictive maintenance by tracking relay cycles, allowing you to replace modules before failure and minimize unexpected downtime in automated test equipment.
