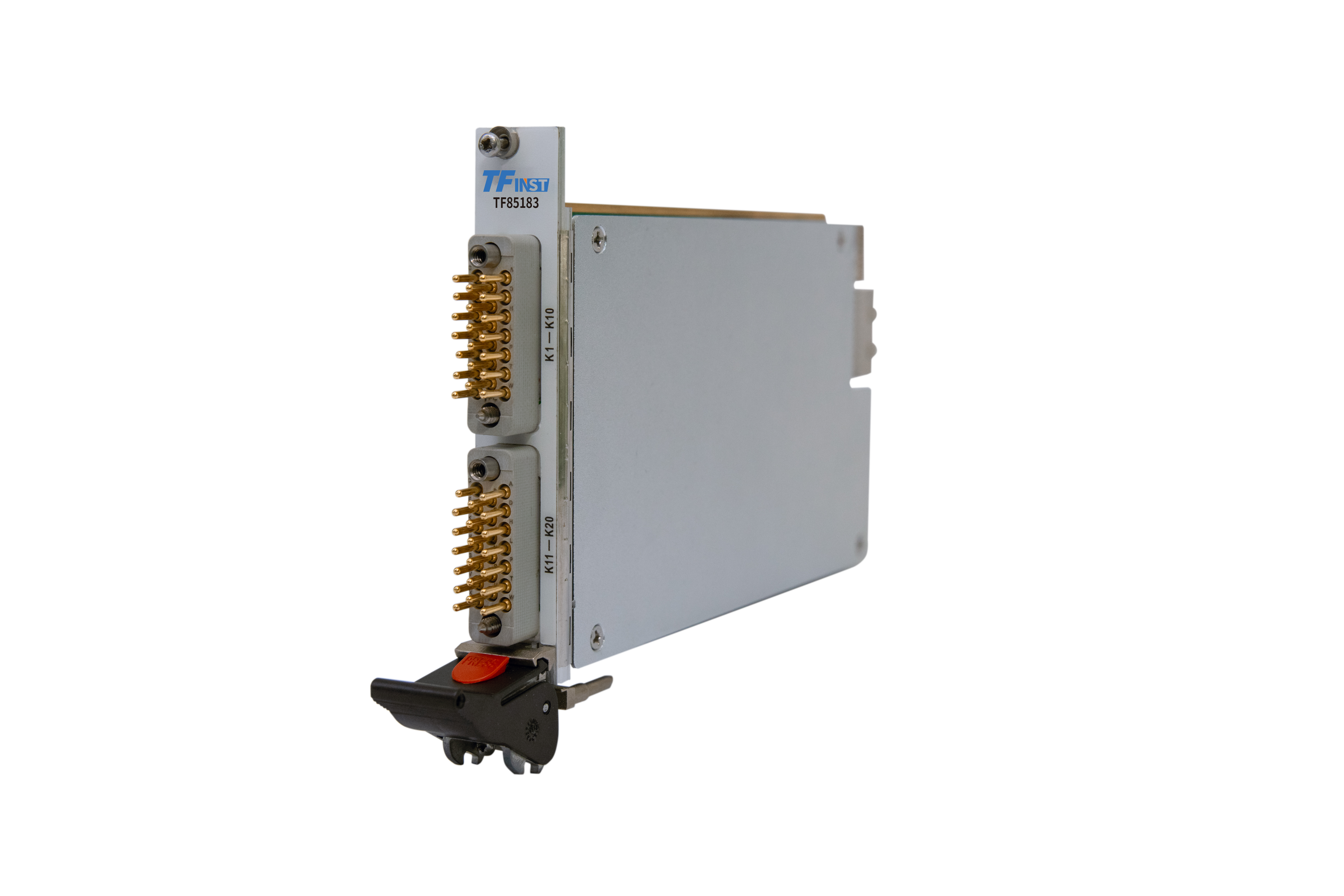

20-Channel High Power PXIe Switch Module - Engineered for Demanding Test Applications

The TF85183 high power PXIe switch sets a new level in current capacity, resulting in an outstanding performance of power-intensive test environments. This sturdy 20 Channel Relay Module offers a 300W power capability for each channel and 10A current, which makes this Power Switching Module the perfect option for power-electronics testing, semiconductor validation, and industrial automation system applications.

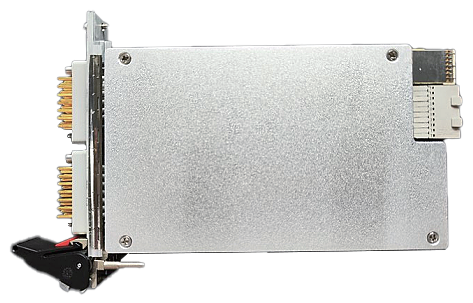

The TF85183 high-performance SPST PXIe module is packed with heavy-duty power electromagnetic industrial relays which guarantee accurate working in the toughest conditions. With extremely low on-resistance that is less than 50mΩ, the advanced Semiconductor Test Switch can significantly reduce power loss and voltage drops, thus it can give an accurate result when measuring, for instance, power device characterization and motor controller validation, which are high-current applications.

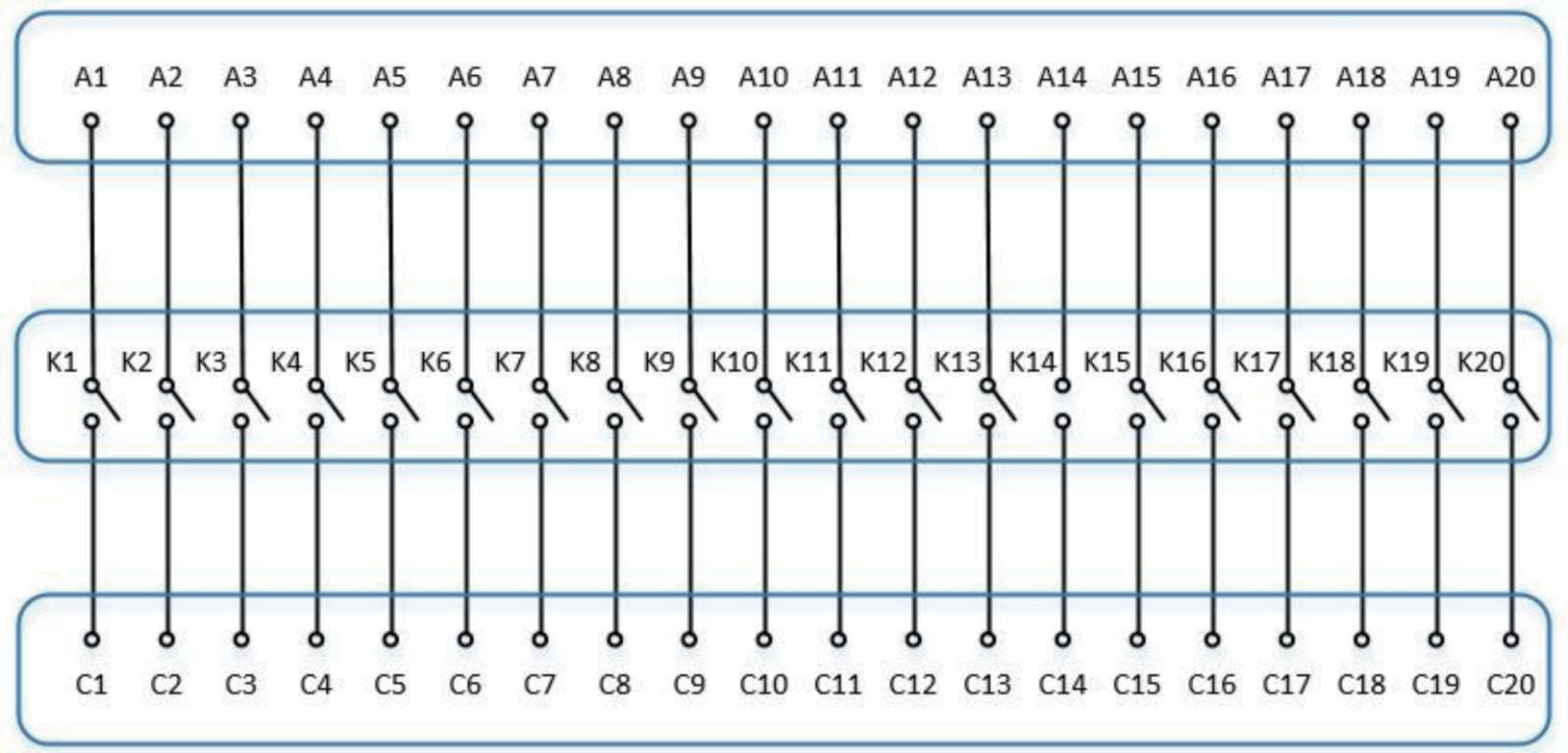

Program-controlled automation of the module intends to get rid of manual cable changes, which can significantly shorten test sequences in production environments. 20 high power PXIe switch channels can perform bidirectional signal routing, which allows the experimenter to connect both test sources and devices under the test with a great deal of ease. It is a 3U PXIe compact design with cable interfaces on the front panel; therefore, you can integrate it in the limited space while still keeping full Power Switching Module capabilities.

• Up to 300W/2500VA per channel power capacity

• Continuous current of 10A rating

• <50mΩ on-resistance resulting in low power loss

• Maximum isolation voltage of 400VDC

• Relay operation time is usually 10ms

The TF85183 is not only a specialized Semiconductor Test Switch for wafer-level testing, integrated circuit verification, and power device characterization; it also takes care of the sturdy construction and thermal management of the panel, which gives the user the assurance that the module will perform at a constant level throughout the long test cycles. On the other hand, compatibility with Windows/Linux systems and drivers based on VISA makes it very easy for users to integrate the module with their automated test equipment.

Whether it is next-generation power semiconductors development or high-current electronic systems validation, the TF85183 20 Channel Relay Module will be there, providing you with reliability, accuracy, and power handling capabilities essential for test applications where real challenges arise. With this industrial-grade SPST PXIe Module you won’t have to make any compromises- it is the ultimate solution for your high-power switching requirements in advanced test & measurement systems.

• The multiplexer is used for integrated circuit testing, providing reliable channel switching support for integrated circuit performance verification.

• The multiplexer is used in wafer-level testing; thus, test equipment and wafer test points can be efficiently connected during wafer-level verification.

• The multiplexer can be used with semiconductor automatic test equipment (ATE) as a key channel module in semiconductor automatic test equipment (ATE) systems.

• The multiplexer plays an essential role in electronic product electrical performance testing; thus, accurate electronic product electrical parameters measurement through stable channel control is possible.

• The multiplexer is the foundation to the above-mentioned core application scenarios and can completely take on the high-demand channel management requirements in different electronic testing fields.

The functions and appearance of the TF85183 high power switch series products can be announced freely according to the customer's needs to suit the situations of various applications. Every single customized product of the TF85183 high power switch series products will be corresponded to a gisting product model that is separately filed, thus, it is convenient for users to place an order for the customized product of the TF85183 high power switch series products anytime they want.

Q: What power levels can this module handle for each channel?

A:Each channel supports up to 300W/2500VA switching power with 10A current and 400VDC maximum voltage, which is specifically designed for high-power semiconductor testing and industrial applications.

Q: How does the low on-resistance affect power testing?

A:The on-resistance of <50mΩ causes nearly zero power loss and voltage drop across the switches, thus the power delivery and measurement will be accurate in case of high-current applications.

Q: What's the benefit of power electromagnetic relays?

A:Such relays are equipped with the ability to switch high-power loads robustly and are suitable for high-power loads. They can work reliably in tough test environments where relays usually fail.

Q: In which way does program control enhance test efficiency?

A:Software-controlled switching allows the automatic performance of test sequences without cable changes that have to be done manually. This can quite significantly cut the time of setup and, at the same time increase throughput in production testing.

Q: What are some applications that require 300W per channel capability?

A:The power semiconductor validation, motor controller testing, and the verification of high-current systems are cases where the 300W per channel capability of the new power rating can be justified. Here, the conventional switches cannot handle the power ‍‌‍‍‌‍‌‍‍‌load.
