MEMS Low Range Three Axis Vibration Sensor

Model:JSVM3T0
Category:MEMS Triaxial Accelerometer Sensor
Customization:Range±10g，±20g，±40g

• 6061 aluminum alloy body • Amplitude-frequency response: 2000 Hz • Shock resistance: 2000g • Selectable measurement ranges: ±10g to ±40g • MEMS variable capacitance technology • Ultra-lightweight: 10g

Product Overview

JSVM3T0 Triaxial Vibration Sensor utilizes MEMS variable capacitance technology and is housed in a 6061 aluminum alloy monolithic structure that is machined with high precision. Its internally 3D-integrated sensing element brevettes a superior frequency response, linearity improvement, stability, and long-term reliability in harsh environments.

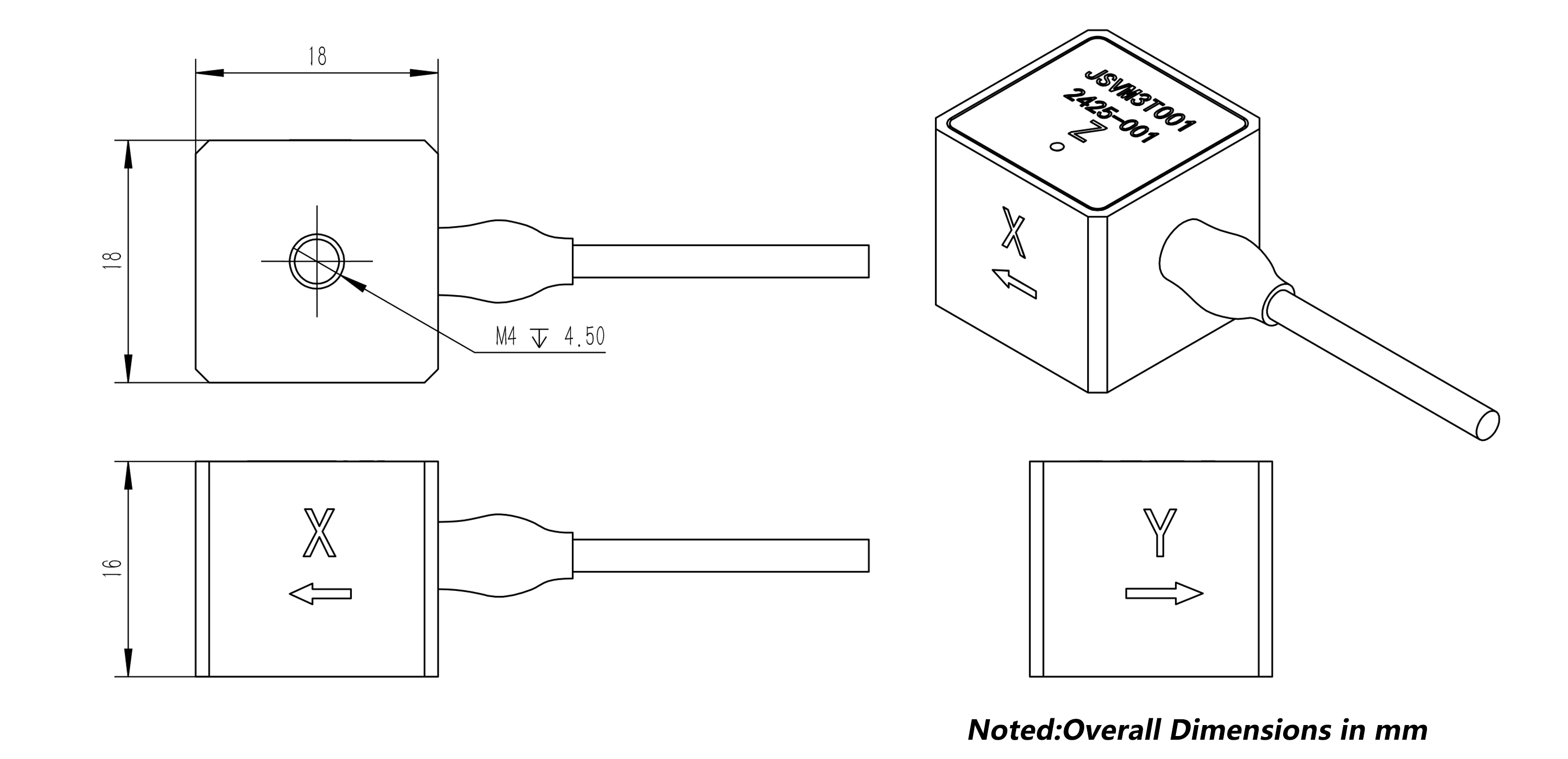

Product Dimensions

MEMS Sensor

Product Electrical Interface

Wiring color	Red	Black/blue	Green	Yellow	White
Wiring Definition	Power positive	Power ground*	X-axis output	Y-axis output	Z-axis output

* Note: Reference ground for signal measurement

Performance Specifications

The JSVM3T0 sensor is a triaxial vibration sensor.. Its key performance specifications are listed as below.

Unless otherwise specified, all testing was conducted under the following conditions: 12 VDC, 25°C, 50% R.H., and 1 standard atmosphere.

Performance	JSVM3T0-10	JSVM3T0-20		JSVM3T0-40		Unit
Range	±10	±20		±40		g
Sensitivity@0hz	200	100		50		mV/g
Amplitude-frequency response（3dB）	0~2000					Hz
Lateral sensitivity	≤2.0	≤2.0		≤2.0		%(typ)
Linearity	＜1	＜1		＜2		％FS(max)
Resolution	0.1‰	0.1‰		0.2‰		——
Sensitivity temperature coefficient	300 ppm/℃
Power consumption current	5mA（Typical values）/ 5mA（Maximum）
Noise spectral density	100ug/√Hz		100ug/√Hz		150ug/√Hz
Excitation voltage	Typical voltage：+12VDC；Power supply range：+10VDC～+30VDC
Material	6061 aluminum alloy housing
Impact resistance	Any axis 2000g
Installation	M4 Screw installation/gluing
Insulation isolation	Shell conductivity
Weight	40g
Temperature range	Operating temperature: -40℃~+85℃，Storage temperature: -40℃~+125℃
Output format	Standard Output: 0-5V voltage output Customizable Options: Current loop, RS232, RS422, RS485, and CAN bus interfaces available upon request

FAQ

1. Q: What is the main application focus of this 2000Hz bandwidth sensor?
A: This sensor is designed mainly for machinery health monitoring, where most characteristic vibration frequencies (e.g., those generated from bearings, gears, and unbalance) are typically below 2 kHz, and it provides a cost-effective solution for continuous monitoring.
2. Q: Why choose 6061 aluminum alloy instead of stainless steel?
A: Aluminum has good corrosion resistance and is cheaper than stainless steel, which is why it is a perfect material for non-aggressive industrial environments, while the system is kept at a budget level.
3. Q: What's the advantage of the default 0-5V voltage output?
A: A 0-5V output can be directly interfaced with most of the PLCs and data acquisition systems without any signal conditioning, which in turn makes the system integration simpler and the total cost lower.
4. Q: The case is insulated - why does this matter?
A: When an insulated case is used for mounting on a conductive surface, ground loops are avoided, and thus the electrical noise can be completely eliminated, which means that signal acquisition is now reliable even in the presence of complex electrical environments.
5. Q: With optional communication outputs available, which should I choose?
A: For long-distance runs in noisy environments, the 4-20mA current output is an excellent choice. To use a multi-sensor network for automotive/industrial applications, choose RS-485/CAN, which are digital communication ‍‌‍‍‌‍‌‍‍‌protocols.
